air fuel and ignition

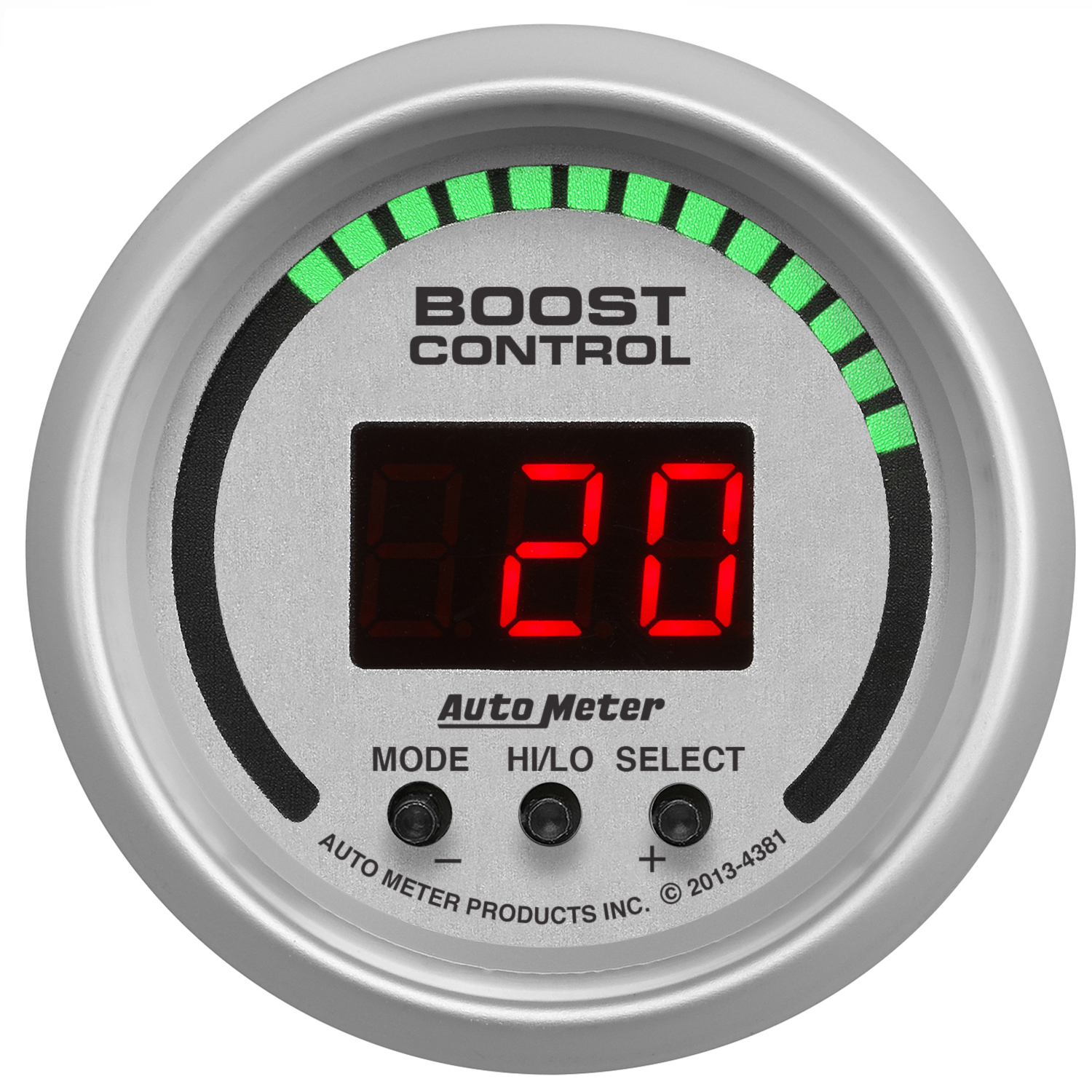

2-1/16" BOOST CONTROLLER, 30 IN HG/30 PSI, ULTRA-LITE
$622
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
Offering an unparalleled feature set the AutoMeter Boost Controller redefines what a boost controller should be. In addition to the standard hi/lo mode boost by RPM and boost by gear give you absolute control of your power delivery. Initial setup is is incredibly simple using an intuitive menu and a revolutionary gear capture process. Configurable warnings with peak recall and boost shutdown are standard safety features designed to protect your engine. A scalable display range allows you to tailor resolution to show only the needed range for your application. AutoMeter’s Pro Control output system is equipped to allow electric devices to be controlled at a user defined boost pressure (such as water/meth injection nitrous etc.) as well as Pro-Control input to default to waste gate spring pressure should the need arise. Display pressure in PSI BAR or kPa and easily data log and display with or without realtime barometric compensation. A direct plug wiring harness is included for ease of installation.
Specifications
| WIDTH | 5.5 |
|---|---|
| HEIGHT | 5.5 |
| LENGTH | 5.25 |
| PROP65 | Yes |
| WEIGHT | 1.3 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Bezel Color:Brushed Aluminum;Bezel Style:Super Bezel;Cross Sell:4397 2204 2236 2121 4397 4371;Cup/Hole Size - Metric - MM:52.4mm MM;Cup/Hole Size - Standard - IN:2-1/16" IN;Dial Color:Silver;Gauge Type:Boost Controller;Includes Adapter/Fitting:1/8" NPT Male to 1/8" compression fitting 1/8" NPT Female to 1/8" compression fitting 1/8" NPT to 1/4" NPT bushing T - Fitting;Includes Mounting Hardware:2230;Includes Sensor Unit:2249;Includes Tubing:10 ft. nylon tubing;Lens Style:Flat Clear;Lighting Color:Red LED/Red Yellow Green Segments;Lighting Type:Digital LED;Movement:Digital;Outer Bezel Diameter:2-1/4" IN;Outer Bezel Diameter - Standard:2-1/16" IN;Prop 65 (C R or CR):C;Prop 65 - Warning Label:ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png;Prop 65 Yes/No:Yes;Range:30 IN HG/30 PSI;Related Item:2160 BEX-1500 EP-800 0424XL 0449XL 0447LXL;Series:ULTRA-LITE;Size - Metric - MM:52.4mm MM;Size - Standard - IN:2-1/16" IN;Title:2-1/16" BOOST CONTROLLER 30 IN HG/30 PSI ULTRA-LITE;Upsell:4397 2204 2236 2121 4397 4371 |
| PCDB CATEGORY | Air and Fuel Delivery |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Turbocharger Electronic Boost Controller |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Auto Meter/2650-1706.pdf |
Datasheet — not yet published
