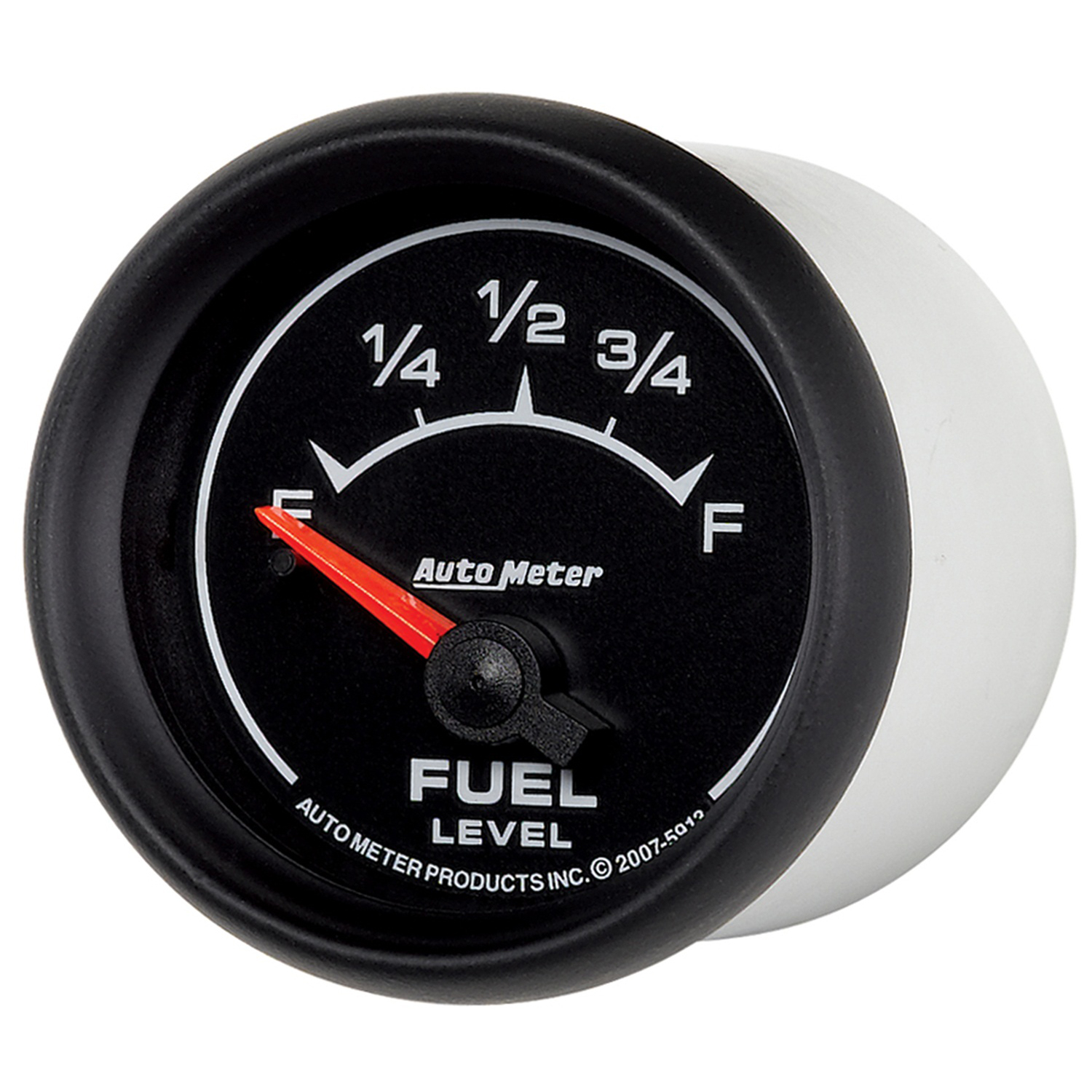

2-1/16" FUEL LEVEL, 0-90 O, GM, SSE, ES
$103
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part
One of the most necessary gauges in a dashboard AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s) 0-30 ohm (early GM) 73-10 ohm (pre 90’s Ford and Chrysler) 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Specifications
| WIDTH | 4.5 |
|---|---|
| HEIGHT | 4.5 |
| LENGTH | 4.75 |
| PROP65 | Yes |
| WEIGHT | 0.5 |
| WARRANTY | 12 Months |
| EMISSIONS | CARB Eligible |
| ATTRIBUTES | Bezel Color:Black;Bezel Style:Super Bezel;Cross Sell:9114 5988 5937 5927 5992 5997;Cup/Hole Size - Metric - MM:52.4mm MM;Cup/Hole Size - Standard - IN:2-1/16" IN;Dial Color:Black;Gauge Type:Fuel Level;Includes Mounting Hardware:2230;Lens Style:Flat Clear;Lighting Color:Red;Lighting Type:LED;Movement:Electric Air-Core;Outer Bezel Diameter:2-1/4" IN;Outer Bezel Diameter - Standard:2-1/16" IN;Pointer Color:Fluorescent Red;Prop 65 (C R or CR):C;Prop 65 - Warning Label:ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png;Prop 65 Yes/No:Yes;Range:0 O Empty / 90 O Full;Related Item:2160 BEX-3000 EP-800;Series:ES;Size - Metric - MM:52.4mm MM;Size - Standard - IN:2-1/16" IN;Title:2-1/16" FUEL LEVEL 0-90 O GM SSE ES;Upsell:9114 5988 5937 5927 5992 5997 |
| PCDB CATEGORY | Body |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Fuel Level Gauge |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Auto Meter/2650-1858.pdf |
