gauges and instruments

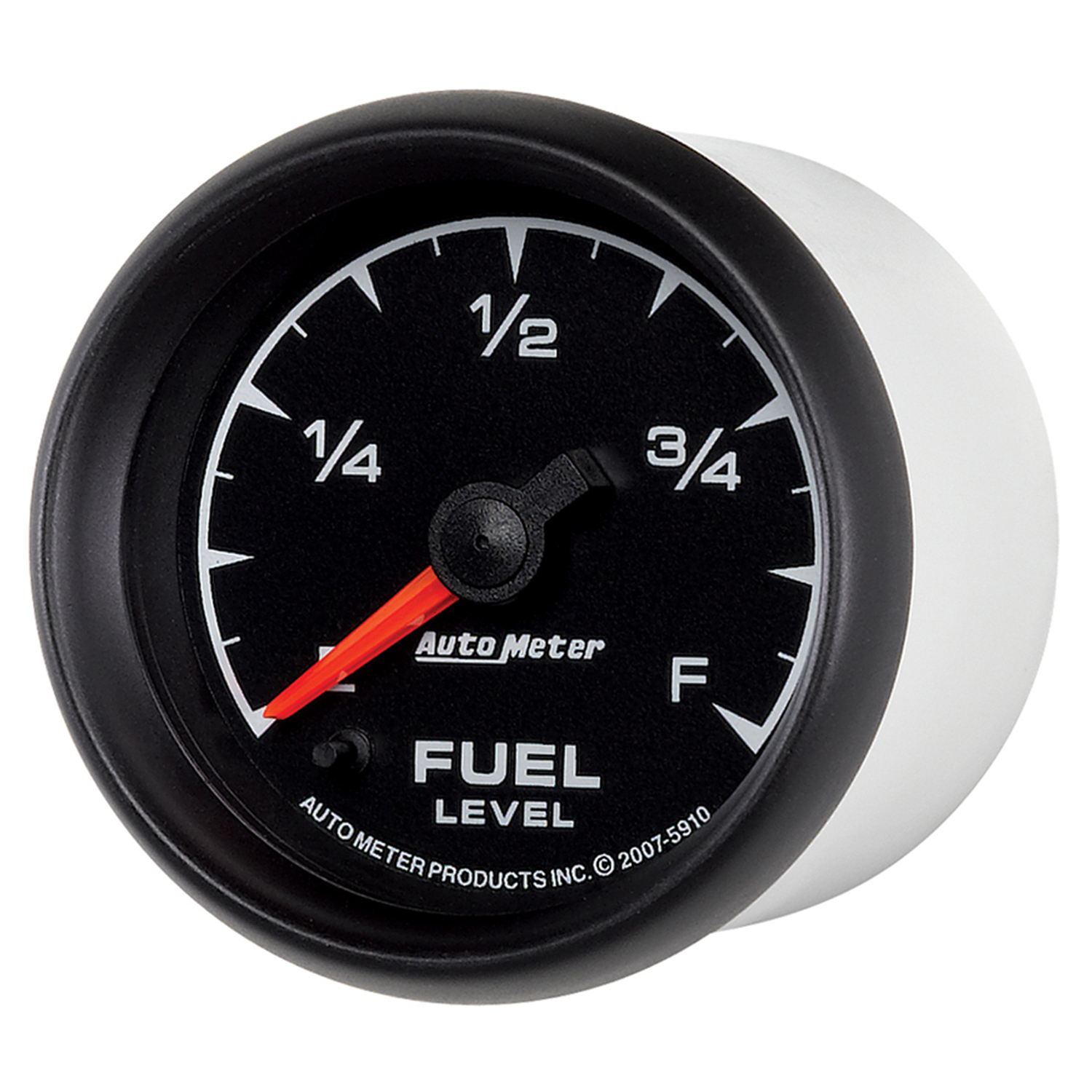

2-1/16" FUEL LEVEL, PROGRAMMABLE 0-280 O, ES
$192
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
Traditionally paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range. With 7 common configurations stored in memory from the factory the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms empty or full to be easily paired. Our “snapshot” programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application there simply isn’t an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
Specifications
| WIDTH | 4.5 |
|---|---|
| HEIGHT | 4.5 |
| LENGTH | 4.75 |
| PROP65 | Yes |
| WEIGHT | 0.5 |
| WARRANTY | 12 Months |
| EMISSIONS | CARB Eligible |
| ATTRIBUTES | Bezel Color:Black;Bezel Style:Super Bezel;Cross Sell:3262 3263 9114 5988 5991 5955;Cup/Hole Size - Metric - MM:52.4mm MM;Cup/Hole Size - Standard - IN:2-1/16" IN;Dial Color:Black;Gauge Type:Fuel Level;Includes Mounting Hardware:2230;Includes Wire Harness:5233;Lens Style:Flat Clear;Lighting Color:Red;Lighting Type:LED;Movement:Electric Digital Stepper Motor;Outer Bezel Diameter:2-1/4" IN;Outer Bezel Diameter - Standard:2-1/16" IN;Pointer Color:Fluorescent Red;Prop 65 (C R or CR):C;Prop 65 - Warning Label:ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png;Prop 65 Yes/No:Yes;Range:Programmable 0-280 O;Related Item:2160 BEX-3000 EP-800;Series:ES;Size - Metric - MM:52.4mm MM;Size - Standard - IN:2-1/16" IN;Title:2-1/16" FUEL LEVEL PROGRAMMABLE 0-280 O ES;Upsell:3262 3263 9114 5988 5991 5955 |
| PCDB CATEGORY | Body |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Fuel Level Gauge |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Auto Meter/2650-1136.pdf |
Datasheet — not yet published
