gauges and instruments

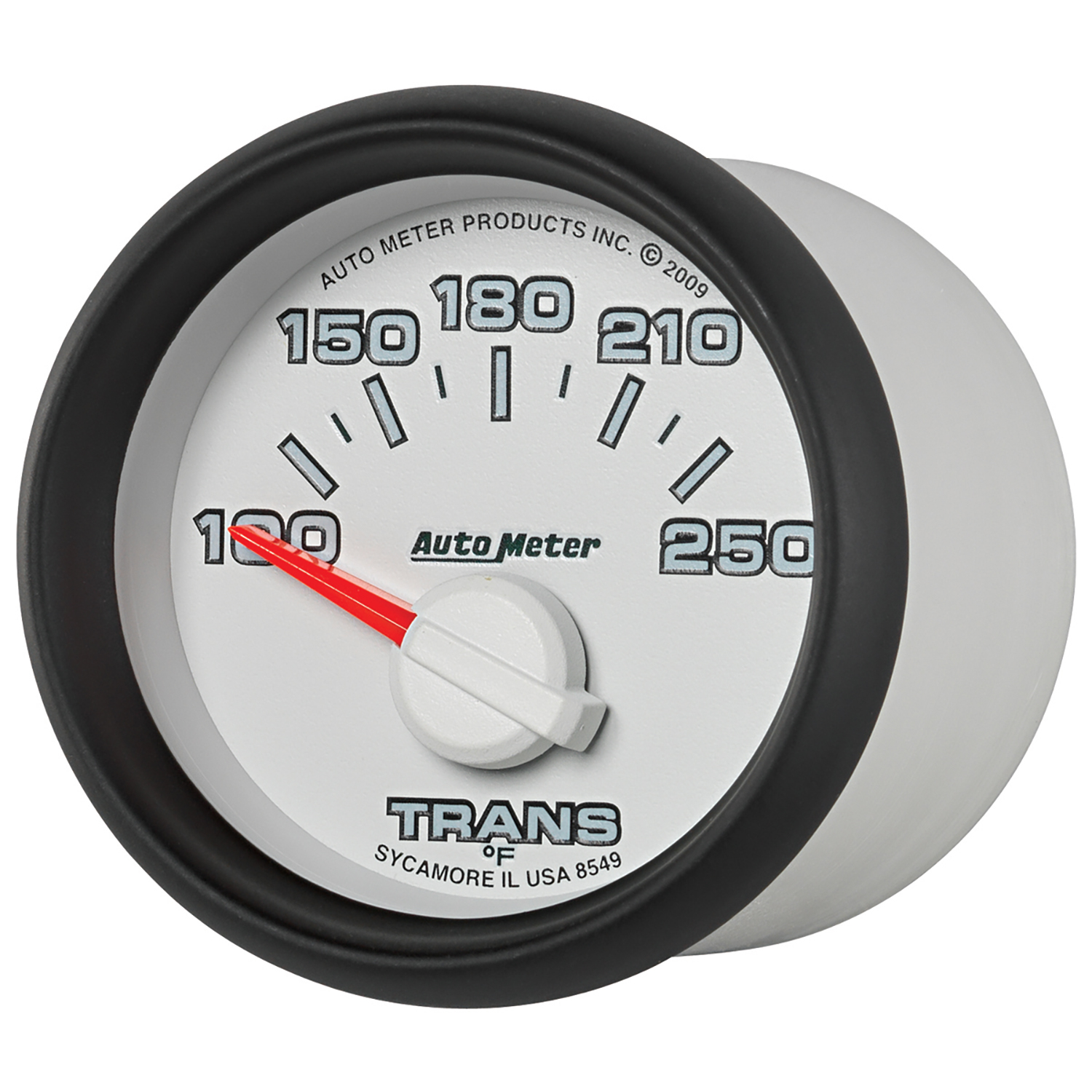

2-1/16" TRANSMISSION TEMPERATURE, 100-250 °F, GEN 3 DODGE FACTORY MATCH
$113
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor AutoMeter’s Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8” NPT temperature sender included to be installed in your transmission transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.
Specifications
| WIDTH | 4.5 |
|---|---|
| HEIGHT | 4.5 |
| LENGTH | 4.75 |
| PROP65 | Yes |
| WEIGHT | 0.6 |
| WARRANTY | 12 Months |
| EMISSIONS | CARB Eligible |
| ATTRIBUTES | Bezel Color:Black;Bezel Style:Super Bezel;Cross Sell:2259 2260 2286 2287 9114 8544;Cup/Hole Size - Metric - MM:52.4mm MM;Cup/Hole Size - Standard - IN:2-1/16" IN;Dial Color:White;Gauge Type:Transmission Temperature;Includes Adapter/Fitting:3/8" NPT and 1/2" NPT adapter fittings;Includes Mounting Hardware:2230;Includes Sensor Unit:2258;Lens Style:Flat Clear;Lighting Color:Green;Lighting Type:LED;Movement:Electric Air-Core;Outer Bezel Diameter:2-1/4" IN;Outer Bezel Diameter - Standard:2-1/16" IN;Pointer Color:Fluorescent Red;Prop 65 (C R or CR):C;Prop 65 - Warning Label:ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png;Prop 65 Yes/No:Yes;Range:100-250 °F;Related Item:2164 BEX-1500 EP-800 0444 0423XL;Series:GEN 3 DODGE FACTORY MATCH;Size - Metric - MM:52.4mm MM;Size - Standard - IN:2-1/16" IN;Title:2-1/16" TRANSMISSION TEMPERATURE 100-250 °F GEN 3 DODGE FACTORY MATCH;Upsell:2259 2260 2286 2287 9114 8544 |
| PCDB CATEGORY | Body |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Automatic Transmission Oil Temperature Gauge |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Auto Meter/2650-1079.pdf |
| VERIFIED FITMENT |
|
Datasheet — not yet published
