gauges and instruments

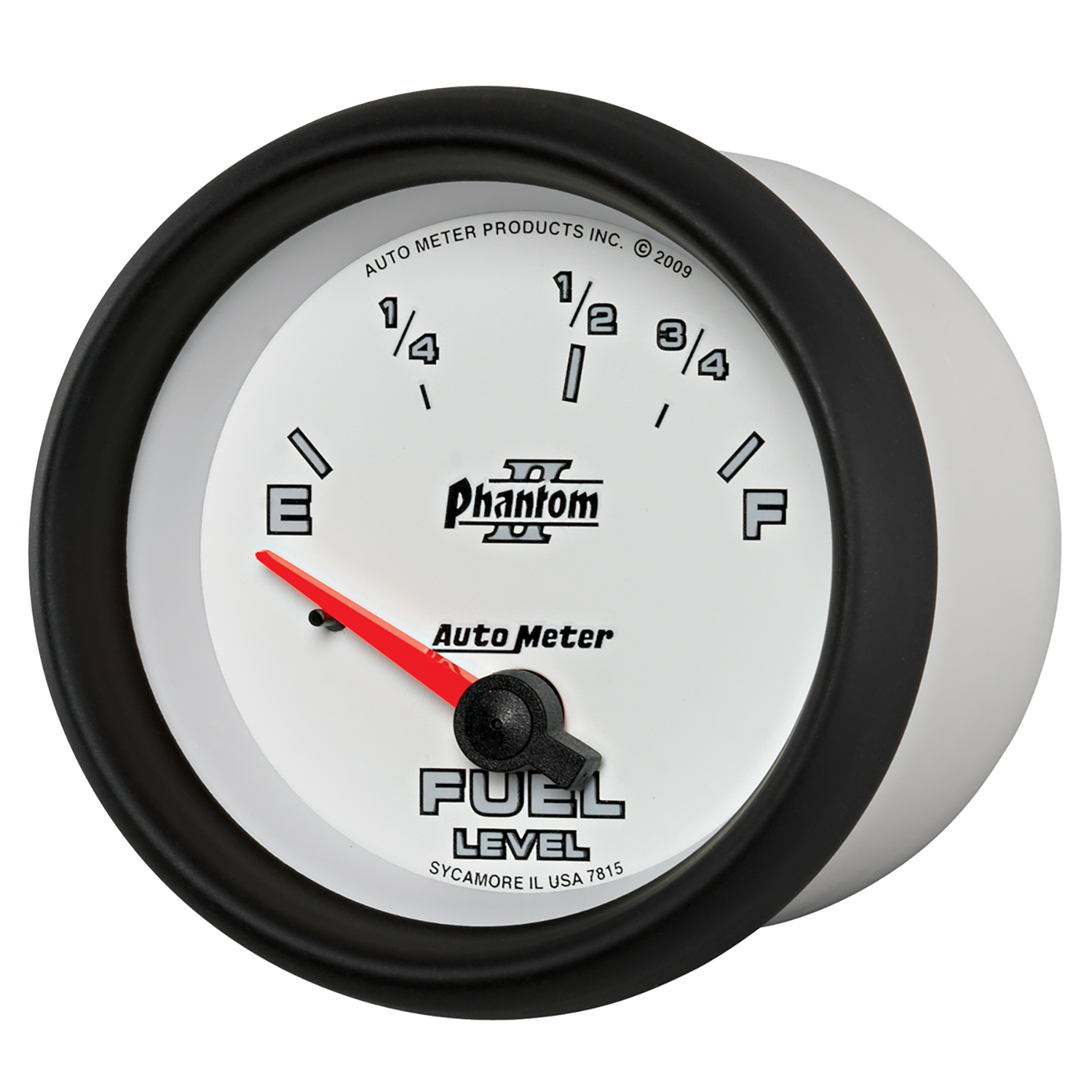

2-5/8" FUEL LEVEL, 73-10 O, PHANTOM II
$124
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part
One of the most necessary gauges in a dashboard AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s) 0-30 ohm (early GM) 73-10 ohm (pre 90’s Ford and Chrysler) 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Specifications
| WIDTH | 6.25 |
|---|---|
| HEIGHT | 6 |
| LENGTH | 5.25 |
| PROP65 | Yes |
| WEIGHT | 0.7 |
| WARRANTY | 12 Months |
| EMISSIONS | CARB Eligible |
| ATTRIBUTES | Bezel Color:Black;Bezel Style:Super Bezel;Cross Sell:9114;Cup/Hole Size - Metric - MM:66.7mm MM;Cup/Hole Size - Standard - IN:2-5/8" IN;Dial Color:White;Gauge Type:Fuel Level;Includes Mounting Hardware:3245;Lens Style:Flat Clear;Lighting Color:White;Lighting Type:LED;Movement:Electric Air-Core;Outer Bezel Diameter:2-7/8" IN;Outer Bezel Diameter - Standard:2-5/8" IN;Pointer Color:Fluorescent Red;Prop 65 (C R or CR):C;Prop 65 - Warning Label:ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png;Prop 65 Yes/No:Yes;Range:73 O Empty / 10 O Full (NON-LINEAR);Related Item:2160 BEX-3000 EP-800 0423XL;Series:PHANTOM II;Size - Metric - MM:66.7mm MM;Size - Standard - IN:2-5/8" IN;Title:2-5/8" FUEL LEVEL 73-10 O PHANTOM II;Upsell:9114 |
| PCDB CATEGORY | Body |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Fuel Level Gauge |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Auto Meter/2650-1858.pdf |
Datasheet — not yet published
