gauges and instruments

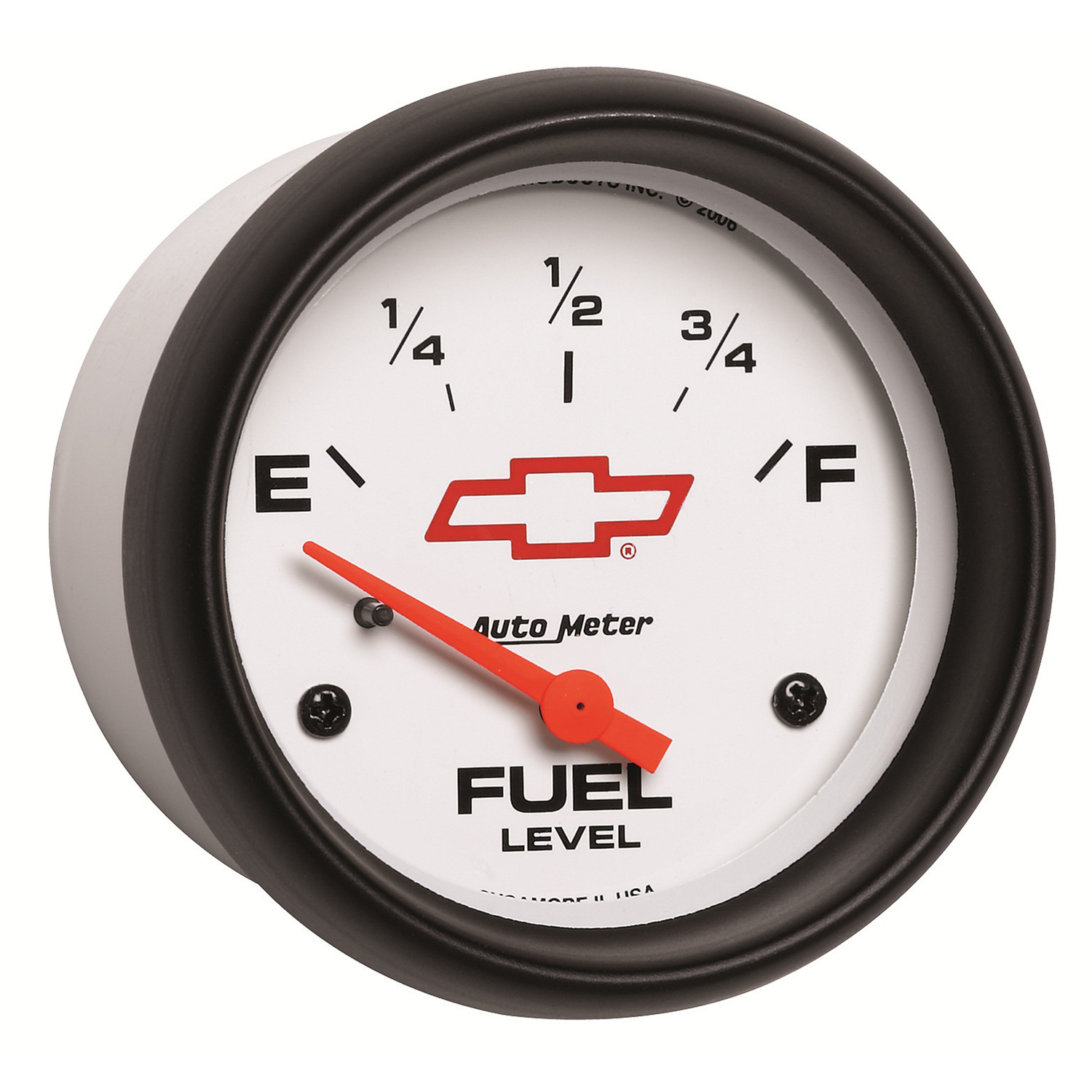

2-5/8 in. FUEL LEVEL, 0-90 O, ELEC, GM
$100
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part
One Of The Most Necessary Gauges In A Dashboard Autometer Makes It Easy By Offering 5 Different Resistance Range Configuration To Match Your Existing Fuel Sending Unit. Available In 0-90 Ohm (Gm Mid 60S To Mid 90S) 0-30 Ohm (Early Gm) 73-10 Ohm (Pre 90S Ford And Chrysler) 16-158 Ohm (Later Model Fords) And 240-33 Ohm (Aftermarket Senders Such As The Autometer 3262). Our Patented Air Core Meter Movement Receives Extra Dampening To Help Combat The Effects Fuel Slosh In Non-Baffled Tanks.
Specifications
| WIDTH | 5.5 |
|---|---|
| HEIGHT | 5.5 |
| LENGTH | 5 |
| PROP65 | |
| WEIGHT | 0.7 |
| WARRANTY | 12 Months |
| EMISSIONS | CARB Eligible |
| ATTRIBUTES | Add-On:3288;3286;3285;3284;3287;Title:2-5/8 in. FUEL LEVEL 0-90 O ELEC GM |
| PCDB CATEGORY | Body |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Fuel Level Gauge |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Auto Meter/2650-1858.pdf |
Datasheet — not yet published
