gauges and instruments

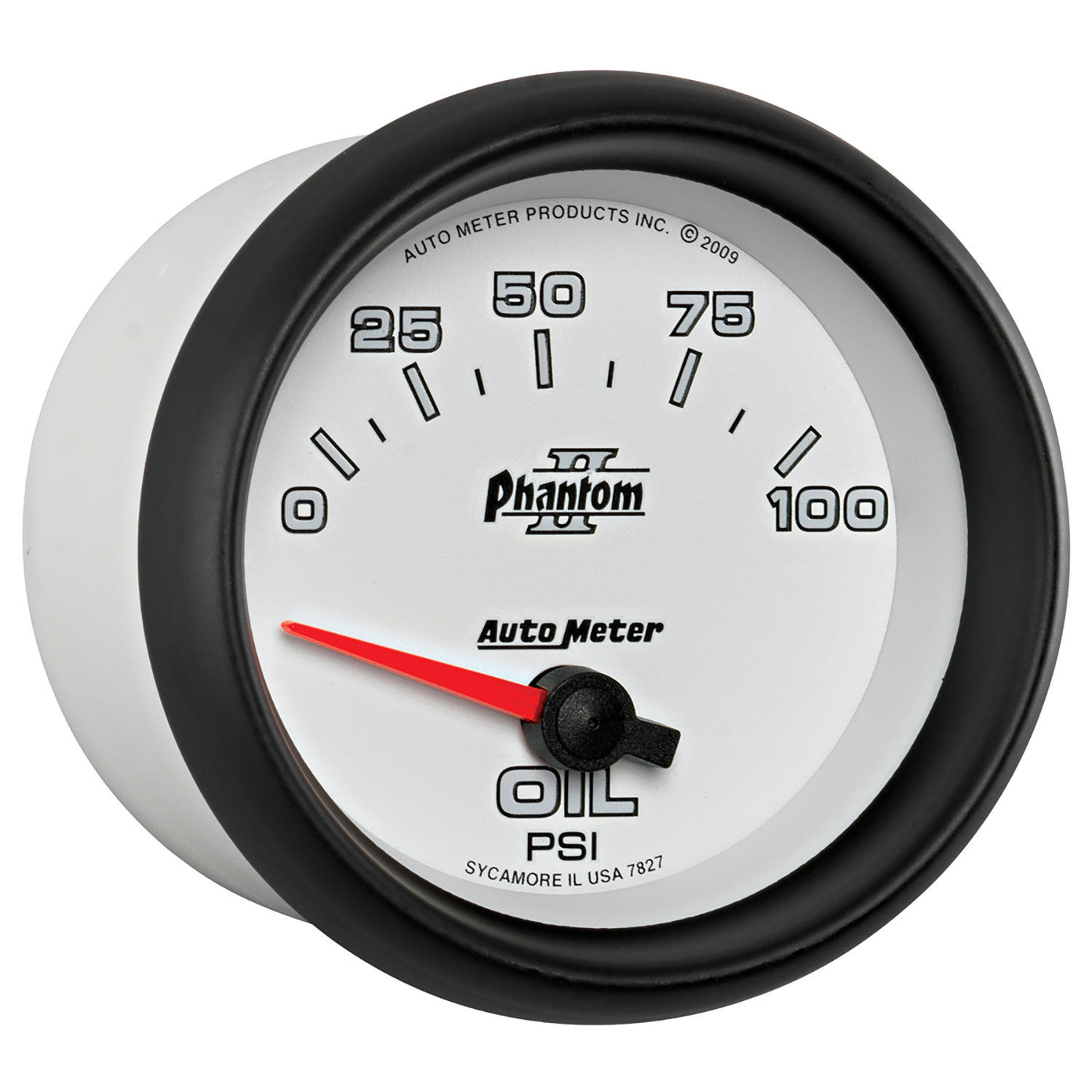

2-5/8" OIL PRESSURE, 0-100 PSI, PHANTOM II
$158
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part
Quite possibly the most critical vital to monitor engine oil pressure can mean the difference between making it home and needing to replace the engine. The patented air core meter movement provides the durability and accuracy that you expect from the AutoMeter name. Throughout 57 years of building the world’s best competition instruments this meter movement has been the engine powering the machine that sets the benchmark. A single wire 1/8” NPT oil pressure sender is included.
Specifications
| WIDTH | 6.25 |
|---|---|
| HEIGHT | 6 |
| LENGTH | 5.25 |
| PROP65 | Yes |
| WEIGHT | 1 |
| WARRANTY | 12 Months |
| EMISSIONS | CARB Eligible |
| ATTRIBUTES | Bezel Color:Black;Bezel Style:Super Bezel;Cross Sell:2268 2269 2265 2266 2267 9114;Cup/Hole Size - Metric - MM:66.7mm MM;Cup/Hole Size - Standard - IN:2-5/8" IN;Dial Color:White;Gauge Type:Oil Pressure;Includes Adapter/Fitting:3/8" NPT and 1/2" NPT adapter fittings;Includes Mounting Hardware:3245;Includes Sensor Unit:2242;Lens Style:Flat Clear;Lighting Color:White;Lighting Type:LED;Movement:Electric Air-Core;Outer Bezel Diameter:2-7/8" IN;Outer Bezel Diameter - Standard:2-5/8" IN;Pointer Color:Fluorescent Red;Prop 65 (C R or CR):C;Prop 65 - Warning Label:ftp://downloads.autometer.com/AutoMeter_Images/Auto_Meter_High_Performance/Misc/Prop%2065%20Warning.png;Prop 65 Yes/No:Yes;Range:0-100 PSI;Related Item:2160 BEX-3000 EP-800 0423XL;Series:PHANTOM II;Size - Metric - MM:66.7mm MM;Size - Standard - IN:2-5/8" IN;Title:2-5/8" OIL PRESSURE 0-100 PSI PHANTOM II;Upsell:2268 2269 2265 2266 2267 9114 |
| PCDB CATEGORY | Body |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Oil Pressure Gauge |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Auto Meter/2650-1079.pdf |
Datasheet — not yet published
