Baja Designs 381006WT S1 White Flush Mount Auxiliary Light Pod
$151
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

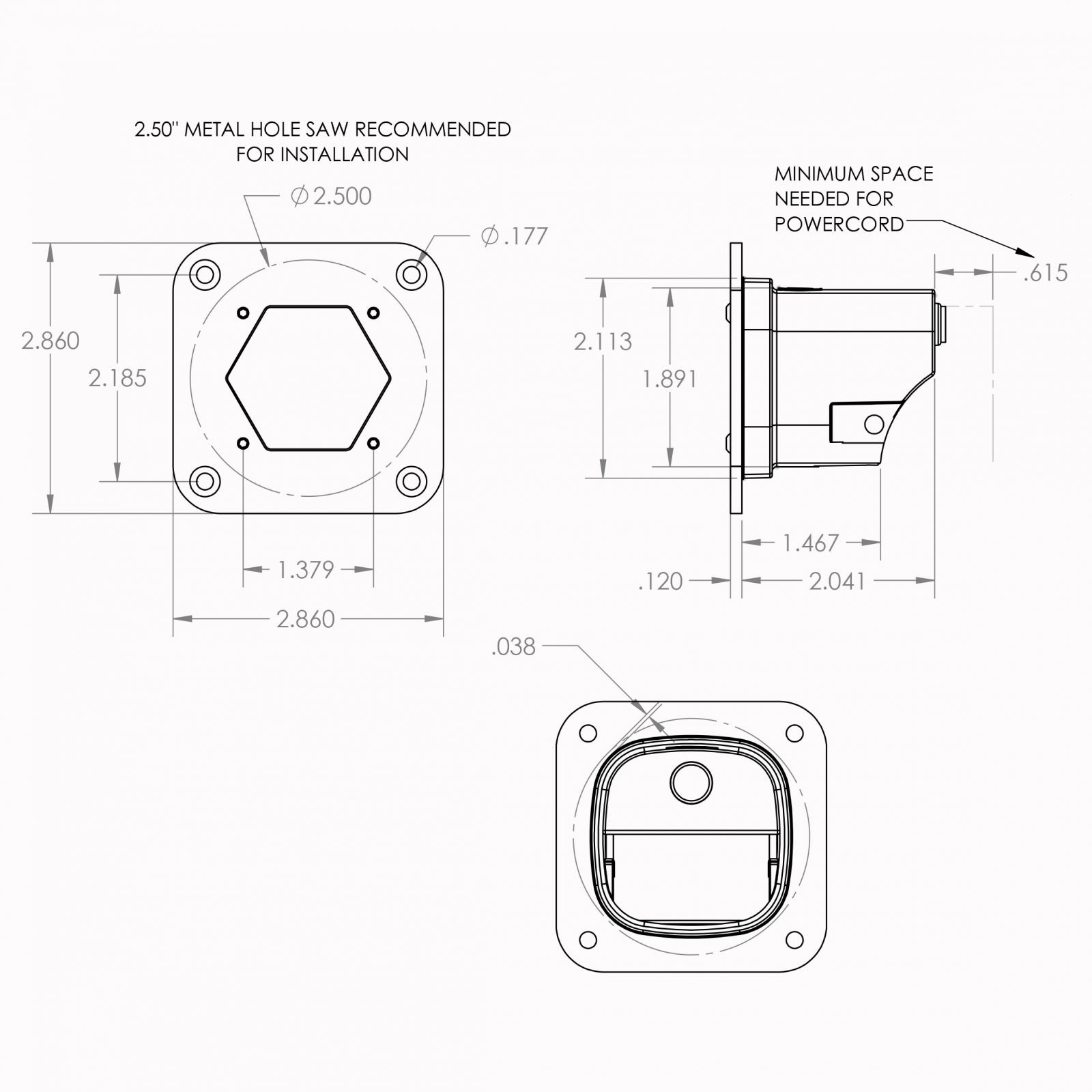

Designed from the ground up our new S1 fills the shoes of a large light in a small package! The S1 utilizes a highly specialized reflector and LED combination to outshine the competition. With the 2.1 inch length width and height the S1 is highly versatile for any application that is in need of light. Whether you're looking for a light to drive off of or something to light up a campsite the S1 will exceed your expectations! One of the key features that makes our S1 Flush Mounts unique is that the hole to mount them can be made by a one 2.5 inch hole saw. This makes for an extremely easy install! US Patent Number 11273751.
Specifications
| WIDTH | 8.000 |
|---|---|
| HEIGHT | 8.000 |
| LENGTH | 8.000 |
| PROP65 | Yes |
| WEIGHT | 3.000 |
| WARRANTY | Limited Lifetime |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Add-On:Accessories-388002-Rock Guard (Amber);Add-On:Accessories-388003-Rock Guard (Clear);Add-On:Accessories-660116-Lens Kit (Spot; Clear);Add-On:Accessories-660117-Lens Kit (Wide Cornering; Clear);Add-On:Accessories-660118-Lens Kit (Wide Cornering; Amber);Add-On:Accessories-660119-Lens Kit (Work/Scene; Clear);Add-On:Compatible Products-613600-Harness/Splitter (3 Light Max);Add-On:Compatible Products-613607-Harness Splitter;Add-On:Compatible Products-613609-Harness/Splitter (55 Inch);Add-On:Compatible Products-640093-Upfitter Harness;Add-On:Compatible Products-640117-Harness/Splitter (On/Off);Add-On:Compatible Products-640164-Wiring Harness (Hi/Low);Add-On:Compatible Products-640165-Harness Extension (10 ft.);Amperage Rating (A):1.420 Specifications;Average Rated Life (hr.):49 930 Specifications;Beam Pattern:Work/Scene Specifications;Bezel Material:Powder Coated Cast Aluminum Specifications;Brightness (Lumens):2320 Specifications;Depth (in.):2.100 Dimensions;DES:S1 White Flush Mount Auxiliary Light Pod;Description:Flush Mount; White Housing; Work/Scene; Clear Specifications;EXT:S1 White Flush Mount LED Light Pod (Work/Scene; Clear);Height (in.):2.100 Dimensions;Housing Color:White Specifications;Housing Material:Hard Anodized and Powder Coated Cast Aluminum Specifications;Length (in.):2.100 Dimensions;Lens Color:Clear Specifications;Lens Material:Hardcoated Polycarbonate Specifications;Light Quantity:1 Specifications;Lighting Modes:Beam Specifications;Lighting Quantity:1 Specifications;Lighting Technology:LED Specifications;Lighting Type:Forward Projecting Specifications;Mounting Hardware Included:Yes Specifications;Mounting Hardware Material:Stainless Steel Specifications;Overvoltage Protection:Built-In Specifications;Product Type:S1 Flush Mount LED Light Pod Specifications;Prop 65 - Short Label:CR;Prop 65 Warning Label:Prop 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.;Prop 65 Yes/No:Yes;Standards/Compliance (Durability):Exceeds MIL-STD810G (Mil-Spec Testing) Standards & Complian;Standards/Compliance (Impact Resistance):IK10 Compliant (Mechanical Impact Testing) Standards & Complian;Standards/Compliance (Water Resistance):IP69K (Waterproof up to 9ft & Pressure Washable) Standards & Complian;TLE:S1 White Flush Mount LED Light Pod (Work/Scene; Clear);Voltage:9-28 Specifications;Wattage (W):19.596 Specifications;Weight (lbs.):0.400 Dimensions;Wiring Harness Included:No Specifications |
| PCDB CATEGORY | Electrical Lighting and Body |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Auxiliary Light |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
