Baja Designs 740001 XL Sport Linkable LED Light Bar
$1,000
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

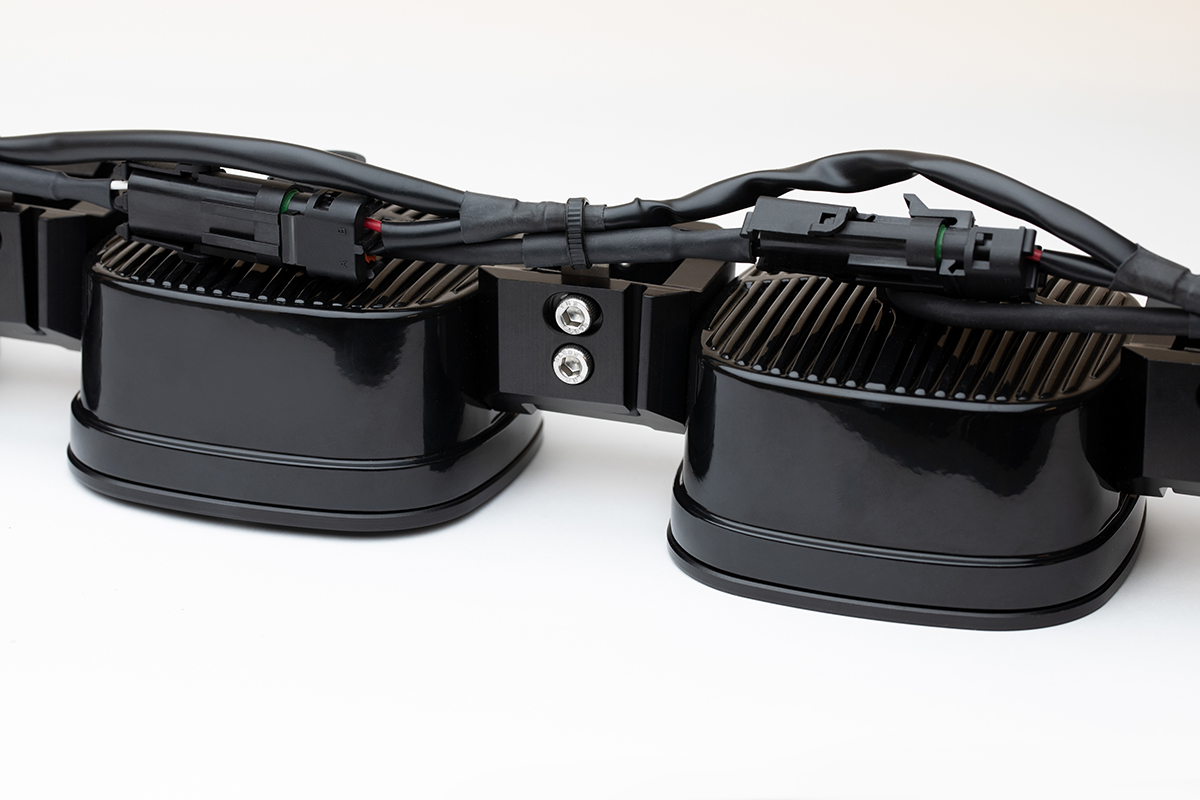

Experience full adjustment and total performance with the Baja Designs XL Sport Linkable LED light bar kit engineered for enthusiasts seeking to take charge with a lighting package that is completely customizable. Built around our popular XL shallow moto housing each light offers 3 162 raw lumens each from our next generation LEDs and can be configured with 3 up to 9 forward projecting lights that provide a smooth blend due to the use of multiple lens pattens illuminating zones 1 2 3 and 4 simultaneously. The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your vehicle’s bumper or roofline. The wiring comes fully crimped and trimmed allowing for easy installation and the ability to add links down the road and black rock guards are included to protect the lights when not in use. If you're looking to have a lighting system that performs as well as it looks this is the auxiliary light kit for you!
Specifications
| WIDTH | |
|---|---|
| HEIGHT | |
| LENGTH | |
| PROP65 | Yes |
| WEIGHT | 8.000 |
| WARRANTY | Limited Lifetime |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Add-On:Accessories-660104-Lens Kit (Driving/Combo; Clear);Add-On:Accessories-660105-Lens Kit (Wide Cornering; Clear);Add-On:Accessories-660106-Lens Kit (Spot; Clear);Add-On:Accessories-660107-Lens Kit (Wide Cornering; Amber);Add-On:Accessories-660115-Lens Kit (Driving/Combo; Amber);Add-On:Accessories-668003-Rock Guard (Black);Add-On:Accessories-668004-Light Cover (Amber);Add-On:Accessories-668005-Light Cover (Clear);Add-On:Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts;Add-On:Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts;Add-On:Associated Products-748000-Brackets;Add-On:Associated Products-748002-Pre-Load Mount;Add-On:Compatible Products-640094-Upfitter Harness;Amperage Rating (A):6 Specifications;Average Rated Life (hr.):49 930 Specifications;Beam Pattern:Multi-Pattern Specifications;Bezel Material:Powder Coated Cast Aluminum Specifications;Brightness (Lumens):9 450 Specifications;Depth (in.):2.8 Dimensions;DES:XL Sport Linkable LED Light Bar;Description:3XL Sport; Multi-Pattern; Clear Specifications;EXT:XL Sport Linkable LED Light Bar (3 XL; Clear);Height (in.):4.43 Dimensions;Housing Color:Black Specifications;Housing Material:Hard Anodized and Powder Coated Cast Aluminum Specifications;Length (in.):20.63 Dimensions;Lens Color:Clear Specifications;Lens Material:Hardcoated Polycarbonate Specifications;Light Quantity:3 Specifications;Lighting Modes:Beam Specifications;Lighting Quantity:12 Specifications;Lighting Technology:LED Specifications;Lighting Type:Forward Projecting Specifications;Mounting Hardware Description:Links; Rock Guards Specifications;Mounting Hardware Included:Yes Specifications;Mounting Hardware Material:Stainless Steel Specifications;Overvoltage Protection:Built-In Specifications;Product Type:XL Linkable LED Light Bar Specifications;Prop 65 - Short Label:CR;Prop 65 Warning Label:Prop 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.;Prop 65 Yes/No:Yes;Standards/Compliance (Durability):Exceeds MIL-STD810G (Mil-Spec Testing) Standards & Complian;Standards/Compliance (Impact Resistance):IK10 Compliant (Mechanical Impact Testing) Standards & Complian;Standards/Compliance (Water Resistance):IP69K (Waterproof up to 9ft & Pressure Washable) Standards & Complian;TLE:XL Sport Linkable LED Light Bar (3 XL; Clear);Universal or Specific:Universal Specifications;Wattage (W):78 Specifications;Wiring Harness Included:Yes Specifications |
| PCDB CATEGORY | Electrical Lighting and Body |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Light Bar |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Bestop/FGXX_XLLinkable-INS_001.pdf |
Datasheet — not yet published
