suspension and steering

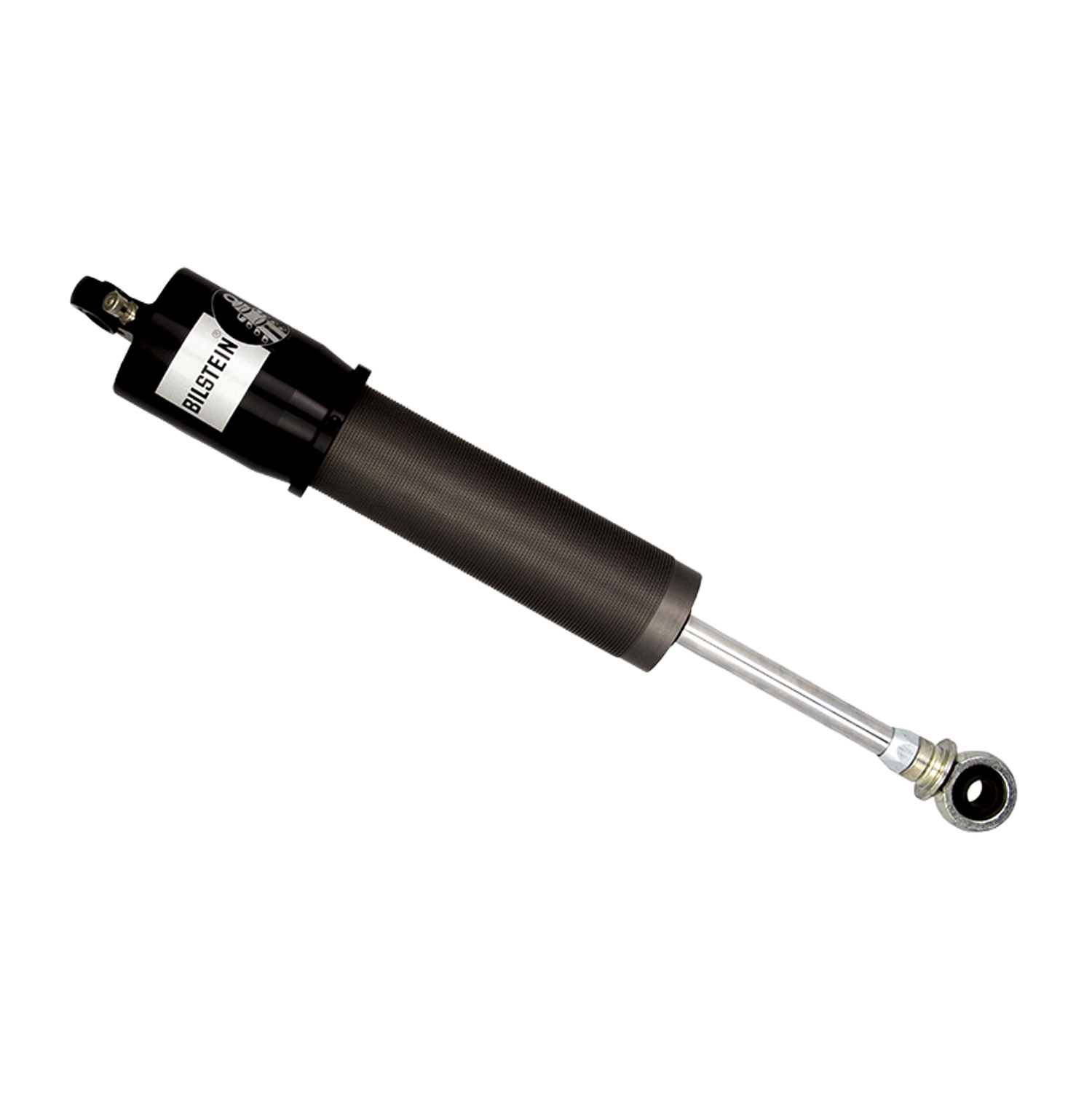

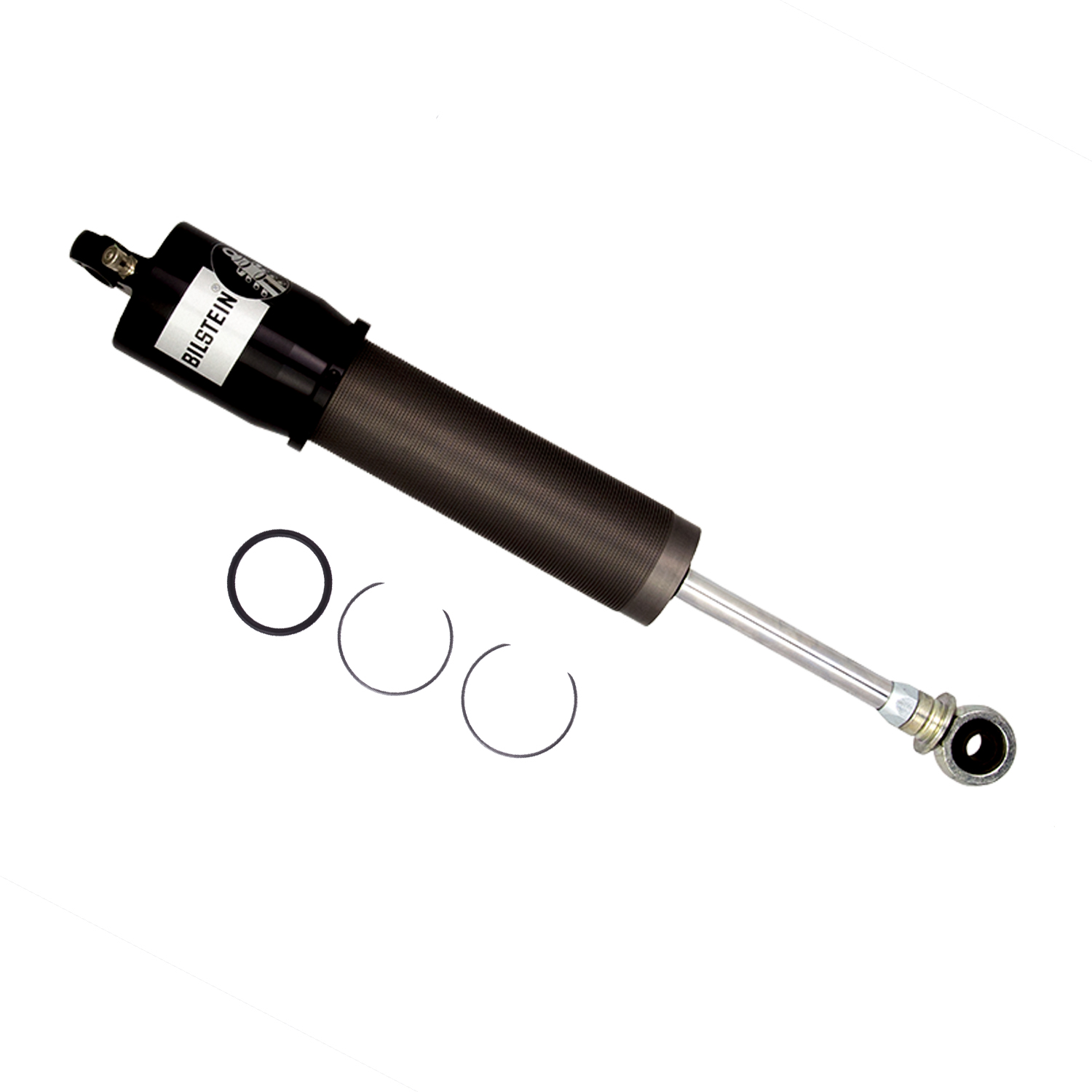

Bilstein 33-252490 XVA Series - Suspension Shock Absorber
$430
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb with optional base valve (sold separately) allows for lower gas pressure for increased grip. These shock absorbers are available in non- single and double adjustable configurations for precise on-vehicle tuning options. Pistons piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum rebuildable design with multiple upgrade options and superior performance.
Specifications
| WIDTH | 2.9500 |
|---|---|
| HEIGHT | 2.9500 |
| LENGTH | 26.8000 |
| PROP65 | |
| WEIGHT | 2.8000 |
| WARRANTY | 3 Months |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Adjustable Damping:Non-Adjustable;Body Design:Threaded Body Large Bulb Screw Top (Coilover);Body Material:Aluminum;Boot Included:No;Collapsed Length (IN):12.87;Collapsed Length (MM):327.0;Extended Length (IN):18.62;Extended Length (MM):473.0;Finish:Clear Anodized;Internal Design:Monotube;Lower Mount Type:1/2in Heim;PartType:Shocks / Struts;Piston Diameter:46mm;Piston Type:Linear;Prop 65 (Y/N):Y;Prop 65 - Short Label:WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov;Segment:Motorsports;Series:XVA Series;Shaft Diameter:14mm;Spring Hardware:B4-KT1-Z245A01;Spring Seat Included:No;Stroke/Travel Length (IN):5.75;Stroke/Travel Length (mm):146.1;Title:Bilstein Shock Absorbers;Upper Mount Type:1/2in Heim;Valving Identifier:Linear Dry Kit (no valving) |
| PCDB CATEGORY | Suspension |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Suspension Shock Absorber |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Thyssen Krupp Automotive Group/Generic_instructions_02.pdf |
Datasheet — not yet published
