suspension and steering
Bilstein 47-310957 B8 6112 - Suspension Kit
$901
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

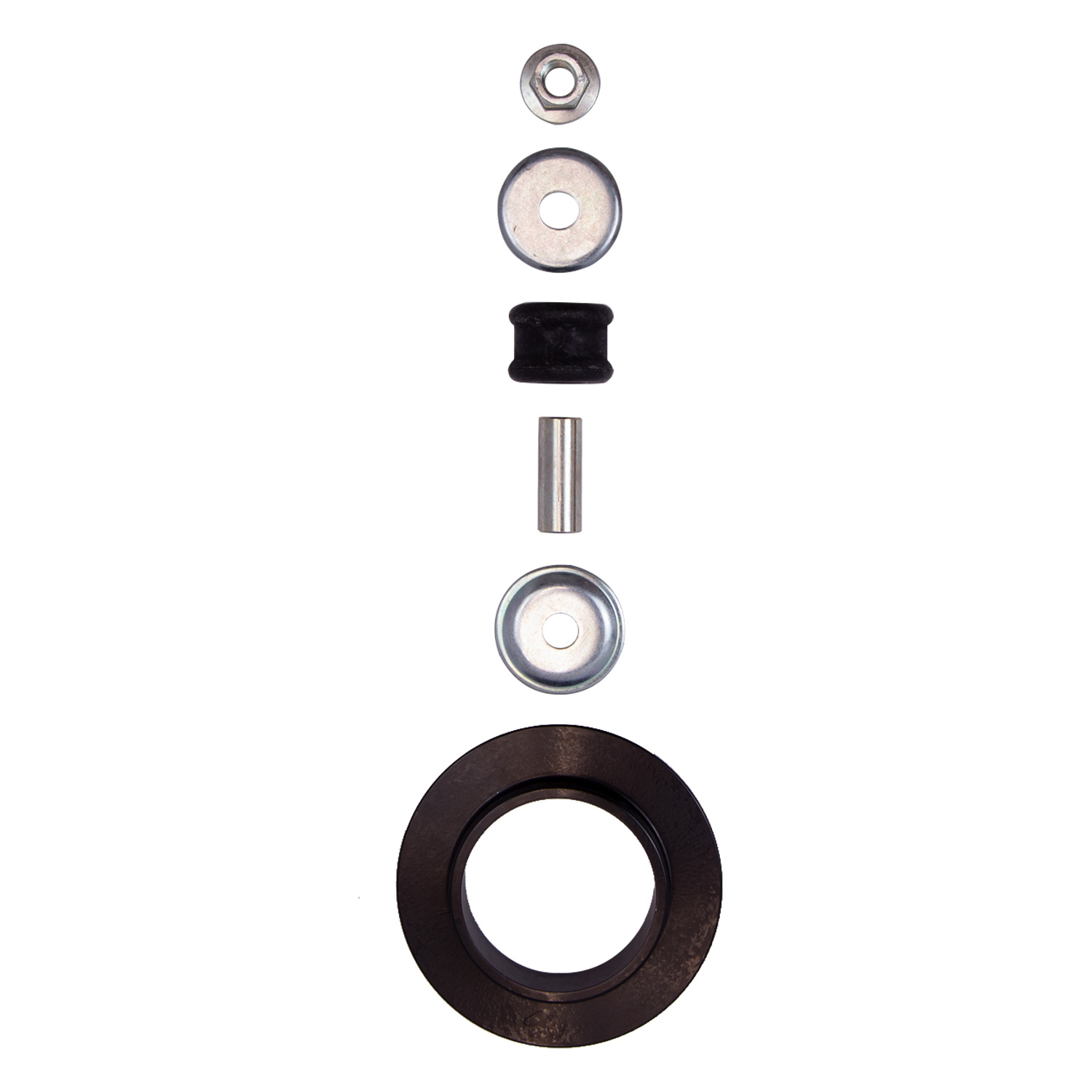

Bilstein B8 6112 leveling kits are designed to provide more ground clearance allow for larger tires and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Specifications
| WIDTH | 12.7500 |
|---|---|
| HEIGHT | 4.6300 |
| LENGTH | 28.0000 |
| PROP65 | |
| WEIGHT | 51.0000 |
| WARRANTY | Lifetime |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Body Design:Snap Ring Grooved Body (Coilover);Boot Included:No;Finish:Dampers: Zinc Plated/Springs: Black;Front Main Spring Rate (lbs/in):450;Internal Design:Monotube;PartType:Suspension Kit;Piston Diameter:60mm;Prop 65 (Y/N):Y;Prop 65 - Short Label:WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov;Reservoir:No;Segment:Light Truck;Series:B8 6112;Shaft Diameter:18mm;Spring Seat Included:Yes;Title:Bilstein Shock Absorbers |
| PCDB CATEGORY | Suspension |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Suspension Kit |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Thyssen Krupp Automotive Group/E4-WM5-Y554A00_3.pdf |
Datasheet — not yet published
