suspension and steering

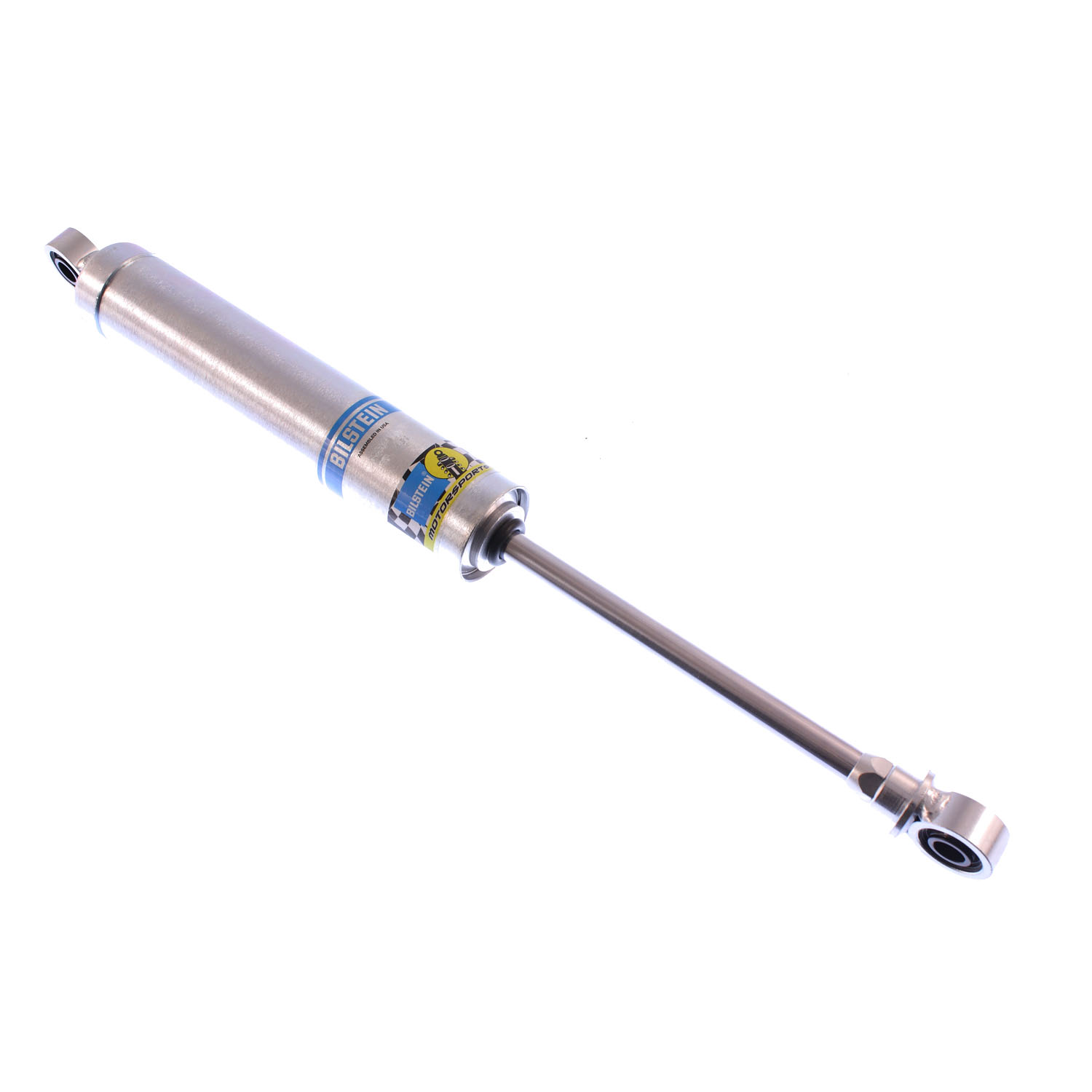

Bilstein F4-B46-0207-ZE SZ Series - Suspension Shock Absorber
$171
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
Bilstein SZ Series shock absorbers feature a 46mm piston steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Specifications
| WIDTH | 2.9500 |
|---|---|
| HEIGHT | 2.9500 |
| LENGTH | 26.8000 |
| PROP65 | |
| WEIGHT | 4.6300 |
| WARRANTY | 3 Months |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Adjustable Damping:Non-Adjustable;Body Design:Smooth Body (Non-coilover);Body Material:Steel;Boot Included:No;Collapsed Length (IN):14.88;Collapsed Length (MM):378.0;Compression @0.26m/s:1110;Extended Length (IN):23.52;Extended Length (MM):597.5;Finish:Zinc Plated;Internal Design:Monotube;Lower Mount Type:1/2in Heim;PartType:Shocks / Struts;Piston Diameter:46mm;Piston Type:Digressive;Prop 65 (Y/N):Y;Prop 65 - Short Label:WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov;Rebound @0.26m/s:650;Segment:Motorsports;Series:SZ Series;Shaft Diameter:14mm;Spring Hardware:B4-BOA-0000117;Spring Seat Included:No;Stroke/Travel Length (IN):8.64;Stroke/Travel Length (mm):219.5;Title:Bilstein Shock Absorbers;Upper Mount Type:1/2in Heim;Valving Identifier:3050 |
| PCDB CATEGORY | Suspension |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Suspension Shock Absorber |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Thyssen Krupp Automotive Group/Generic_instructions_02.pdf |
Datasheet — not yet published
