Big Victor 2 Big Block Chevy Spread-Port Tall Deck Intake Manifold
$950
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part

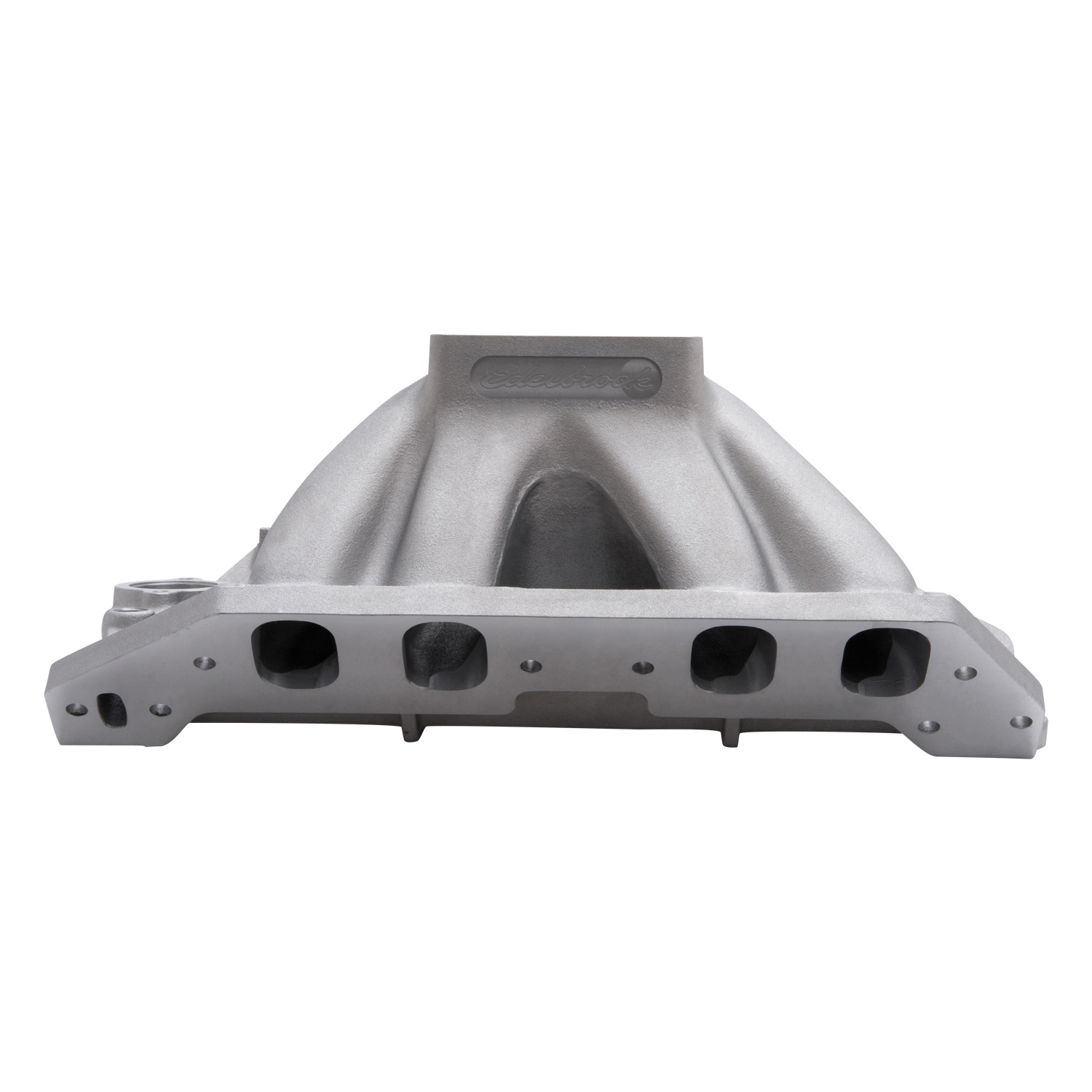

Edelbrock part #28009 Big Victor 2 CNC intake manifold is designed for large cubic-inch or high rpm drag racing big-blocks. The Big Victor 2 is a spread-port design and has been CNC port matched for a proper fit right-out of-the-box when used with the Edelbrock Big Victor Brodix Dart or Pro-Filer Raptor cylinder heads. This manifold has the same features as the standard as-cast Edelbrock Big Victor 2 Spread- Port intakes. This intake manifold is equipped with a 4500 Series flange and will accept 2.25" throttle body butterflies without a spacer or modification.
Specifications
| WIDTH | 14.75 |
|---|---|
| HEIGHT | 14.5 |
| LENGTH | 24 |
| PROP65 | |
| WEIGHT | 37.4 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Gasket Or Seal Included:No;Single Or Dual Plane Type:Single Plane;Front Maximum Height:9.530 IN;Center Maximum Height:9.530 IN;Rear Maximum Height:9.530 IN;EGR Port:No;CNC Ported:Yes;Basic Operating RPM Range:3500-8500 R3;Finish:Satin;Flange Type:4500;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Series:Victor;Vehicle Model:Chevrolet |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Intake Manifold |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
