engine heads and blocks
E-Tec-200 Small-Block Chevy Cylinder Head Hydraulic Roller Polished
$804
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

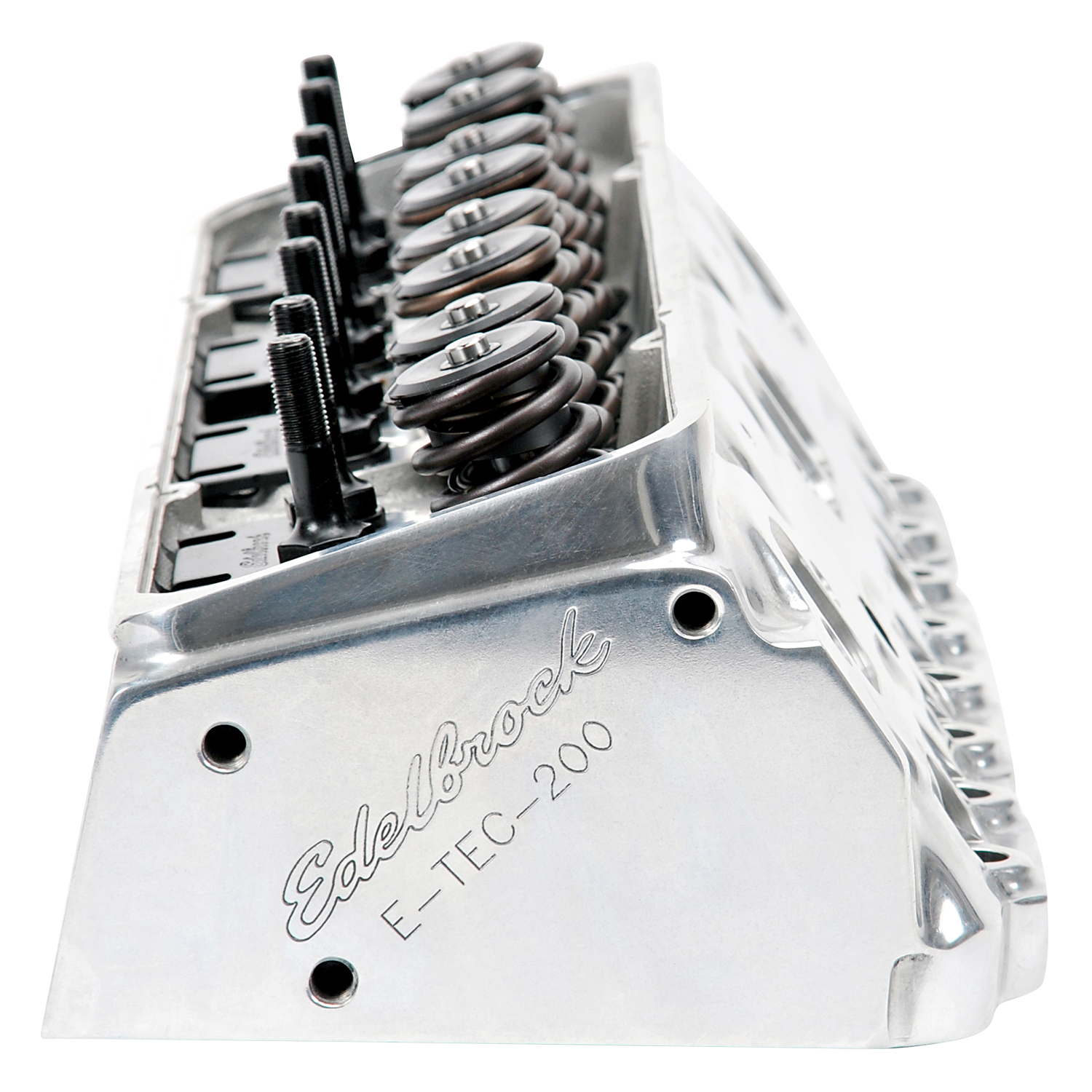

The Edelbrock #609815 E-Tec Cylinder Heads are replacements for 302 327 350 & 400 c.i.d. S/B Chevy engines with "Vortec-style" manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder promoting a more efficient combustion resulting in more power. These heads include an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than cast iron Vortec heads great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec cylinder heads are dual-drilled and will accept 1987-95 center bolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds.
Specifications
| WIDTH | 10.125 |
|---|---|
| HEIGHT | 7.1875 |
| LENGTH | 22.1875 |
| PROP65 | |
| WEIGHT | 30 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Push Rod Diameter:0.312 IN;Deck Height:9.025 IN;Deck Thickness:0.562 IN;Combustion Chamber Volume:64.0 CCM;Intake Runner Volume:200.0 CCM;Intake Valve Diameter:2.020 IN;Exhaust Valve Diameter:1.600 IN;Valve Spring Diameter:1.460 IN;Valve Spring Maximum Lift:0.575 IN;Guide Plates Included:Yes;Head Casting Number:6098F;CNC Ported:No;Guide Plate Material:Hardened Steel;Product Family:E-Series;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Rocker Arm Stud Diameter:0.375 IN;Valve Angle:23 DD;Valve Stem Diameter:0.341 IN |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Cylinder Head |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
