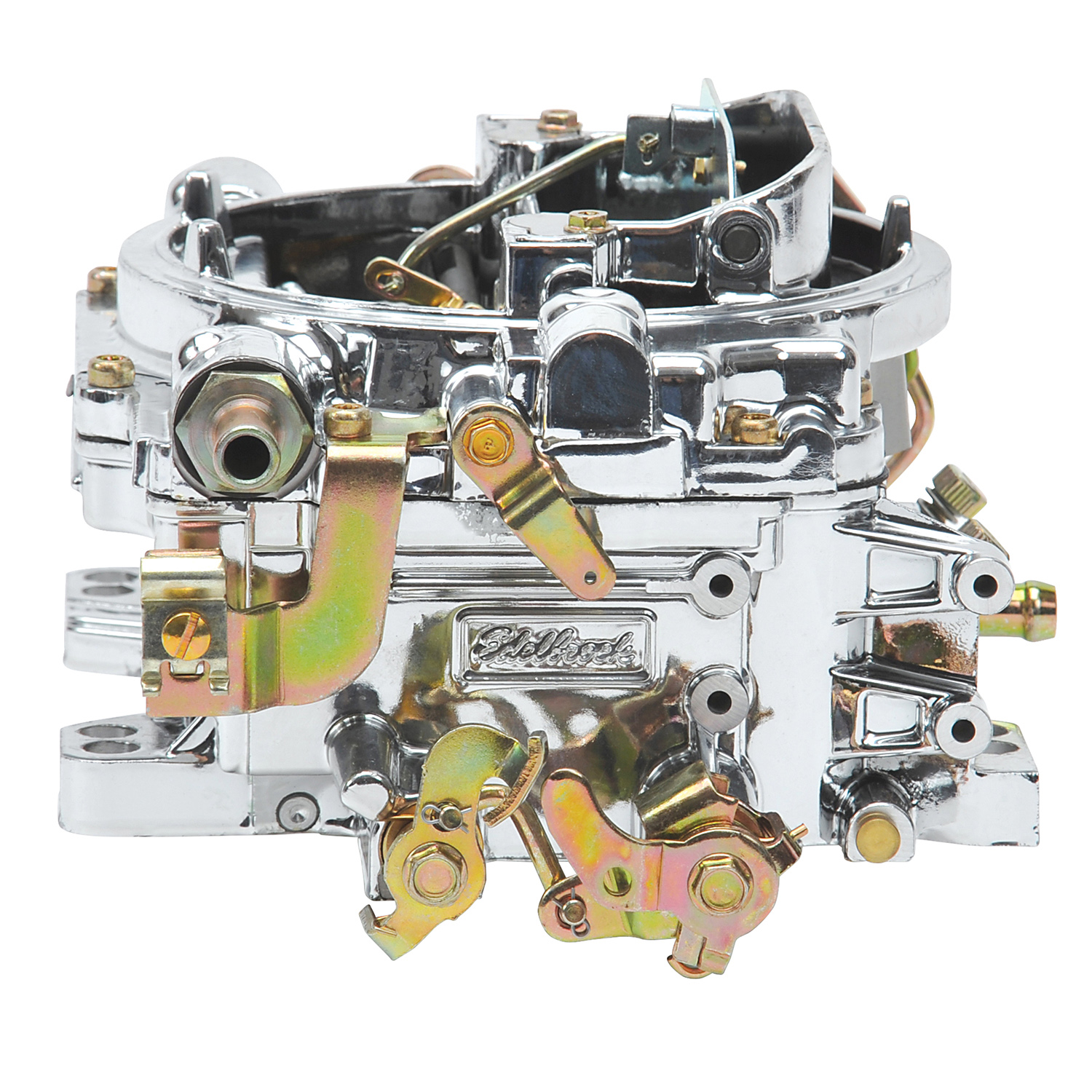

Edelbrock 140549 Reman Performer Carb #140549 600 CFM W/ Manual Choke, EnduraShine (Non-EGR)
$470
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
The Edelbrock 140549 Remanufactured Performer Series 600 CFM manual choke EnduraShine carburetor is a precisely tuned quality-built carburetor that can handle the rigors of daily driving while delivering consistent reliable street performance from day to day. Several characteristics make the 140549 Remanufactured Performer Series 600 CFM manual choke EnduraShine carburetor an outstanding street performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires which means that there are no power valves to blow out and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly the carburetor has the unique ability to "hold a tune" so once it is tuned the carburetor stay's tuned. What this means to you is that compared to other carburetors the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that resists warping and is compatible with gasohol and blended fuels. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable user-friendly and is easily tunable for miles and miles of trouble-free operation.
Specifications
| WIDTH | 7.375 |
|---|---|
| HEIGHT | 6.75 |
| LENGTH | 13.25 |
| PROP65 | |
| WEIGHT | 9 |
| WARRANTY | 1 Months |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | Street Legal:No;Base Length:6.25 IN;Base Width:5.937 IN;Flange Shape:Square Bore;Mounting Hardware Included:No;Grade Type:Performance;Gasket Or Seal Included:Yes;Mounting Hole Quantity:8;Linkage Attached:No;Choke Type:Manual;Float Material:Brass;Spacer Included:No;Maximum Flow Rating:600 2L;Marine Approved:No;Body Height:3.25 IN;Body Material:Aluminum;Adjustable Float Level:No;Air Cleaner Flange Diameter:5.125 IN;Primary Jet Diameter:0.100 IN;Secondary Jet Diameter:0.095 IN;Main Venturi Diameter:1.190 IN;Small Venturi Diameter:1.560 IN;Float Level:0.437 IN;Float Drop:1.0 IN;Metering Rod Power Tip Diameter:0.047 IN;Metering Rod Length:3.15 IN;Mounting Hole Diameter:0.355 IN;Barrel Quantity:4;Center Hung Floats:No;EGR Port:No;Finish:EnduraShine;Inlet Fitting Thread Diameter:0.625 IN;RGL:WARNING: This product can expose you to Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov. |
| PCDB CATEGORY | Air and Fuel Delivery |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Carburetor |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
