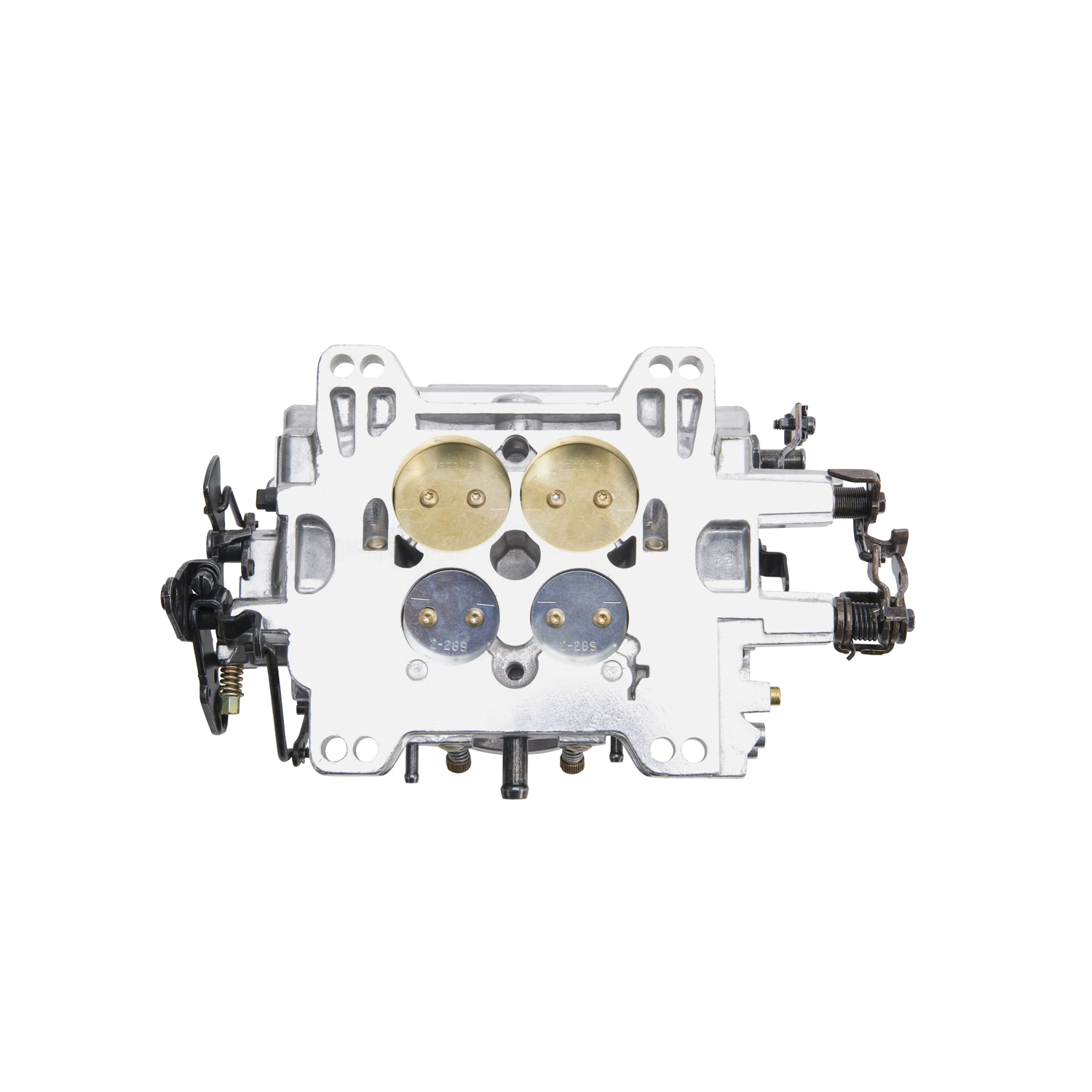

Edelbrock 18029 Reman Thunder AVS Carb #18029 500 CFM With Manual Choke, Satin Finish (Non-EGR)
$423
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
The Edelbrock 18029 Remanufactured Thunder Series AVS 500 CFM manual choke carburetor has been designed and calibrated to deliver optimum street performance. Several characteristics make the 18029 Remanufactured Thunder Series AVS 500 CFM manual choke carburetor an outstanding street performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires which means that there are no power valves to blow out and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly the carburetor has the unique ability to "hold a tune" so once it is tuned the carburetor stay's tuned. What this means to you is that compared to other carburetors the performance remains consistent and the calibration stays unchanged. The third characteristic is the primary and secondary booster clusters that are utilized offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Fourth the unique Thunder Series' Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit with simple hand tools while on your vehicle. It's quick. It's simple. It's effective. It can be easily adjusted - in seconds - to suit your application. Simply put the Edelbrock 18029 Remanufactured Thunder Series AVS 500 CFM manual choke carburetor is undeniably the most innovative and dependable street performance carburetor available today.
Specifications
| WIDTH | 7.375 |
|---|---|
| HEIGHT | 6.75 |
| LENGTH | 13.25 |
| PROP65 | |
| WEIGHT | 9.4 |
| WARRANTY | 1 Months |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | Street Legal:No;Base Length:6.25 IN;Base Width:5.937 IN;Flange Shape:Square Bore;Mounting Hardware Included:No;Grade Type:Performance;Gasket Or Seal Included:Yes;Mounting Hole Quantity:8;Linkage Attached:No;Choke Type:Manual;Float Material:Brass;Spacer Included:No;Maximum Flow Rating:500 2L;Marine Approved:No;Body Height:3.25 IN;Body Material:Aluminum;Adjustable Float Level:No;Air Cleaner Flange Diameter:5.125 IN;Primary Jet Diameter:0.086 IN;Secondary Jet Diameter:0.095 IN;Main Venturi Diameter:1.190 IN;Small Venturi Diameter:1.560 IN;Float Level:0.437 IN;Float Drop:1.0 IN;Metering Rod Power Tip Diameter:0.052 IN;Metering Rod Length:3.15 IN;Mounting Hole Diameter:0.355 IN;Barrel Quantity:4;Center Hung Floats:No;EGR Port:No;Finish:Satin;Inlet Fitting Thread Diameter:0.625 IN;RGL:WARNING: This product can expose you to Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov. |
| PCDB CATEGORY | Air and Fuel Delivery |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Carburetor |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
