air fuel and ignition

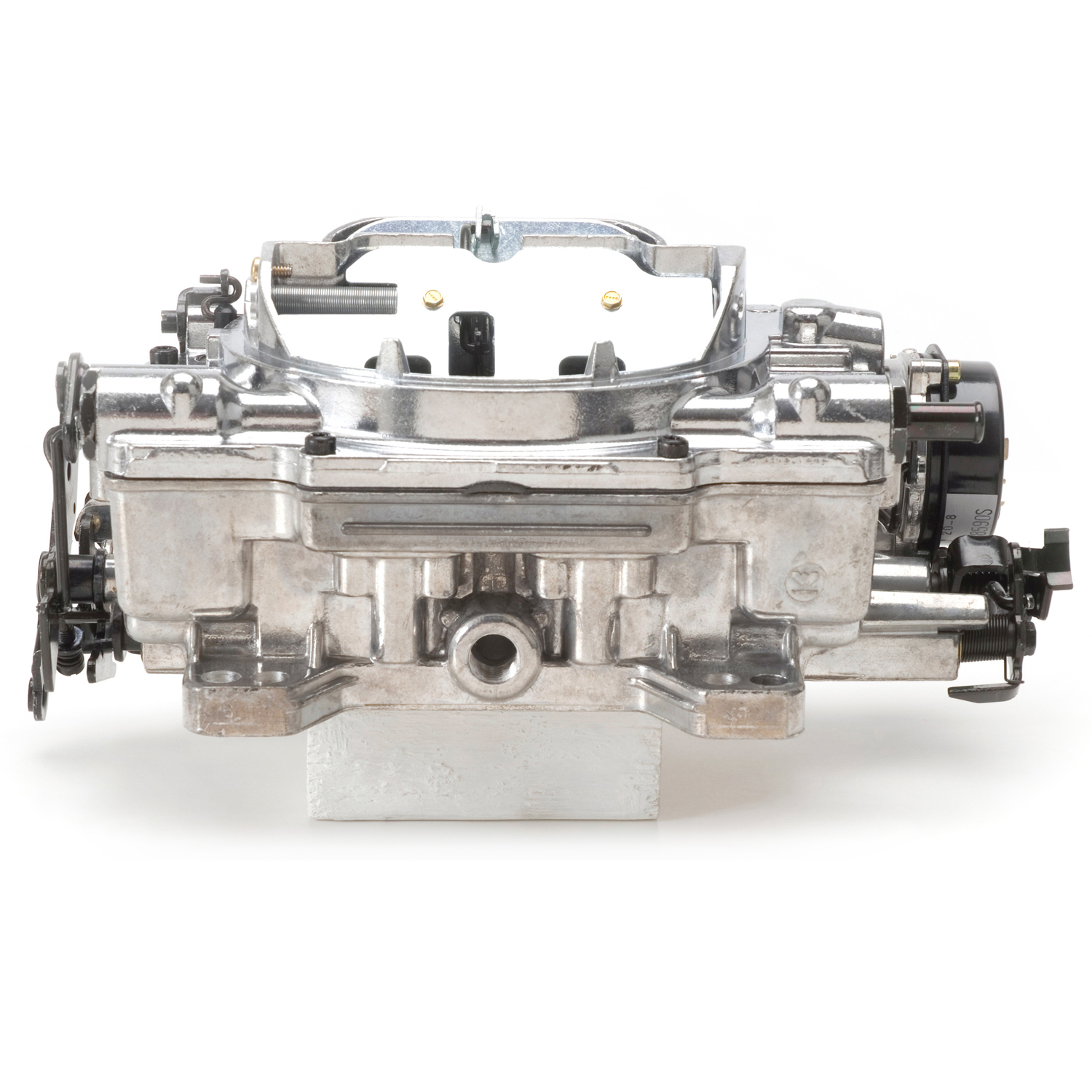

Edelbrock 1826 Thunder AVS Carburetor #1826 650 CFM With Electric Choke, Satin Finish (Non-EGR)
$448
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
The Edelbrock 1826 Thunder Series AVS 650 CFM electric choke carburetor has been designed and calibrated to deliver optimum off-road performance. Several characteristics make the 1826 Thunder Series AVS 650 CFM electric choke carburetor an outstanding street performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires which means that there are no power valves to blow out and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly the carburetor has the unique ability to "hold a tune" so once it is tuned the carburetor stay's tuned. What this means to you is that compared to other carburetors the performance remains consistent and the calibration stays unchanged. The third characteristic is the primary and secondary booster clusters that are utilized offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Fourth the unique Thunder Series' Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit with simple hand tools while on your vehicle. It's quick. It's simple. It's effective. It can be easily adjusted - in seconds - to suit your application.. no extra parts required to achieve optimum performance. Simply put the Edelbrock 1826 Thunder Series AVS 650 CFM electric choke carburetor is undeniably the most innovative and dependable street performance carburetor available today.
Specifications
| WIDTH | 7.375 |
|---|---|
| HEIGHT | 6.75 |
| LENGTH | 13.25 |
| PROP65 | |
| WEIGHT | 8.95 |
| WARRANTY | 12 Months |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | Flange Shape:Square;Gasket Or Seal Included:Yes;Choke Type:Electric;Maximum Flow Rating:650 2L;Body Height:3.25 IN;Primary Jet Diameter:0.095 IN;Secondary Jet Diameter:0.098 IN;Main Venturi Diameter:1.19 IN;Barrel Quantity:4;Booster Type:annular;Bore Diameter:Primary Bore 1.44; Secondary Bore 1.75 IN;Condition:New;EGR Port:No;Finish:Satin;Material:Aluminum;Metering Rod Size:.065 x .047 IN;RGL:WARNING: This product can expose you to Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Series:Thunder AVS;Spring Force:5" Hg (Orange) |
| PCDB CATEGORY | Air and Fuel Delivery |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Carburetor |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 1826_charts.pdf |
Datasheet — not yet published
