Edelbrock 20624 Single-Quad Manifold and carb Kit for Big-Block Chevy Oval Port
$1,127
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

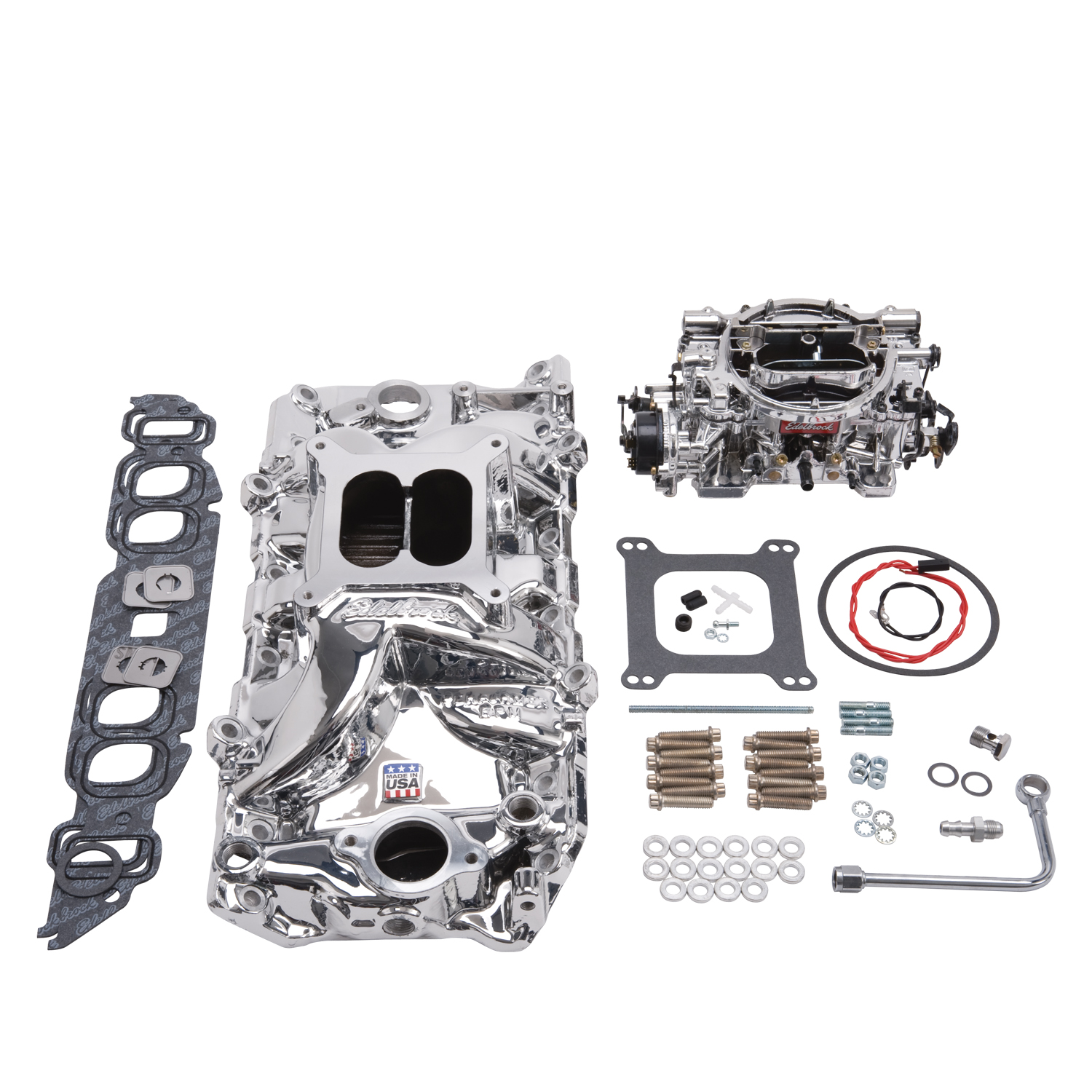

The Edelbrock #20624 Single-Quad Manifold and carb kit is designed for Big-Block Chevy Oval Port applications. With a Manifold and Carb Kit it's easy to upgrade your induction system with the best combination of Edelbrock proven performance and looks in a single box. These kits include: an Edelbrock manifold Performer or Thunder Series AVS carb chrome fuel inlet intake gasket set intake bolt set and carb stud kit. The manifold and carbs are available with a standard satin finish or with our bright EnduraShine chrome-like finish for long lasting show quality looks.
Specifications
| WIDTH | 14.37 |
|---|---|
| HEIGHT | 14.8 |
| LENGTH | 26.12 |
| PROP65 | |
| WEIGHT | 34.2 |
| WARRANTY | 12 Months |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | Base Plate Gasket Thickness:0.048 IN;Base Plate Gasket Mount Hole Quantity:8;Base Plate Material:Aluminum;Carburetor Type:AVS2 Series 800 cfm;Family:Performer RPM;Finish:EnduraShine;Intake Manifold Type:Performer RPM;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Series:Performer RPM;Single Or Dual Plane Type:Single |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Intake Manifold / Carburetor Kit |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | |
| VERIFIED FITMENT |
|
Datasheet — not yet published
