air fuel and ignition

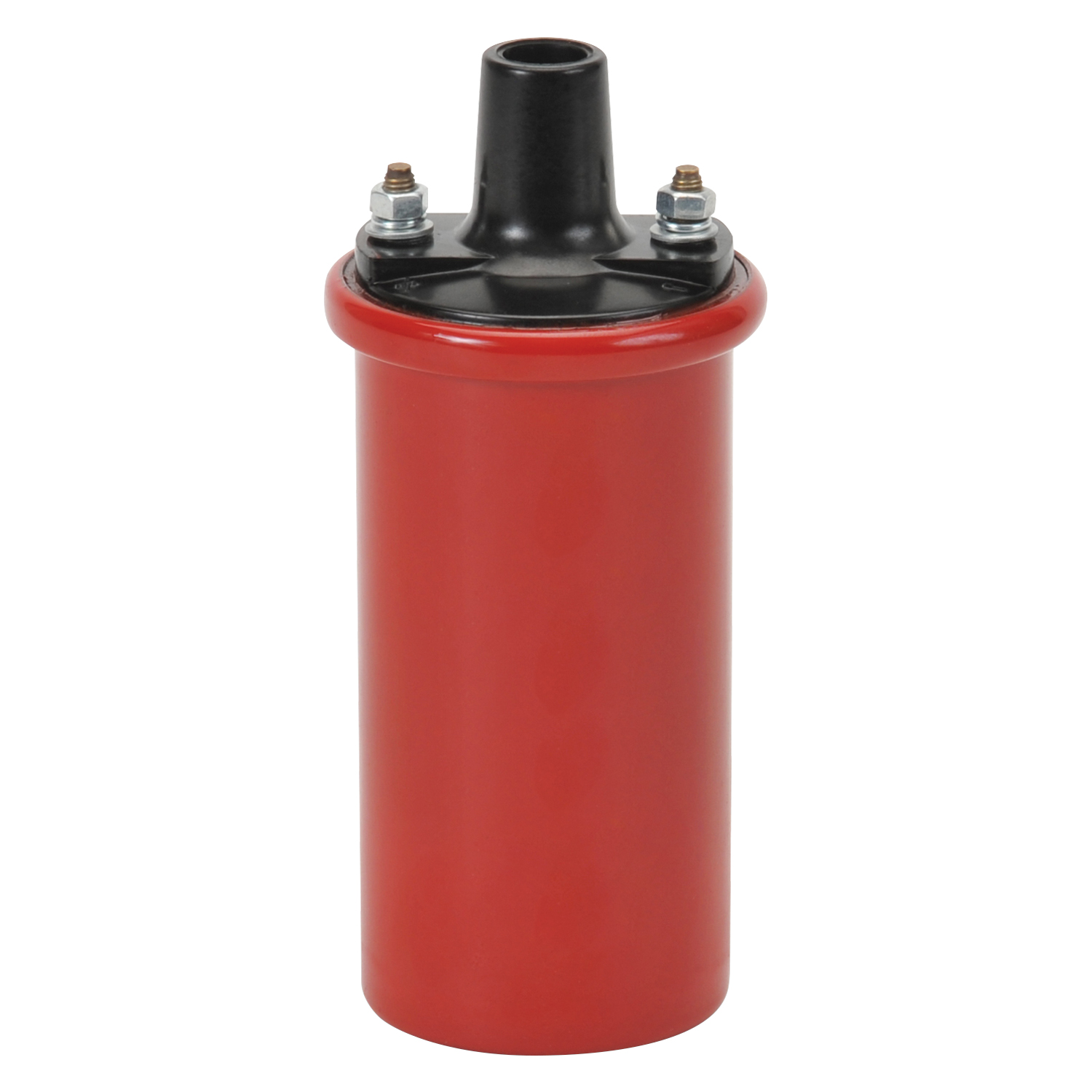

Edelbrock 22739 Universal 12V cannister-style w/ primary resistance 1.4 ohms & output of 42000V.
$49
Made to order
Add your car with the “Your car” button in the header to check fitment.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part
Edelbrock Ignition Coil #22739 is a universal 12-volt cannister-style coil designed as a high-quality direct bolt-on replacement for OEM ignition coils. This advanced coil has a primary resistance of 1.4 ohms with an output of 42 000 volts. Internally each Edelbrock Coil features heavy-duty primary and secondary windings for higher energy and greater spark that can help to provide quicker starts with improved idle quality. With a durable oil-filled housing Edelbrock Coils are resistant to heat shock and vibration with an effective operating range of 0 to 6 500 RPM.
Specifications
| WIDTH | 3.125 |
|---|---|
| HEIGHT | 6 |
| LENGTH | 3.125 |
| WEIGHT | 2.4 |
| WARRANTY | 12 Months |
| EMISSIONS | CARB Eligible |
| PCDB CATEGORY | Ignition |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Ignition Coil |
| VOLTAGE | 12 2H |
| MOUNTING POSITION | Cylinder Head |
| IGNITION TYPE | Distributorless |
| COIL SHAPE | Round |
| COIL TYPE | Canister |
| COIL WIRE INCLUDED | No |
| OIL FILLED | Yes |
| REQUIRES EXTERNAL RESISTOR | No |
| MOUNTING HARDWARE INCLUDED | No |
| MOUNT TYPE | Plug |
| PRIMARY RESISTANCE | 1.4 82 |
| TERMINAL QUANTITY | 1 |
| CONNECTOR GENDER | Male |
| TERMINAL GENDER | Female |
| 7642 | 6500 R3 |
| MOUNTING BRACKET INCLUDED | No |
| MATERIAL | Steel |
| MAXIMUM VOLTAGE | 42000 |
| QUANTITY | Sold Individually |
| RATIO | 94:1 Turns |
| RGL | WARNING: This product can expose you to Chromium which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov. |
| SECONDARY RESISTANCE | 9.2 B49 |
| TERMINAL TYPE | Socket |
| VERIFIED FITMENT |
|
Datasheet — not yet published
