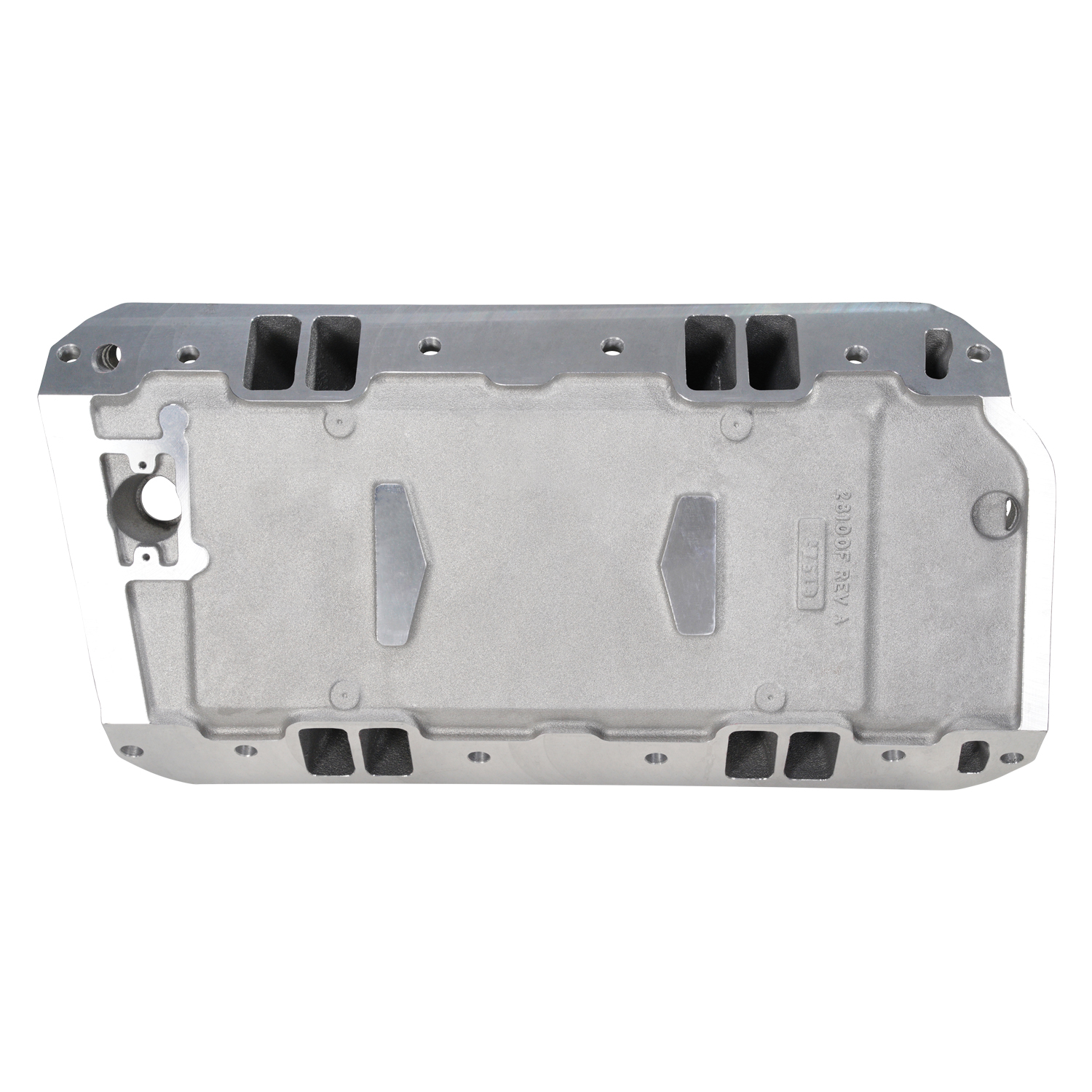

Edelbrock 28110 Victor Jr. Intake Manifold #28110 For 1970-91 AMC 304-401 Carbureted V8, Satin
$620
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part
Edelbrock part #28110 Victor Jr. AMC intake manifold is designed for 1970-91 AMC 304-401 c.i.d. V8 engines in Carbureted applications.
Specifications
| WIDTH | 14.5 |
|---|---|
| HEIGHT | 7.25 |
| LENGTH | 22.5 |
| PROP65 | |
| WEIGHT | 31.1 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Gasket Or Seal Included:No;Mounting Hole Quantity:4;Single Or Dual Plane Type:Single Plane;Center Maximum Height:5.74 IN;EGR Port:No;CNC Ported:No;Angle:(Carb) 0 DD;Basic Operating RPM Range:3500-7500 R3;Bolt Hole Centerline To Port Floor:0.97 IN;Bolt Hole Centerline To Port Roof:1.16 IN;Finish:Satin;Flange Type:4150;Front Maximum Height:(A) 5.74 IN;Mounting Hole Diameter:(Carb Bolt) 5/16-18 UNC;Mounting Hole Quantity:(Carb Bolt) 4;Port Exit Dimensions:1.06 x 2.13 IN;Quantity:Sold Individually;Rear Maximum Height:(B) (Measured To Engine Block) 5.74 IN;Recommended Use:Carbureted Applications;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Series:Victor;Vehicle Model:AMC |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Intake Manifold |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 28110.pdf |
Datasheet — not yet published
