Edelbrock 2897 Super Victor II BBC Intake Manifold V8 10.2 Deck
$720
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

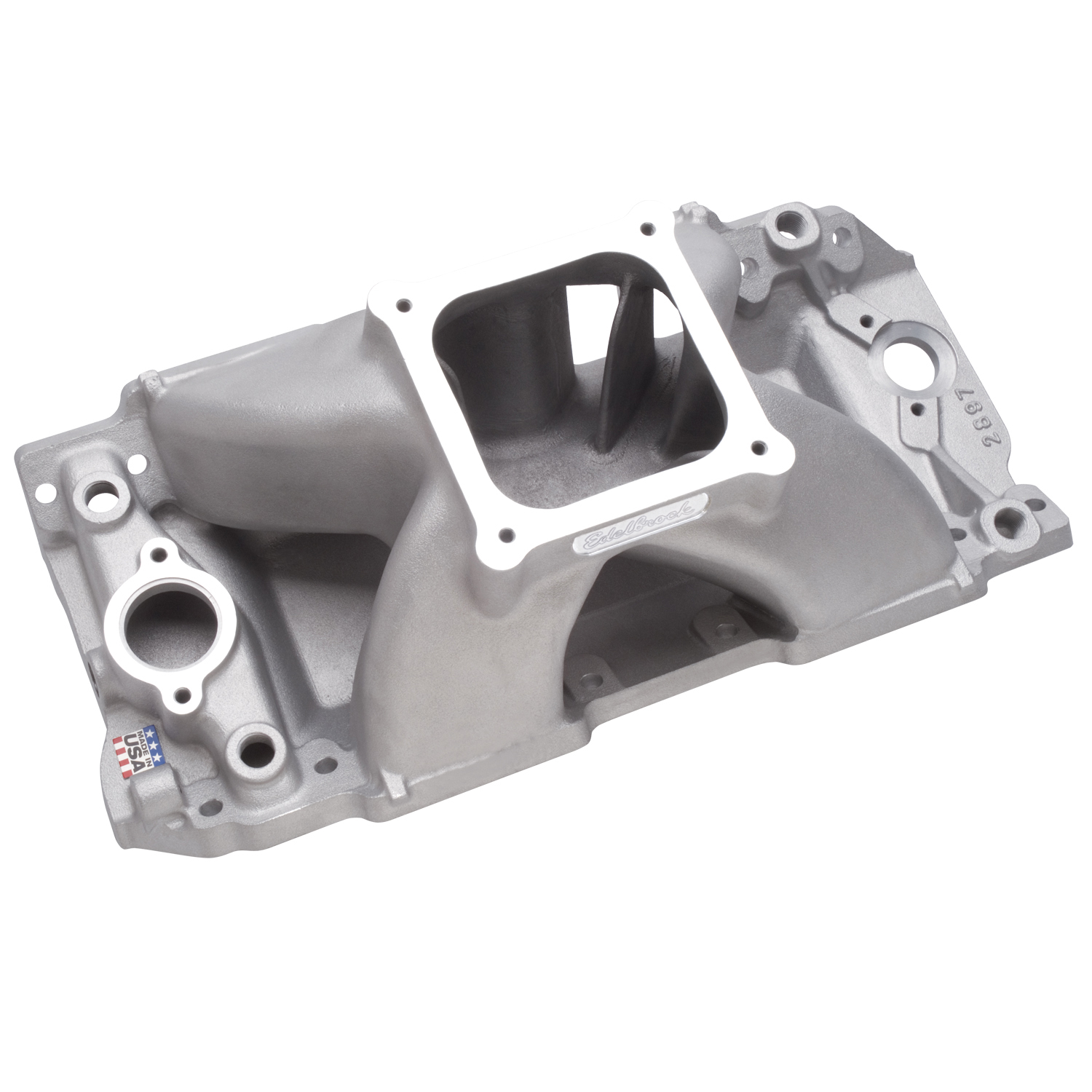

Edelbrock part #2897 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy engines using the latest design conventional rectangular port heads. This single-plane intake manifold is ideal for any 1 000+ horsepower drag race engine with high air flow requirements. Manifold #2897 features 5.38 square-inches of runner area at the plenum. Designed for use on tall-deck (10.2") blocks without manifold spacers and accepts standard height distributors. This manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops. Modern casting techniques create smooth thin extended divider walls for "out of the box" performance just port match and go! Edelbrock engineers work in conjunction with leading engine builders from all forms of competition to design manifolds compatible with the latest technology. The Edelbrock Super Victor II #2897 also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality every Edelbrock intake manifold is cast and machined in the USA.
Specifications
| WIDTH | 16.25 |
|---|---|
| HEIGHT | 9.5 |
| LENGTH | 24.25 |
| PROP65 | |
| WEIGHT | 27.95 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Gasket Or Seal Included:No;Single Or Dual Plane Type:Single Plane;Front Maximum Height:7.500 IN;Center Maximum Height:7.500 IN;Rear Maximum Height:7.500 IN;EGR Port:No;CNC Ported:No;Basic Operating RPM Range:3500-8500 R3;Finish:Satin;Flange Type:4500;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Series:Victor;Vehicle Model:Chevrolet |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Intake Manifold |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 2897.pdf |
