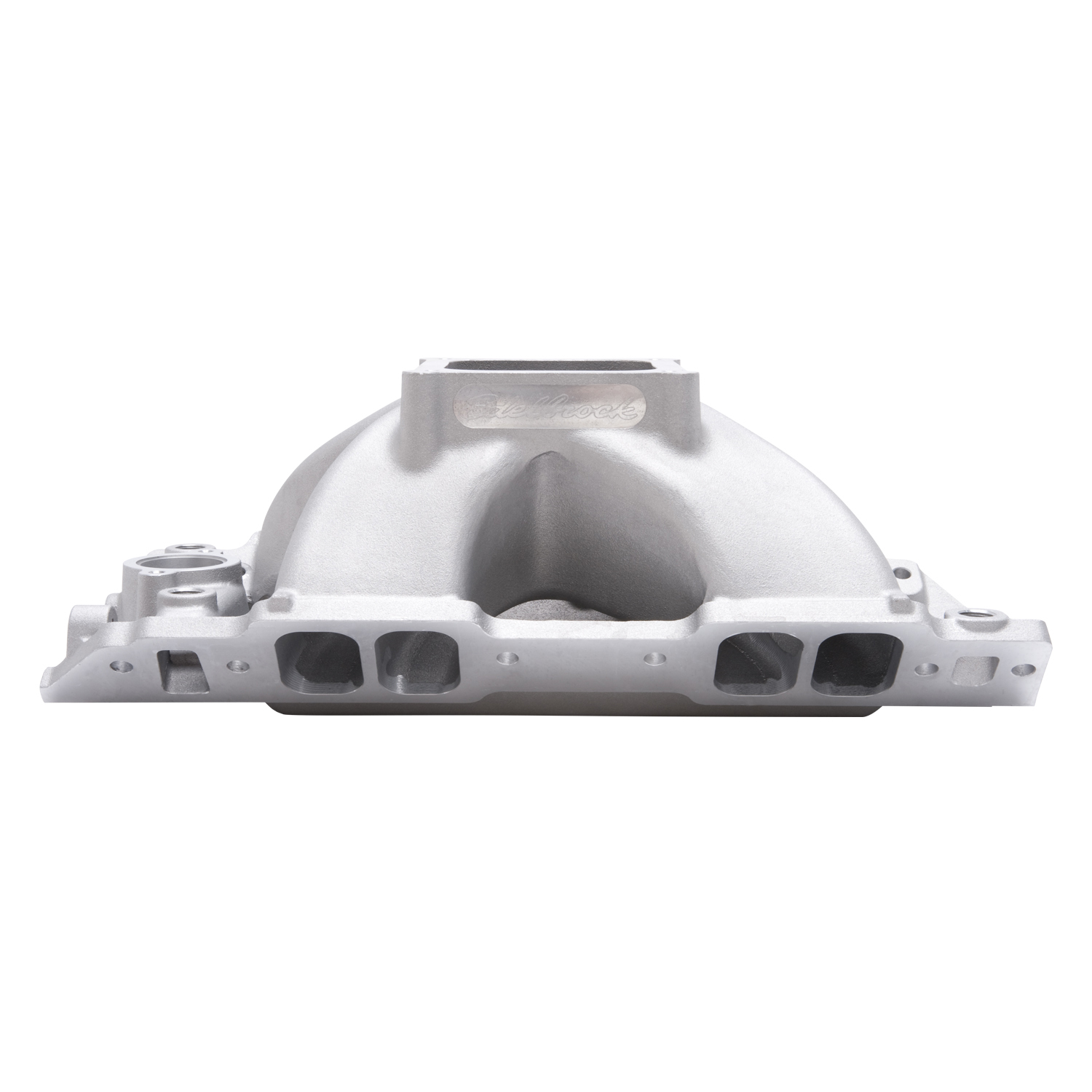

Edelbrock 28972 Super Victor II Intake Manifold for BBC 10.2" Tall Deck CNC Port Matched
$915
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part
Edelbrock part #28972 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy Tall-Deck (10.2") engines using the latest design conventional port heads. These single-plane intake manifolds are ideal for any 1 000+ horsepower drag race engine with high air flow requirements. This manifold is CNC port matched for use with cylinder head #61409 and features 5.38 square inches of runner area at the plenum. This manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops.
Specifications
| WIDTH | 16.25 |
|---|---|
| HEIGHT | 9.5 |
| LENGTH | 24.25 |
| PROP65 | |
| WEIGHT | 27.95 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Gasket Or Seal Included:No;Single Or Dual Plane Type:Single Plane;Front Maximum Height:7.500 IN;Center Maximum Height:7.500 IN;Rear Maximum Height:7.500 IN;EGR Port:No;CNC Ported:Yes;Basic Operating RPM Range:3500-8500 R3;Finish:Satin;Flange Type:4500;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Series:Victor;Vehicle Model:Chevrolet |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Intake Manifold |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 28972.pdf |
Datasheet — not yet published
