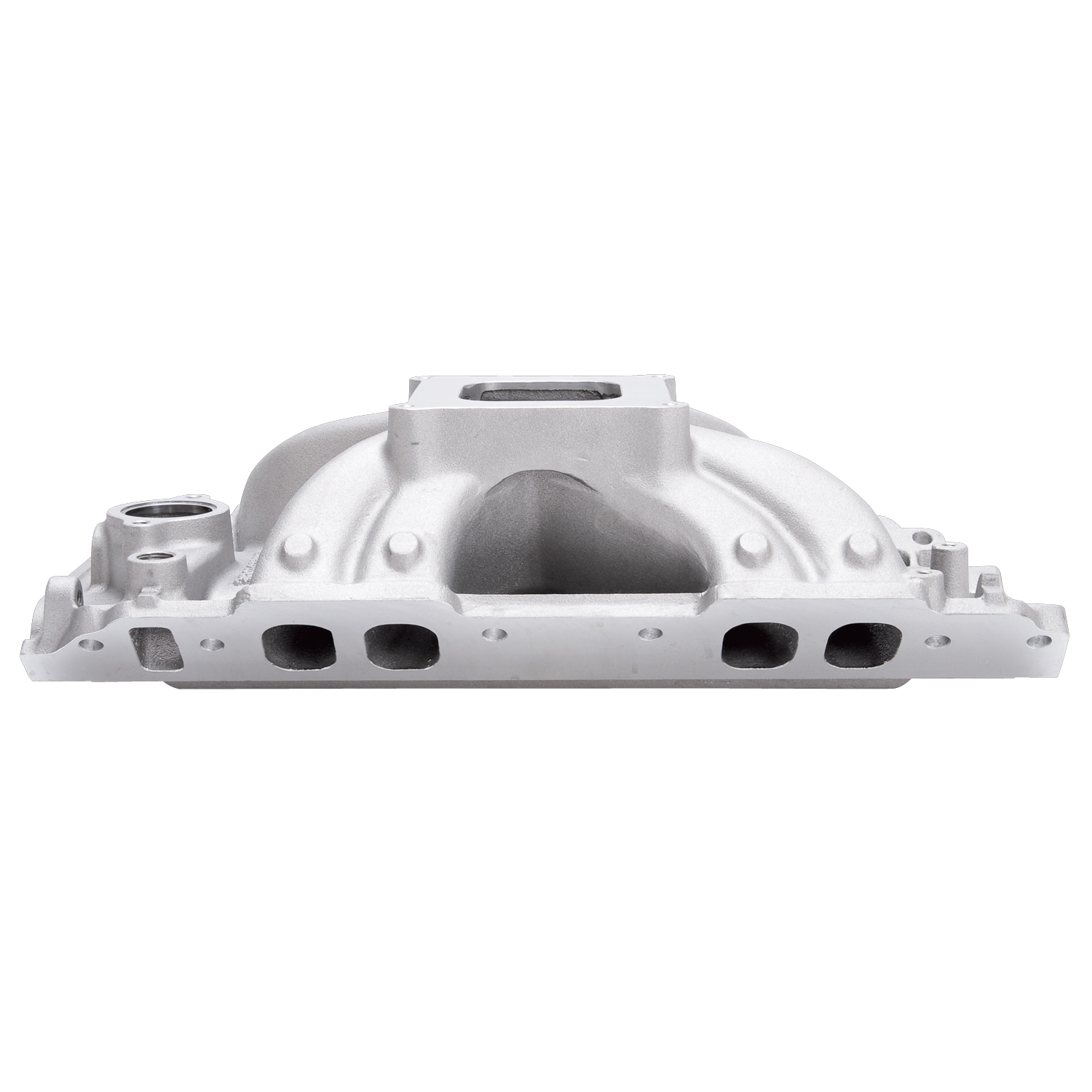

Edelbrock 2904 Victor Jr. 454-O Intake Manifold Big-Block Chevy
$490
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
Edelbrock part #2904 Victor Jr. 454-O intake manifold is designed for competition 396-502 big-block Chevys with large oval-port heads (1975 & earlier). Features include extended runner dividers smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. This intake manifold is a single plane 4150 flange competition manifold designed to fit standard deck blocks from 1965 to present. It is designed to be matched with our Edelbrock/Musi Victor 24-degree Pro-Port CNC heads #61419 or #61409 for 950+ hp out-of-the-box potential!
Specifications
| WIDTH | 14.75 |
|---|---|
| HEIGHT | 7.5 |
| LENGTH | 23.625 |
| PROP65 | |
| WEIGHT | 23.25 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Gasket Or Seal Included:No;Single Or Dual Plane Type:Single Plane;Front Maximum Height:5.960 IN;Center Maximum Height:5.960 IN;Rear Maximum Height:5.960 IN;EGR Port:No;CNC Ported:No;Basic Operating RPM Range:3500-7500 R3;Finish:Satin;Flange Type:4150;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Series:Victor;Vehicle Model:Chevrolet |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Intake Manifold |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 2904.pdf |
Datasheet — not yet published
