Edelbrock 29145 Victor E-Tec EFI Small Block Chevy Intake Manifold
$620
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part

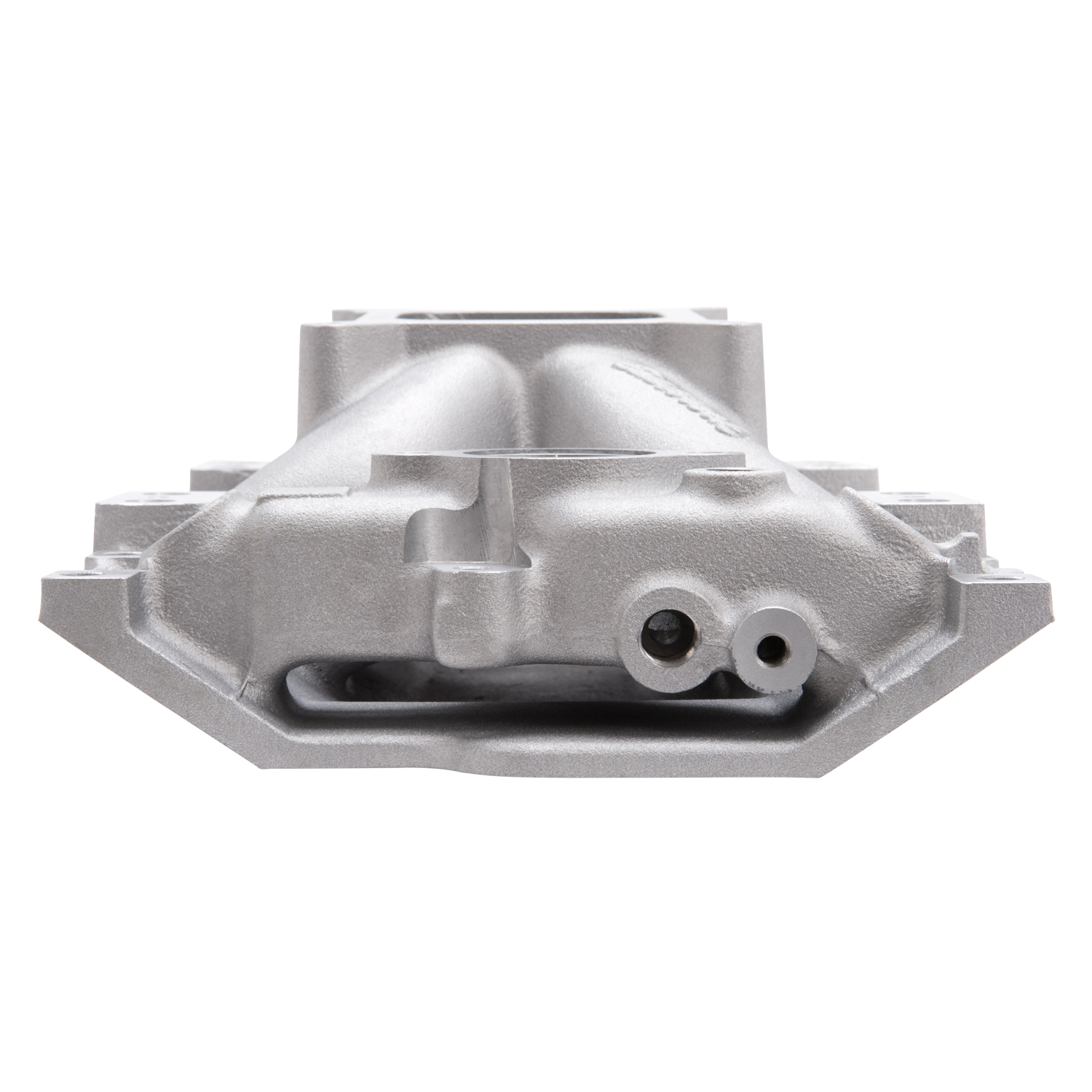

Edelbrock part #29145 Victor E-Tec EFI intake manifold is a Vortec/E-Tec version of our popular Victor E 23 degree EFI intake manifold. This manifold features a similar deep plenum and tapered cross-sections like the Victor E 23 degree and is compatible with square-bore throttle bodies. This intake manifold is one inch shorter than the existing Super Victor E-Tec EFI #29135. It also has provisions for water bypass so it can be used on Vortec engine blocks and accepts OEM alternator brackets.
Specifications
| WIDTH | 10.5 |
|---|---|
| HEIGHT | 5.7 |
| LENGTH | 22.5 |
| PROP65 | |
| WEIGHT | 19.25 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Gasket Or Seal Included:No;Single Or Dual Plane Type:Single Plane;Front Maximum Height:4.580 IN;Center Maximum Height:4.580 IN;Rear Maximum Height:4.580 IN;EGR Port:No;CNC Ported:No;Basic Operating RPM Range:2500-8000 R3;Finish:Satin;Flange Type:4150;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Series:Victor;Vehicle Model:Chevrolet |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Intake Manifold |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 29145.pdf |
