engine heads and blocks
Edelbrock 2921 Victor Jr. 302 Intake Manifold Small-Block Ford
$475
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part

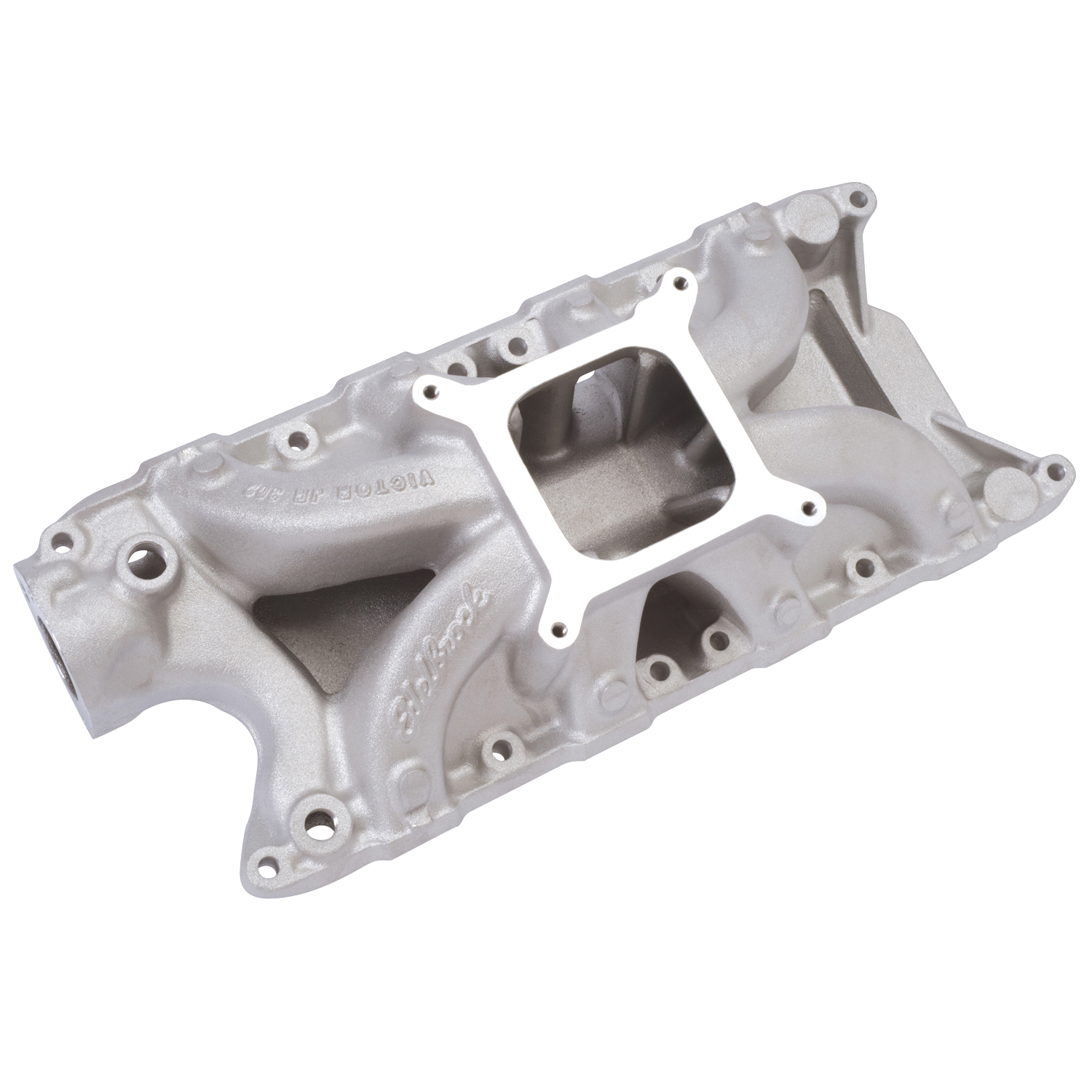

Edelbrock part #2921 Victor Jr. 302 intake manifold is designed for Ford 289-302 competition engines using modified stock cast iron or aftermarket Windsor-style cylinder heads such as Edelbrock #60259 and #77169 or equivalent. This intake manifold has bosses for rear water crossover. Port exit size at cylinder head is 1.08" x 1.90" with extra material to accommodate a 1.18" x 2.10" opening. This Victor Jr. is a single-plane high-rise intake designed for maximum race-winning power at higher engine speeds.
Specifications
| WIDTH | 14.75 |
|---|---|
| HEIGHT | 7.5 |
| LENGTH | 23.625 |
| PROP65 | |
| WEIGHT | 18.8 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Gasket Or Seal Included:No;Single Or Dual Plane Type:Single Plane;Front Maximum Height:5.500 IN;Center Maximum Height:5.500 IN;Rear Maximum Height:5.500 IN;EGR Port:No;CNC Ported:No;Basic Operating RPM Range:3500-8000 R3;Finish:Satin;Flange Type:4150;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Series:Victor;Vehicle Model:Ford |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Intake Manifold |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 2921.pdf |
Datasheet — not yet published
