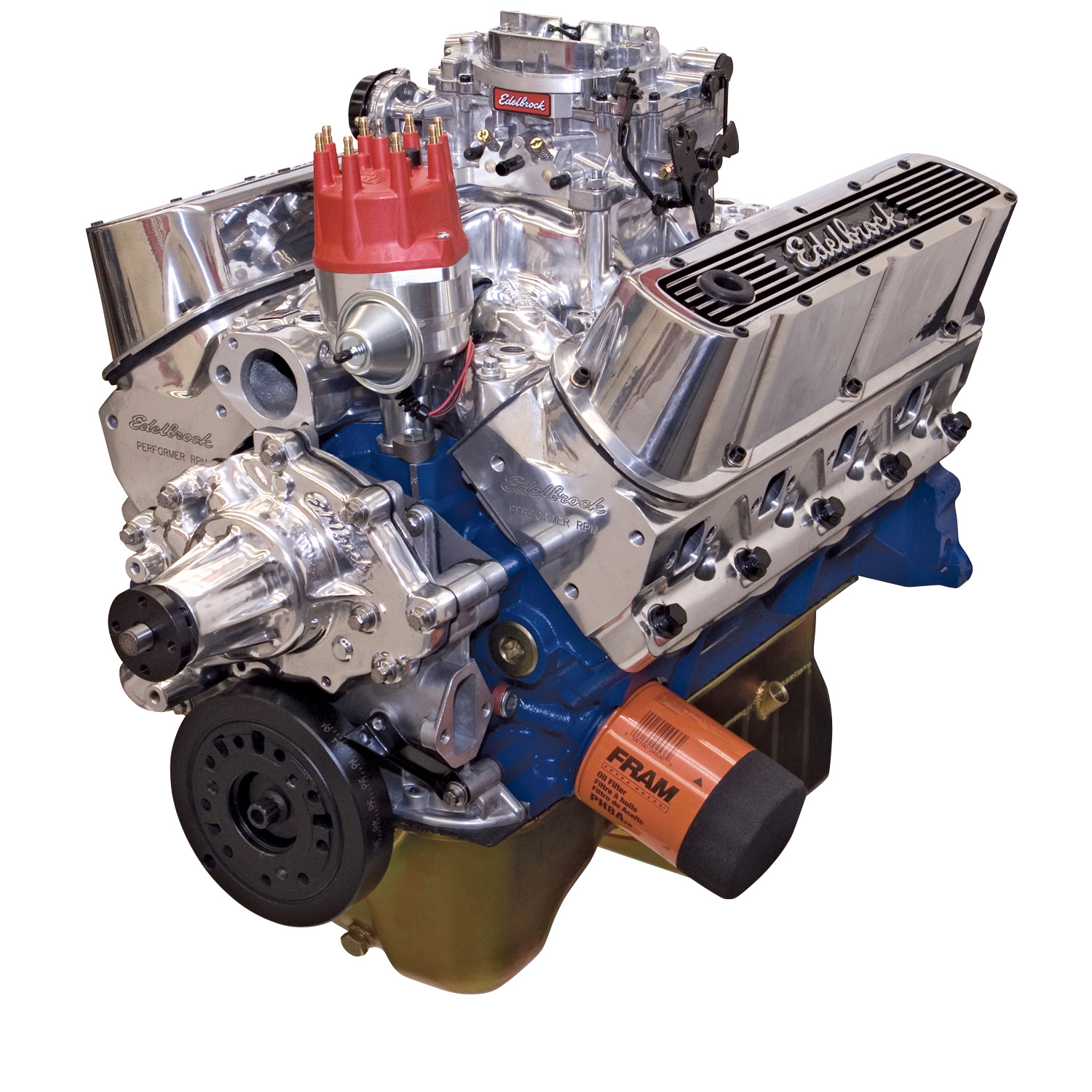

Edelbrock 45271 Performer RPM 347 Ford Crate Engine
$13,586
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
Edelbrock part #45271 Performer RPM small-block Ford 347 crate engine offers the best of quality and performance with 438 HP & 413 ft/lbs. of torque. This engine combines a Dart cast iron 4 bolt main block and a forged Scat rotating assembly with the Edelbrock Power Package. This Performer RPM 347 engine includes a Milodon oil pan and pickup designed for use with 1974 and later applications as well as street rods that require a rear sump to clear the crossmember and/or suspension Engine Specifications: - Finish: Polished - Displacement: 347 c.i.d. - Horsepower: 438 hp - Torque: 413 ft-lbs. - Compression: 9.5:1 - Block: Dart Small-block (8.2" deck height) - Crankshaft: Scat Forged Steel - Pistons: Scat Forged - Camshaft: Rollin' Thunder Hydraulic Roller #2281 - Rocker Arms: 1.6:1 Roller #77780 - Manifold: RPM Air-Gap #75211 - Cylinder Heads: Performer RPM #602515 - Carburetor: Thunder Series AVS 800 cfm - Water Pump: Victor series aluminum #8846 - Distributor: Included - Valve Covers: Elite II - Warranty: 2-year / Unlimited mileage
Specifications
| WIDTH | 27 |
|---|---|
| HEIGHT | 31 |
| LENGTH | 40 |
| PROP65 | |
| WEIGHT | 430 |
| WARRANTY | 24 Months |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | Throttle Body Included:No;Grade Type:Performance;Main Bearing Cap Bolt Quantity:4;Spark Plugs Included:No;Flywheel Included:No;Compression Ratio:9.5:1;Timing Cover Included:Yes;Harmonic Balancer Included:Yes;Cylinder Head Material:Aluminum;Air Cleaner Type:Not Included;Camshaft Type:Rollin' Thunder Hydraulic Roller;Carburetor Choke Type:Electric;Carburetor Type:Thunder AVS2 800 CFM Satin;Construction Type:Assembled;Crankshaft Material:Forged Steel;Cylinder Head Type:Performer RPM;Displacement:347 CID;Distributor Included:Yes;Engine Block Material:Cast Iron;Hardware Included:Yes;Horsepower:438 HJ;Intake Manifold Type:Performer RPM Air-Gap Dual 4150 Polished;Manifold Material:Aluminum;Oil Filter Included:Yes;Oil Pan Included:Yes Rear Sump;Piston Type:Forged Aluminum;Plug Wire and Boot Included:No;Quantity:Sold Individually;Rear Main Seal Type:1-Piece;RGL:WARNING: This product can expose you to Chromium Lead and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Rocker Arm Ratio:1.6:1;Rocker Arm Type:Roller;Torque:413;Type:Small-Block Ford;Universal Or Specific Fit:Specific Fit;Valve Cover Included:Yes;Valve Cover Material:Cast Aluminum;Valve Cover Type:Elite II Tall Profile Polished;Water Pump Included:Yes Standard;Wire Harness Included:No |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Complete Assembly |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | crate_engine_valve_adjust.pdf |
