engine heads and blocks
Edelbrock 45474 Performer RPM 347 Ford Crate Engine
$14,193
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

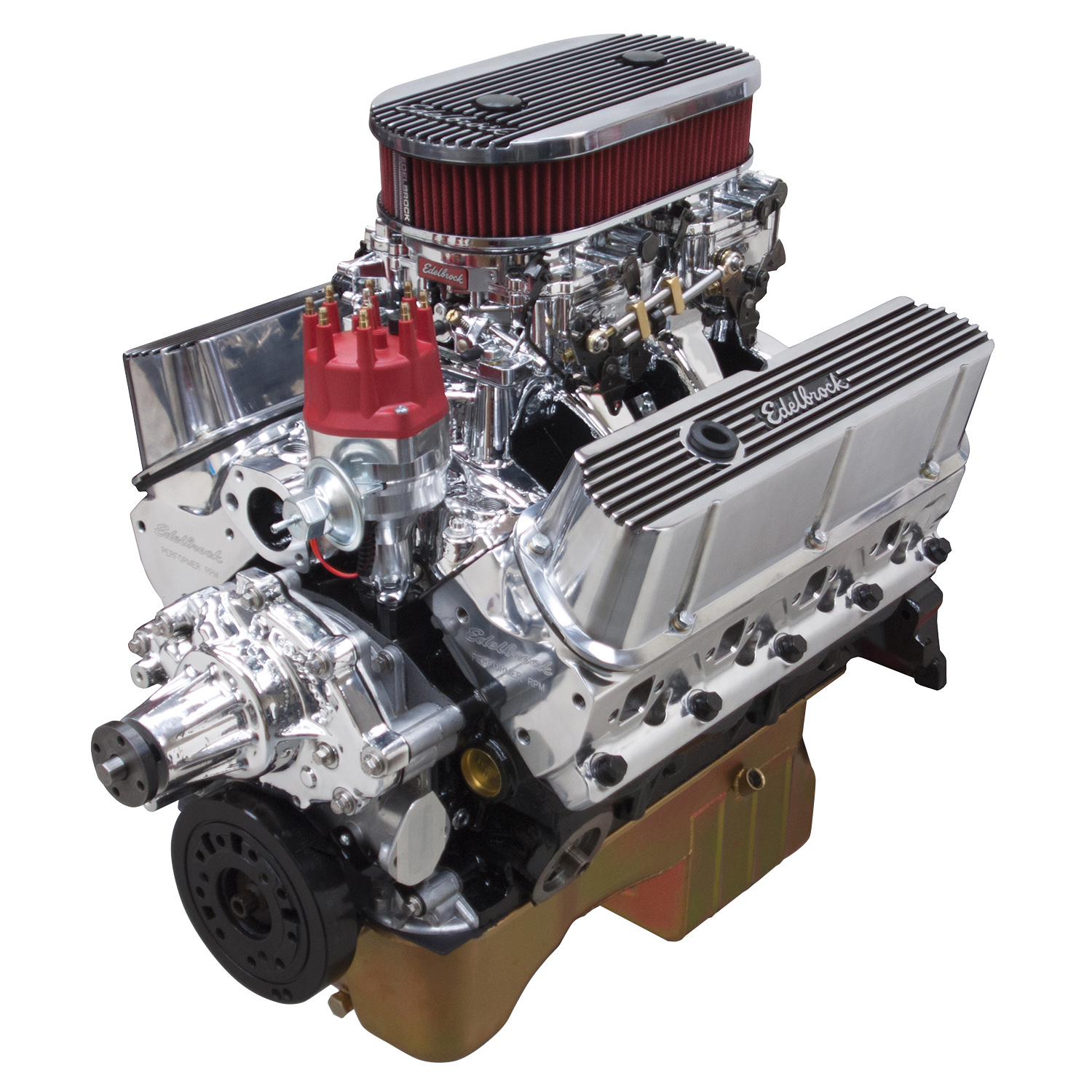

Edelbrock part #45474 Performer RPM Dual-Quad small-block Ford 347 crate engine offers the best of quality and performance with 438 HP & 413 ft/lbs. of torque right out of the crate. This 347 engine combines a Dart cast iron 4 bolt main block and a forged Scat rotating assembly which is then paired with our proven Edelbrock Power Package parts. This Performer RPM 347 engine includes a Milodon oil pan and pickup designed for use with 1974 and later applications as well as street rods that require a rear sump to clear the crossmember and/or suspension. Engine Specifications: - Finish: EnduraShine - Displacement: 347 c.i.d. (4.030" bore x 3.400" stroke) - Horsepower: 438 hp - Torque: 413 ft-lbs. - Compression: 9.5:1 - Block: Small-block (8.2" deck height) - Crankshaft: Forged Steel - Pistons: Forged - Camshaft: Rollin' Thunder Hydraulic Roller #2281 - Rocker Arms: 1.6:1 Roller #77780 - Manifold: RPM Air-Gap Dual-Quad #75354 - Cylinder Heads: Performer RPM #602515 - Carburetor: Thunder Series AVS - Water Pump: Victor series aluminum #88414 - Distributor: Included - Valve Covers: Elite II - Warranty: 2-year / Unlimited mileage
Specifications
| WIDTH | 27 |
|---|---|
| HEIGHT | 31 |
| LENGTH | 40 |
| PROP65 | |
| WEIGHT | 460 |
| WARRANTY | 24 Months |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | Throttle Body Included:No;Grade Type:Performance;Main Bearing Cap Bolt Quantity:4;Spark Plugs Included:No;Flywheel Included:No;Compression Ratio:9.5:1;Timing Cover Included:Yes;Harmonic Balancer Included:Yes;Cylinder Head Material:Aluminum;Air Cleaner Type:Elite II;Camshaft Type:Rollin' Thunder Hydraulic Roller;Carburetor Choke Type:Electric Or Manual;Carburetor Type:Thunder AVS2 500 CFM EnduraShine;Construction Type:Assembled;Crankshaft Material:Forged Steel;Cylinder Head Type:Performer RPM;Displacement:347 CID;Distributor Included:Yes;Engine Block Material:Cast Iron;Hardware Included:Yes;Horsepower:449 HJ;Intake Manifold Type:Performer RPM Air-Gap Dual-Quad/Multi-Carb 4150 EnduraShine;Manifold Material:Aluminum;Oil Filter Included:Yes;Oil Pan Included:Yes Rear Sump;Piston Type:Forged Aluminum;Plug Wire and Boot Included:No;Quantity:Sold Individually;Rear Main Seal Type:1-Piece;RGL:WARNING: This product can expose you to Chromium Lead and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Rocker Arm Ratio:1.6:1;Rocker Arm Type:Roller;Torque:417;Type:Small-Block Ford;Universal Or Specific Fit:Specific Fit;Valve Cover Included:Yes;Valve Cover Material:Cast Aluminum;Valve Cover Type:Elite II Tall Profile Polished;Water Pump Included:Yes;Wire Harness Included:No |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Complete Assembly |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | crate_engine_valve_adjust.pdf |
Datasheet — not yet published
