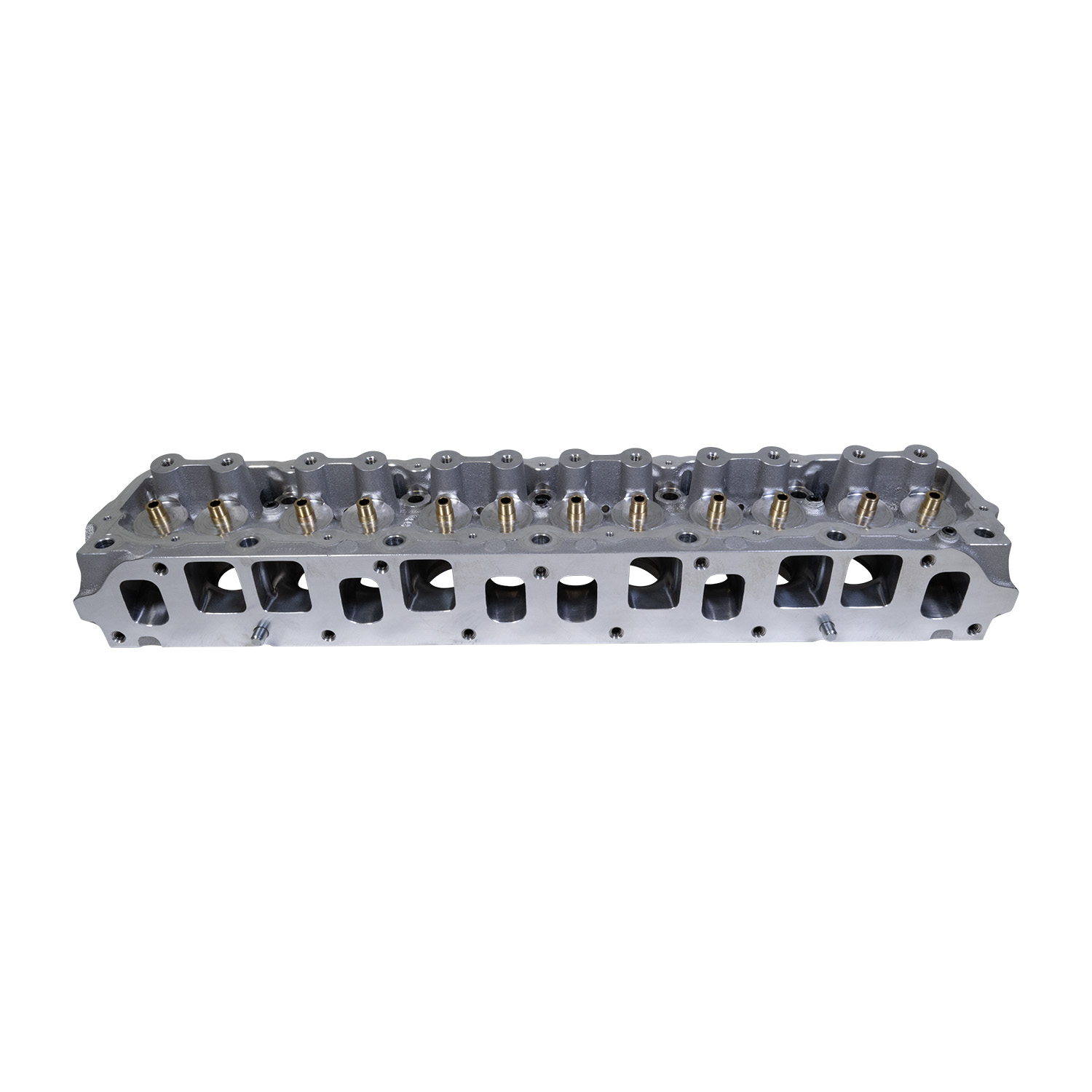

Edelbrock 50149 Victor CNC Cylinder Head for Jeep 4.0L Inline-Six Engine
$2,838
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
This Victor CNC cylinder head for Jeep 4.0L inline-six engines is a fully CNC-ported version of the popular 50169 Performer cylinder head Edelbrock has been producing for the past 19 years. The head features a 182 cc intake port a 77 cc exhaust port and a 55 cc combustion chambers. As an additional improvement the Victor CNC has a valve job to match up with the COMP Cams LS-style 8 mm valvetrain. Utilizing the LS-style valves opens a larger variety of valve spring combinations to fit any camshaft profile. These heads are manufactured with premium materials and machined to the industry’s tightest tolerances. Features include ductile-iron valve seats and fully CNC-machined ports for maximum airflow. The premium manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity to securely seal the valves eliminate leak down and increase cylinder pressures during engine operation.
Specifications
| WIDTH | 8.75 |
|---|---|
| HEIGHT | 7.5 |
| LENGTH | 33.5 |
| PROP65 | Y |
| WEIGHT | 36.15 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Exhaust Runner Volume:77 CCM;Intake Valve Stem Diameter:2 IN;Exhaust Valve Stem Diameter:1.5 IN;Intake Valve Angle:10 DD;Exhaust Valve Angle:10 DD;Intake Port Shape:Square;Exhaust Port Shape:Square;Valve Guide Material:Manganese Bronze;CNC-Machined Intake Runner:Yes;CNC-Machined Exhaust Runner:Yes;CNC-Machined Combustion Chamber:Yes;Rocker Arm Studs/Bolts Included:No;Grade Type:Performance;Combustion Chamber Volume:55 CCM;Intake Runner Volume:182 CCM;Guide Plates Included:No;Valve Springs Included:No;CNC Machined Exhaust Port:Yes;CNC Machined Intake Port:Yes;Cross sell / Upsell Part Numbers:5703 - Sure Seat Valve Springs 7350 - Engine Gasket Set (Head / Intake / Exhaust / Valve Cover) for Jeep 163-301-5 - Xtreme 4x4 205/213 .488/.507 Hydraulic Cam for Jeep 4.0L 1999-06 85332 - Edelbrock E-Series Cylinder Head Bolt Kit #85332 for Jeep 4.0L Inline Six Engine;Cylinder Head Style:Bare;Exhaust Port Location:Raised;Exhaust Valve Job Diameter:1.5 IN;Intake Port Location:Standard;Intake Valve Job Diameter:2 IN;Material:Aluminum 356-T6;Product Family:CNC;Product Series:Victor CNC;Prop 65 - Long Label:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Prop 65 Y/N:Y;Quantity:Sold Individually;Related Products:7348 - Cylinder Head Gasket for Jeep 7275 - Intake Manifold Gasket for 1987-06 4.0L Inline Six Jeeps 7583 - Gasket VC Cork/Rubber Jeep 87-95 4.0L 1076 - Edelbrock high quality RTV silicone 3 oz OE silicone gaskets;Retainer Lock:Not Included;Spark Plug Style:Standard;Steam Holes Drilled:No;Valve Cover Mounting Style:Perimeter bolt;Valve Guide I.D:8mm;Valve Guide Size O.D:0.500 IN;Valve Lock:Not Included;Valve Spring:Not Included |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Cylinder Head |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Edelbrock/50159_50149_InstallationInstructions_09152025.pdf |
| VERIFIED FITMENT |
|
Datasheet — not yet published
