Edelbrock 60587 NHRA Legal Pontiac Cylinder Head 72cc Bare
$819
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

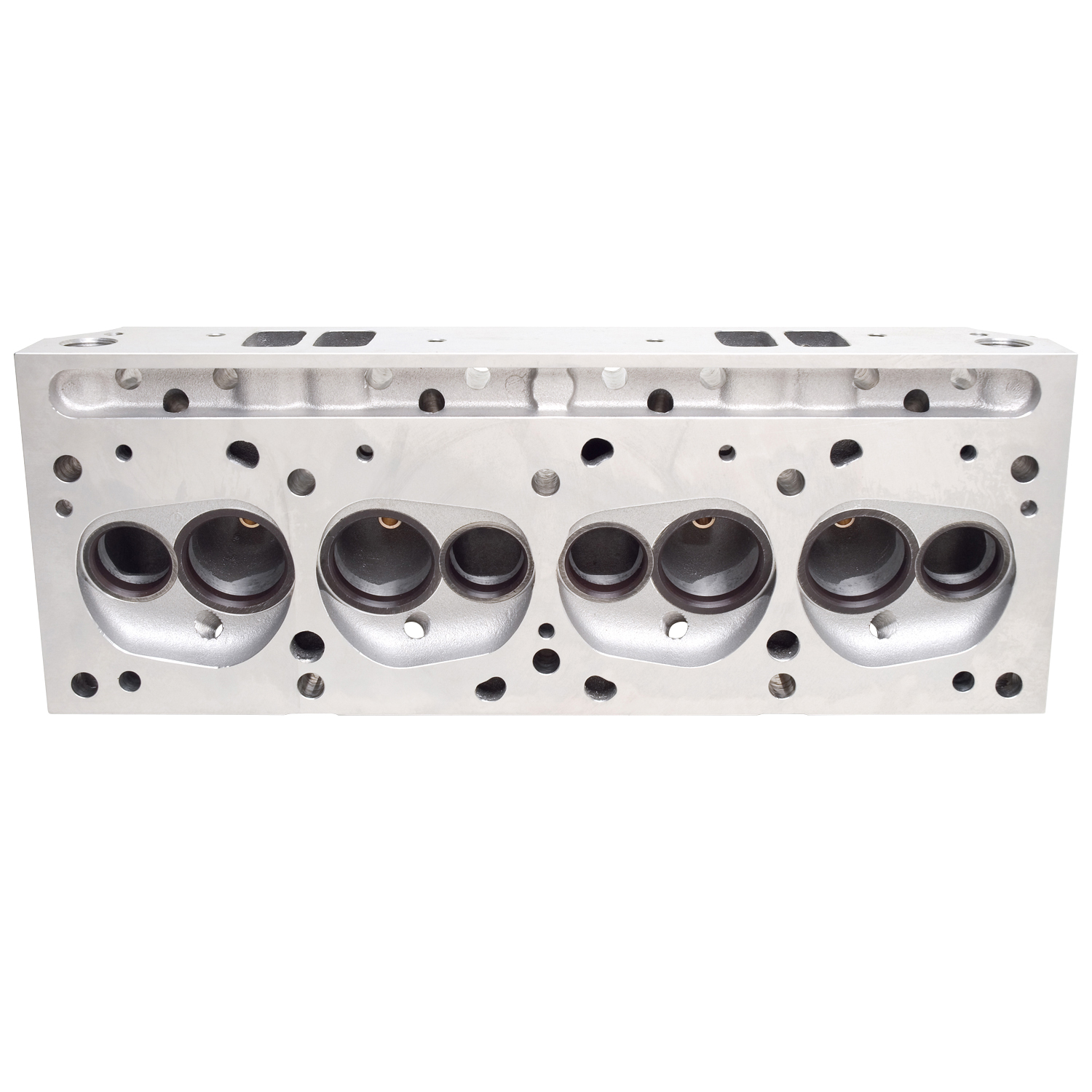

The Edelbrock #60587 Performer RPM NHRA Stock/Super Stock cylinder heads are designed for outstanding performance gains in 1962-79 389-455 c.i.d. Pontiac engines. They feature 87cc combustion chambers designed to maximize performance while using less expensive low-octane fuel with a streetable 9.5:1 compression ratio. They are patterned after the 1969-70 Ram Air IV Pontiac cylinder head. Performer RPM #60587 is not port matched or bowl blended and is NHRA accepted for Stock & Super Stock. All Edelbrock Cylinder Heads are designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!
Specifications
| WIDTH | 11.5 |
|---|---|
| HEIGHT | 8.5 |
| LENGTH | 26 |
| PROP65 | |
| WEIGHT | 31.4 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Push Rod Diameter:0.312 IN;Deck Height:10.250 IN;Deck Thickness:0.625 IN;Combustion Chamber Volume:72.0 CCM;Intake Runner Volume:215.0 CCM;Guide Plates Included:No;Head Casting Number:31-6056;CNC Ported:No;Product Family:Performer RPM;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Valve Angle:14 DD |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Cylinder Head |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 60587.pdf |
Datasheet — not yet published
