Edelbrock 60595 Performer Pontiac Cylinder Head 72cc Hydraulic Roller Camshaft
$1,535
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

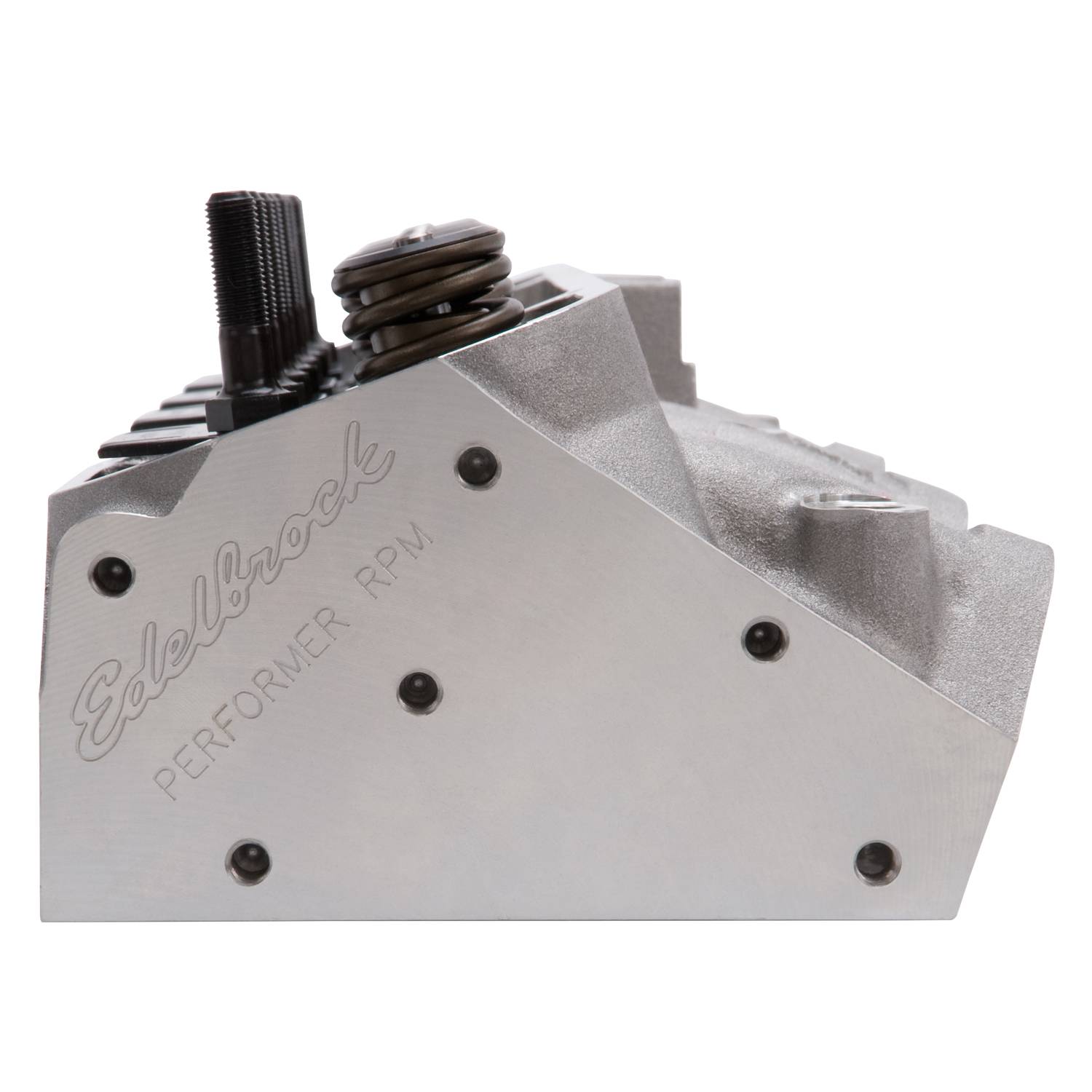

The Edelbrock #60595 Performer RPM cylinder head is designed for outstanding performance gains in 1962-79 389-455 c.i.d. Pontiac engines. They are patterned after the 1969-70 Ram Air IV Pontiac cylinder head. The Edelbrock #60595 Performer RPM head with the 72cc combustion chamber are for higher compression engines. Performer RPM head is perfect for street performance daily drivers street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs.
Specifications
| WIDTH | 10.5 |
|---|---|
| HEIGHT | 8.25 |
| LENGTH | 24.75 |
| PROP65 | |
| WEIGHT | 36.95 |
| WARRANTY | 12 Months |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | Material:Aluminum;Valve Spring Retainers Included:Yes;Valve Locks Included:Yes;Exhaust Runner Volume:175 CCM;Valve Lock Material:Chromoly Steel;Rocker Arms Included:No;Cylinder Head Gasket Included:No;Valve Cover Gasket Included:No;Rocker Arm Studs/Bolts Included:Yes;Mounting Hardware Included:No;Assembled:Yes;Grade Type:Performance;Deck Height:10.25 IN;Deck Thickness:0.625 IN;Combustion Chamber Volume:72 CCM;Intake Runner Volume:215 CCM;Intake Valve Diameter:2.11 IN;Exhaust Valve Diameter:1.66 IN;Valve Spring Diameter:1.46 IN;Valve Spring Maximum Lift:0.575 IN;Guide Plates Included:Yes;Head Casting Number:31-6056;Guide Plate Material:Chromoly Steel;Valve Springs Included:Yes;Valve Seals Included:Yes;Valves Included:Yes;Camshaft Type:Hydraulic Roller;CNC Ported:No;Construction Type:Complete;EGR Port:No;Exhaust Port Location:Standard;Guide Material:Manganese Bronze;Guide Plate Material:Hardened Steel;Horsepower:450-550 HJ;Product Family:Performer RPM;Product Series:Performer RPM;Push Rod Diameter:(Suggested) 0.3125 IN;Quantity:Sold Individually;Retainer Included:Yes;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Rocker Arm Stud Diameter:0.4375 IN;Seat Angle:Exhaust 45 deg/Intake 45 DD;Seat Material:Ductile Iron;Valve Angle:14 DD;Valve Stem Diameter:0.3438 IN |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Cylinder Head |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 60595.pdf |
Datasheet — not yet published
