Edelbrock 60609 RPM Pontiac CNC Chamber 87cc Bare
$1,173
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

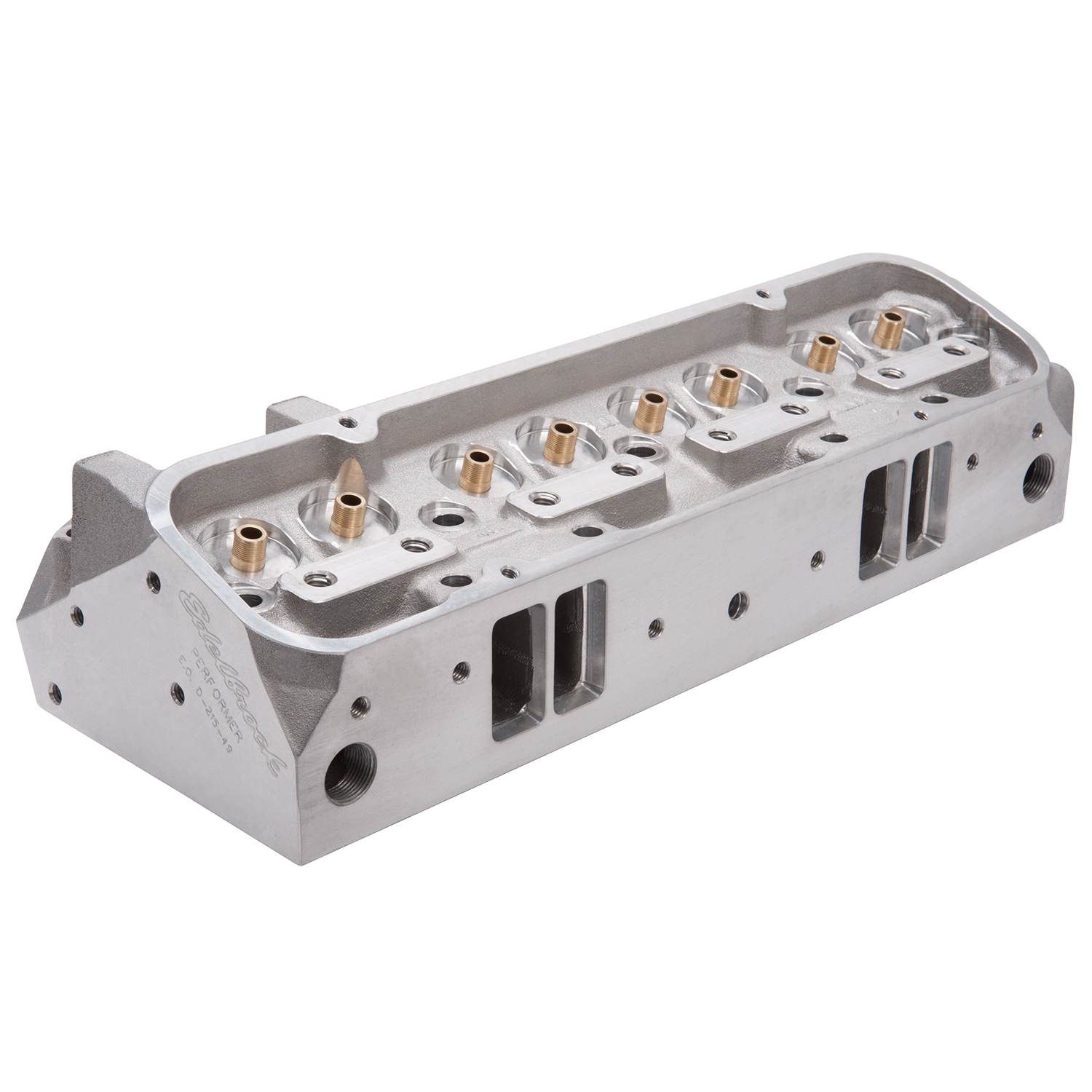

The Edelbrock #60609 Performer RPM CNC Bare Cylinder Head has the same specifications as our popular Performer RPM cylinder head for 1962-79 389-455 c.i.d. Pontiac engines but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder head is available in two chamber sizes. The 87cc chamber version is ideal for 9.5:1 engines and will deliver excellent street performance on low octane fuel. The Edelbrock #60609 Performer RPM CNC cylinder head is patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Cylinder Head.
Specifications
| WIDTH | 10.4375 |
|---|---|
| HEIGHT | 8.175 |
| LENGTH | 24.75 |
| PROP65 | |
| WEIGHT | 36.25 |
| WARRANTY | 12 Months |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | Material:Aluminum;Valve Spring Retainers Included:No;Valve Locks Included:No;Exhaust Runner Volume:175 CCM;Rocker Arms Included:No;Cylinder Head Gasket Included:No;Valve Cover Gasket Included:No;Rocker Arm Studs/Bolts Included:No;Mounting Hardware Included:No;Assembled:No;Grade Type:Performance;Deck Height:10.25 IN;Deck Thickness:0.625 IN;Combustion Chamber Volume:87 CCM;Intake Runner Volume:215 CCM;Guide Plates Included:Yes;Head Casting Number:6152F;Guide Plate Material:Chromoly Steel;Valve Springs Included:No;Valve Seals Included:Yes;Valves Included:No;CNC Ported:Yes;Construction Type:Bare;EGR Port:Yes;Exhaust Port Location:Standard;Guide Material:Manganese Bronze;Guide Plate Material:Hardened Steel;Horsepower:450-600 HJ;Product Family:Performer RPM;Product Series:Performer RPM;Quantity:Sold Individually;Retainer Included:No;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Seat Angle:Exhaust 45 deg/Intake 45 DD;Seat Material:Ductile Iron;Valve Angle:14 DD |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Cylinder Head |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
