engine heads and blocks

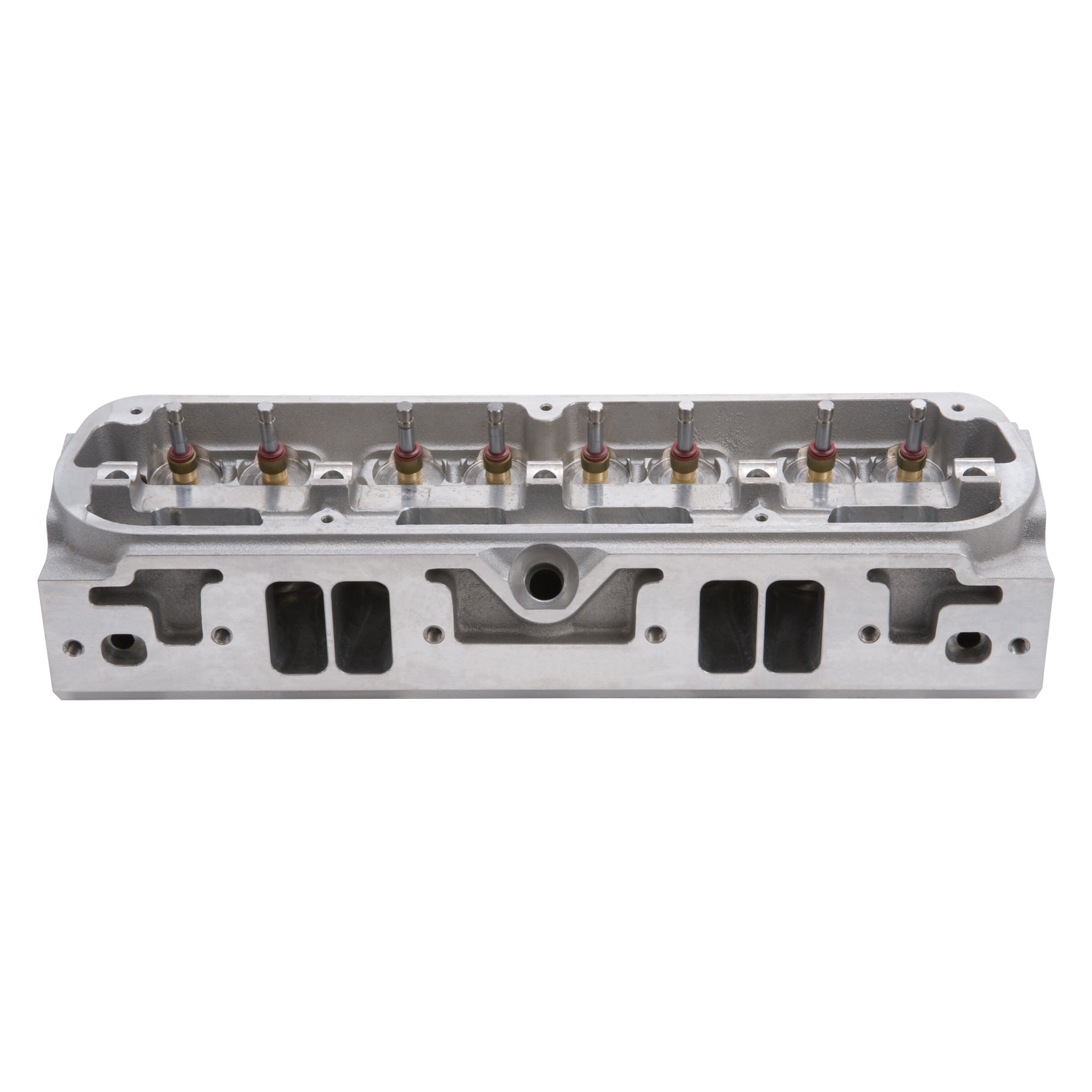

Edelbrock 61719 Victor Small-Block Chrysler Cylinder Head W/ Valves
$1,700
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
The Edelbrock #61719 Victor Series cylinder heads are for use on 1967-1991 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. These cylinder heads are an in-line valve design incorporating a 16 Deg valve angle (stock is 18 Deg ) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available; bare bare with valves complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided.
Specifications
| WIDTH | 10.4375 |
|---|---|
| HEIGHT | 8.185 |
| LENGTH | 24.75 |
| PROP65 | |
| WEIGHT | 50 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Push Rod Diameter:0.312 IN;Deck Height:9.600 IN;Deck Thickness:0.562 IN;Combustion Chamber Volume:60.0 CCM;Intake Runner Volume:225.0 CCM;Intake Valve Diameter:2.150 IN;Exhaust Valve Diameter:1.600 IN;Guide Plates Included:No;Head Casting Number:6170F;CNC Ported:No;Product Family:Victor;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Valve Angle:16 DD;Valve Stem Diameter:0.341 IN |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Cylinder Head |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 61719.pdf |
Datasheet — not yet published
