Edelbrock 61729 Victor Small-Block Chrysler Cylinder Head W/ Solid Roller Camshaft
$2,428
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

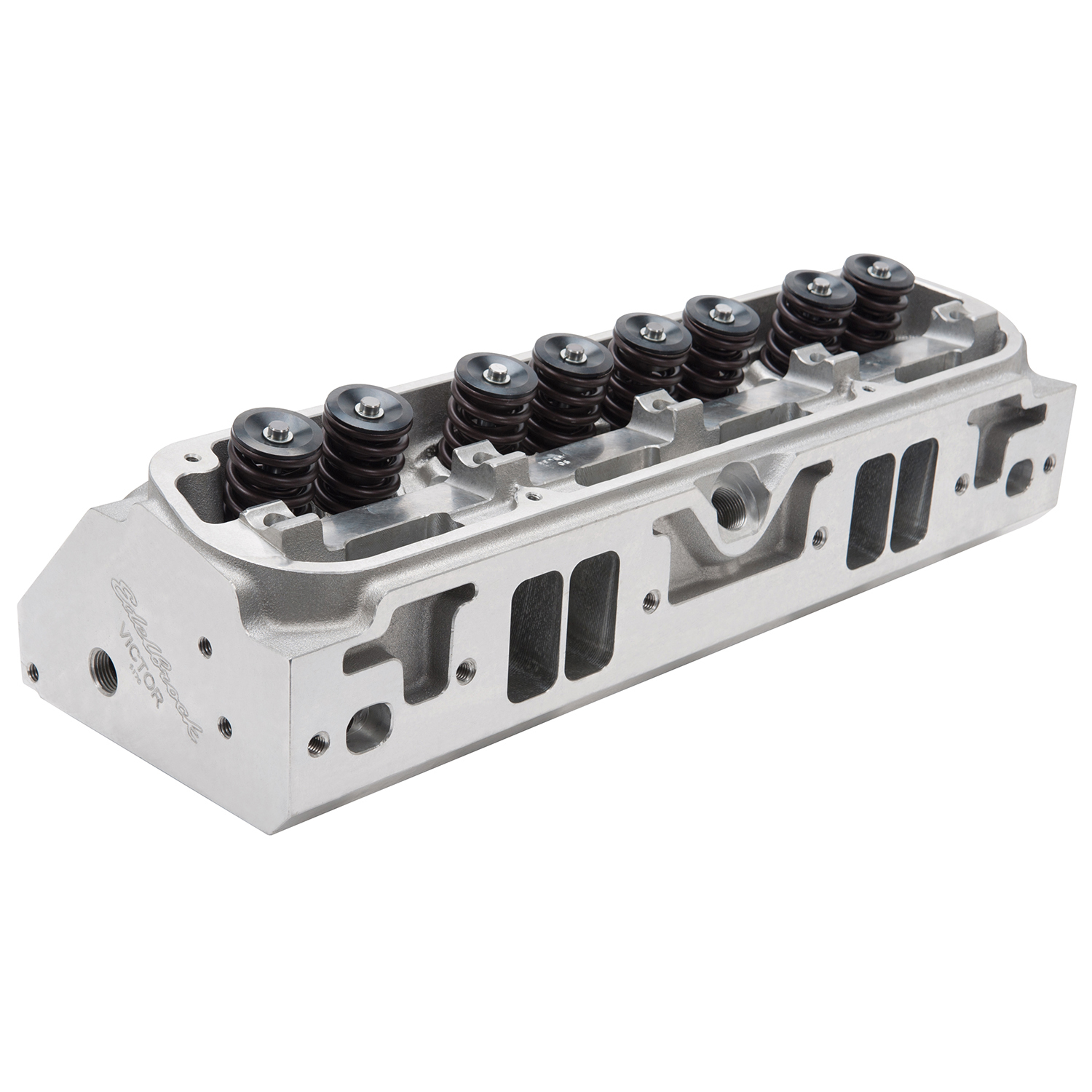

These Edelbrock #61729 Victor Series cylinder head is for use on 1967-1991 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. This cylinder head is an in-line valve design incorporating a 16deg valve angle (stock is 18deg) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available; bare bare with valves complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided.
Specifications
| WIDTH | 10.125 |
|---|---|
| HEIGHT | 7.1875 |
| LENGTH | 22.1875 |
| PROP65 | |
| WEIGHT | 50 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Valve Spring Retainers Included:Yes;Valve Locks Included:Yes;Exhaust Runner Volume:62 CCM;Valve Lock Material:Chromoly Steel;Rocker Arms Included:No;Cylinder Head Gasket Included:No;Valve Cover Gasket Included:No;Rocker Arm Studs/Bolts Included:No;Mounting Hardware Included:No;Assembled:Yes;Grade Type:Performance;Deck Height:9.6 IN;Deck Thickness:0.625 IN;Combustion Chamber Volume:60 CCM;Intake Runner Volume:225 CCM;Intake Valve Diameter:2.15 IN;Exhaust Valve Diameter:1.60 IN;Valve Spring Diameter:1.55 IN;Valve Spring Maximum Lift:0.670 IN;Guide Plates Included:No;Head Casting Number:6170F;Valve Springs Included:Yes;Valve Seals Included:Yes;Valves Included:Yes;Camshaft Type:Solid Roller;CNC Ported:No;Construction Type:Complete;EGR Port:No;Exhaust Port Location:+.500;Guide Material:Manganese Bronze;Guide Plate Material:Hardened Steel;Horsepower:500-650 HJ;Product Family:Victor;Product Series:Victor;Quantity:Sold Individually;Retainer Included:Yes;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Seat Angle:Exhaust 45 deg/Intake 45 DD;Seat Material:Ductile Iron;Valve Angle:16 DD;Valve Stem Diameter:0.3438 IN |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Cylinder Head |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 61729.pdf |
