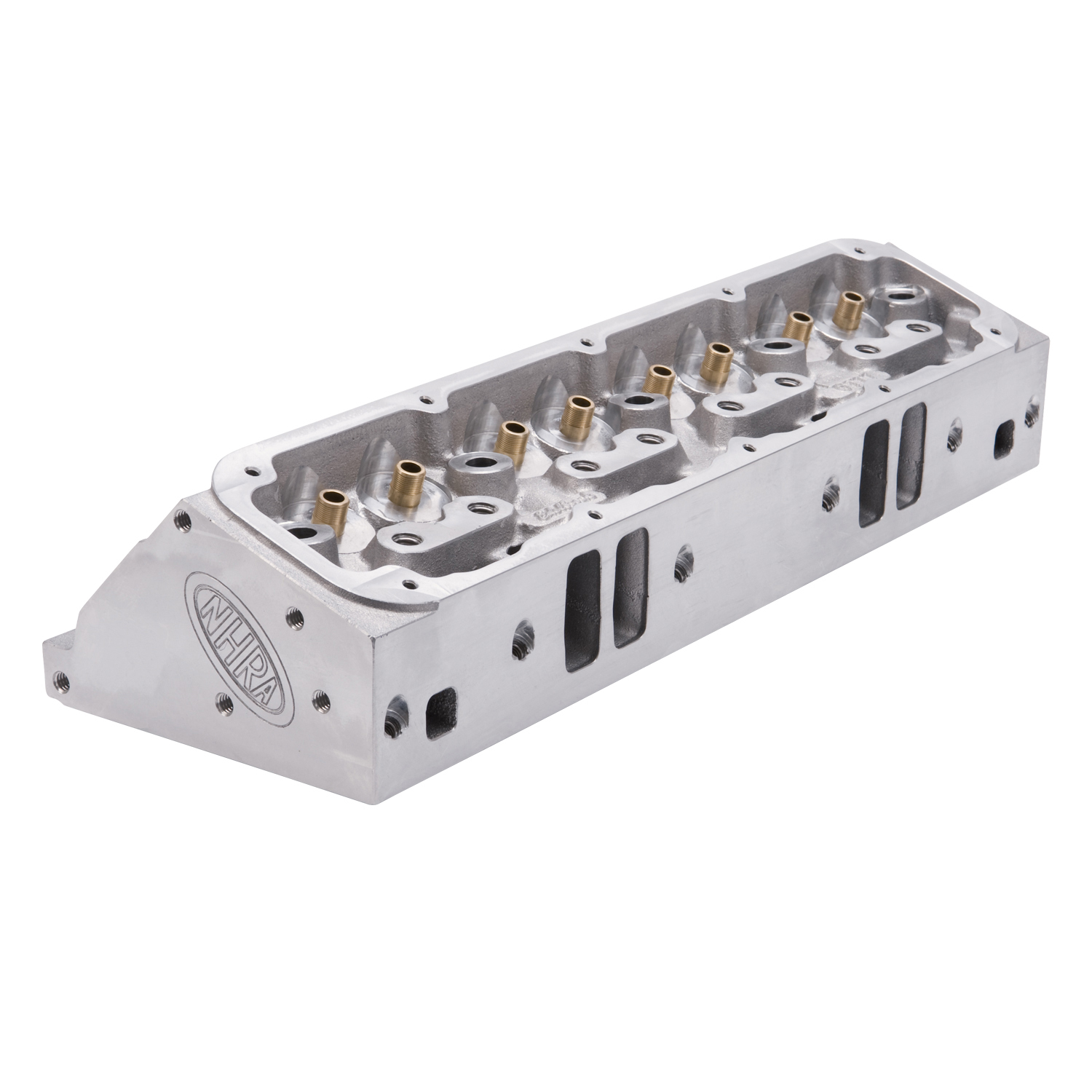

Edelbrock 61767 NHRA Small-Block Chrysler Magnum Cylinder Head Bare
$754
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
The Edelbrock #61767 Performer RPM Bare NHRA Stock/Super Stock cylinder heads are designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA Edelbrock heads are the best in quality and performance. All Edelbrock Cylinder Heads are designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!
Specifications
| WIDTH | 10.125 |
|---|---|
| HEIGHT | 7.1875 |
| LENGTH | 22.1875 |
| PROP65 | |
| WEIGHT | 27.3 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Push Rod Diameter:0.312 IN;Deck Height:9.600 IN;Deck Thickness:0.562 IN;Combustion Chamber Volume:63.0 CCM;Intake Runner Volume:176 CCM;Guide Plates Included:No;Head Casting Number:31-6177;CNC Ported:No;Product Family:Performer RPM;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Valve Angle:16 DD |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Cylinder Head |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 61767.pdf |
Datasheet — not yet published
