engine heads and blocks
Edelbrock 618368 Pro Port Big Victor Big-Block Chevy 14 Degree Cylinder Head CNC Ported
$2,001
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

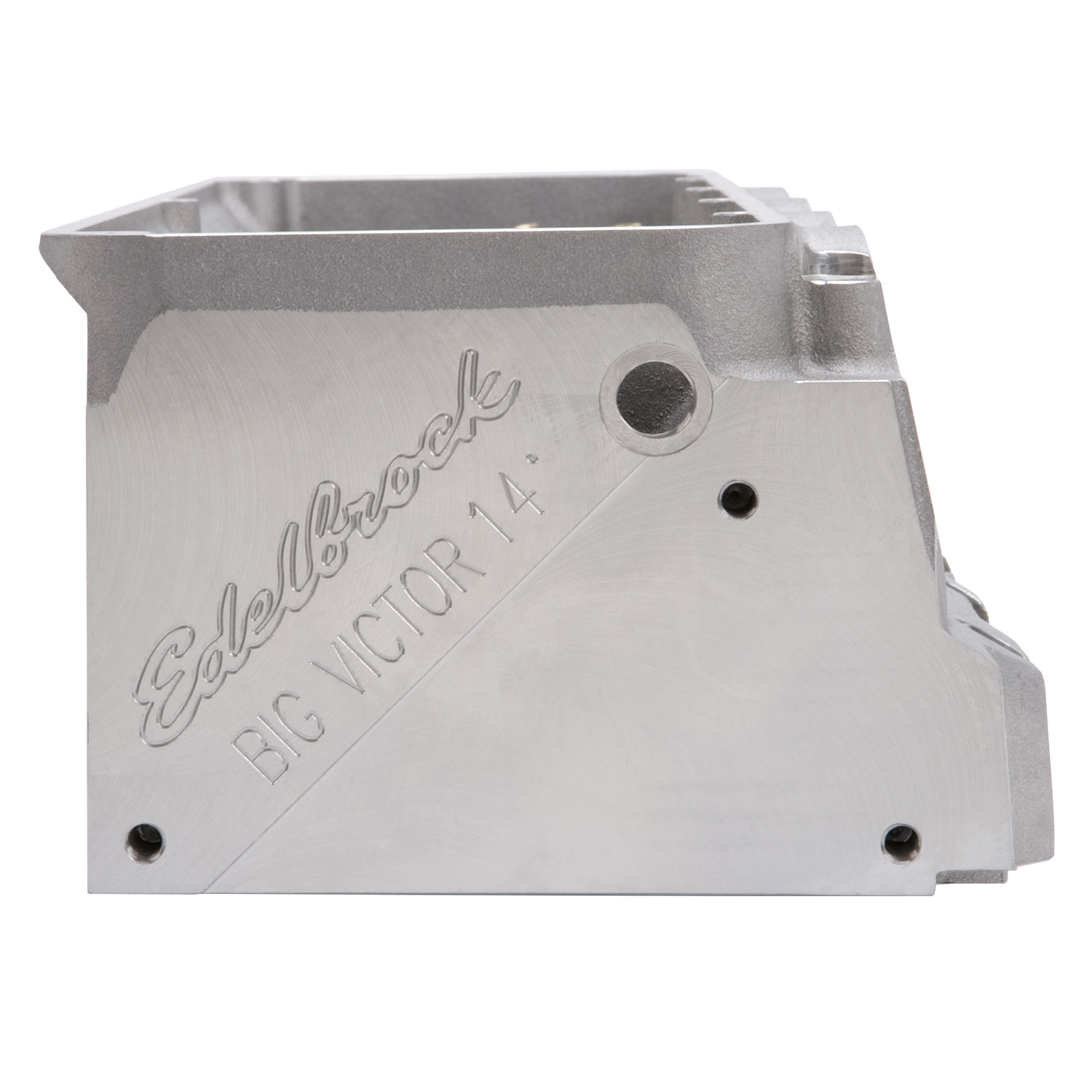

The Edelbrock 618368 Big Block Chevy 14deg Big Victor cylinder head is intended for high output large cubic inch racing engines with 4.84" bore spacing. This head is an improvement over existing 18deg designs such as the Big Chief & Big Duke. The casting is made from A-356 aluminum and is Hot Isostatic Pressing processed (HIP) for superior strength durability dimensional stability and exceptional finish quality. These cylinder head features CNC ported intake ports and a raised exhaust runner design for improved flow efficiency. Chambers are fully CNC ported and extra material is included in the deck to allow fine tuning of the combustion chamber design if desired. Edelbrock and Pat Musi worked with Jesel to improve the valvetrain geometry delivering Pro-Stock level technology on engines up to 10 000 rpm. Jesel's shaft-mounted system #KPS-387154 is made from lightweight 7000 series aluminum and features a one-piece stand design that pairs the intake and exhaust stands for improved valvetrain stability. The intake features a 1.820" long fulcrum and is available in 1.60:1 - 1.95:1 rocker ratios; the exhaust features a 2.000" long fulcrum and available in 1.60:1 - 2.00:1 rocker ratios. Requires Edelbrock valve covers #4259.
Specifications
| WIDTH | 11 |
|---|---|
| HEIGHT | 9.5 |
| LENGTH | 26 |
| PROP65 | |
| WEIGHT | 43.4 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Exhaust Runner Volume:195 CCM;Grade Type:Performance;Deck Thickness:0.750 IN;Combustion Chamber Volume:84 CCM;Intake Runner Volume:480 CCM;Intake Valve Diameter:2.50 IN;Exhaust Valve Diameter:1.82 IN;Guide Plates Included:No;Head Casting Number:N/A;Valve Springs Included:No;CNC Ported:Yes;Construction Type:Bare;Exhaust Port Location:+1.200;Flange Type:Spread Port;Guide Material:Manganese Bronze;Horsepower:1000-1300 HJ;Product Family:Pro-Series;Quantity:Sold Individually;Retainer Included:No;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Seat Material:Ductile Iron;Specialty:Hot Isostatic Pressing (HIP) Processing;Valve Angle:(Suggested) Intake 14 DD;Valve Included:No;Valve Spring Diameter:(Suggested) 1.635 IN |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Cylinder Head |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
