Edelbrock 7085 Victor Ram 2-R Big Block Chevy Intake Manifold Base for Carbureted Applications
$980
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

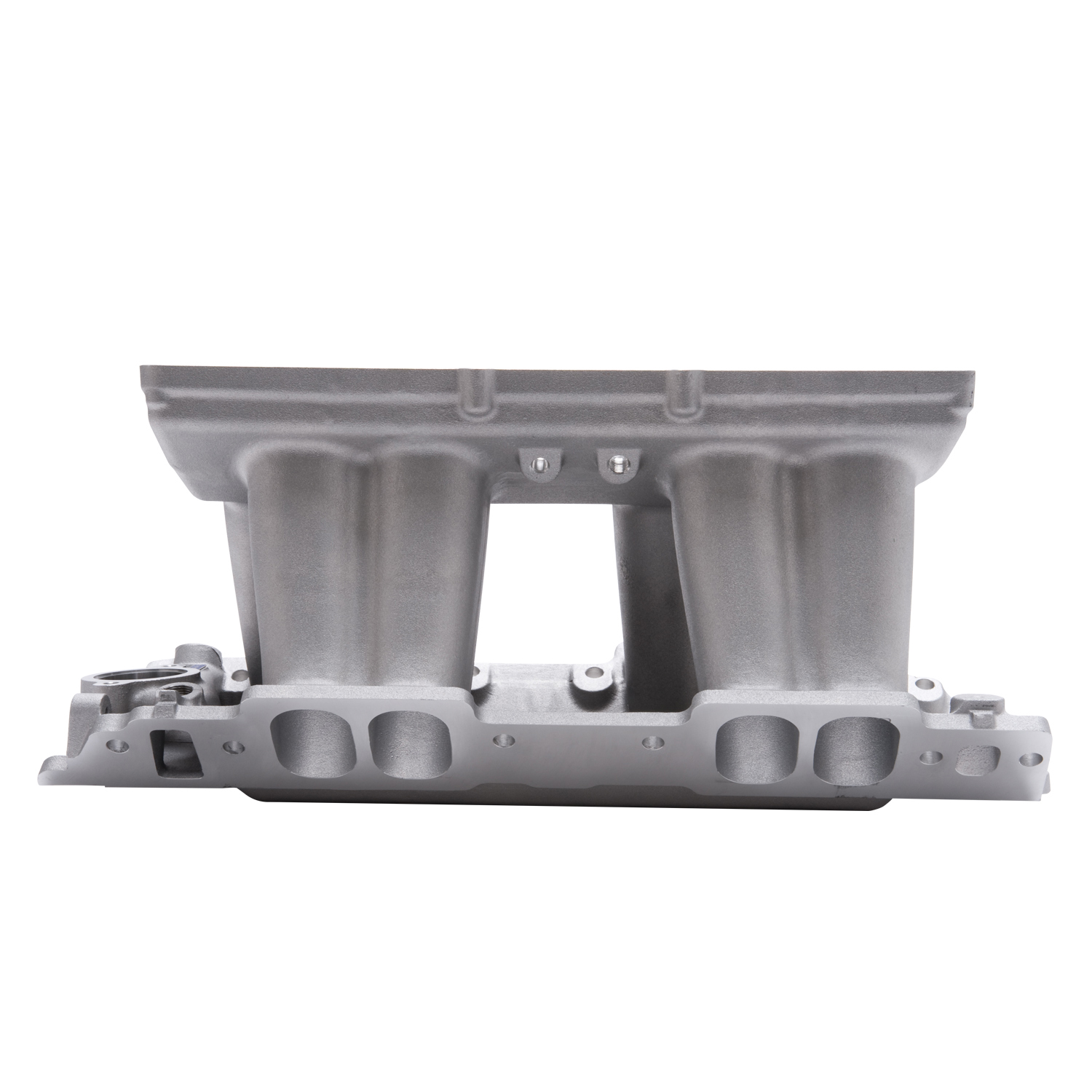

Edelbrock part #7085 Victor Carbureted Tunnel Ram base is designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads. This Tunnel Ram Base is a modern updated design to our very successful Victor Ram 2-R Tunnel Ram which was first released over 35 years ago. It's designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads. This new and improved design has 7" long runners with close to 5.5 square-inches at the plenum making it 25% larger than our current Victor Ram 2-R Tunnel Ram base! This is the ideal intake manifold for any modern high horsepower demanding application. Will fit Edelbrock Victor series race cylinder heads #77409 #77459 and #77609. Available for carbureted and fuel injected applications.
Specifications
| WIDTH | 12.25 |
|---|---|
| HEIGHT | 14 |
| LENGTH | 24.125 |
| PROP65 | |
| WEIGHT | 26.05 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Gasket Or Seal Included:No;Single Or Dual Plane Type:Dual Plane;Front Maximum Height:10.750 IN;Center Maximum Height:10.750 IN;Rear Maximum Height:10.750 IN;EGR Port:No;CNC Ported:No;Basic Operating RPM Range:4500-8500 R3;Color:Satin;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Series:Dual-Quad/Multi Carb;Vehicle Model:Chevrolet |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Intake Manifold |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
