Edelbrock 7104 Performer RPM Small Block Chevy Q-JET Intake Manifold
$360
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part

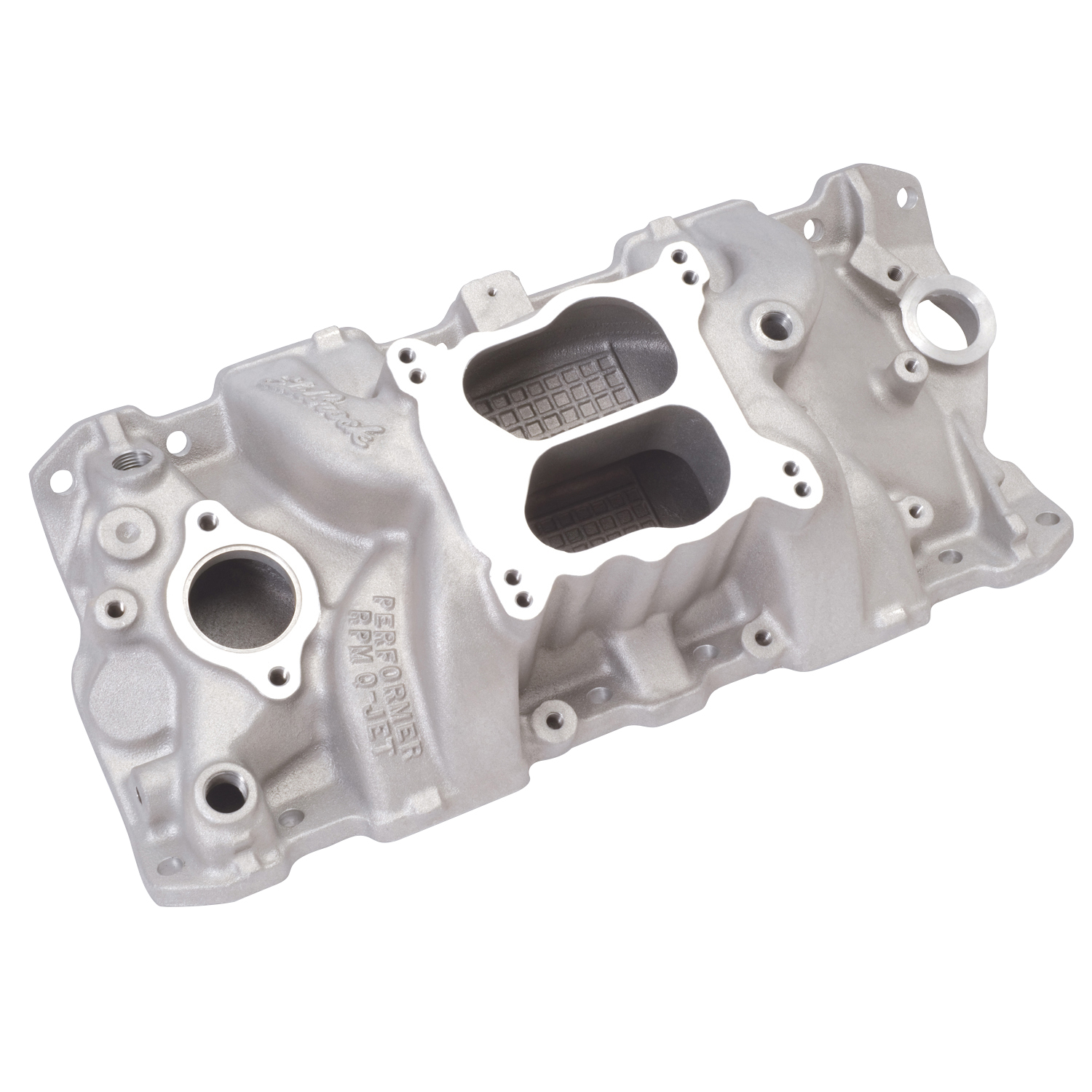

Edelbrock part #7104 Performer RPM Q-Jet intake manifold is designed for 1955-86 262-400 c.i.d. Chevy V8's for spread-bore (Q-Jet) or square-bore carbs. Delivers maximum power and a broad torque curve for high-performance street. Carb pad will accept square-bore carbs without adapters. Performer RPM Q-Jet has same provisions as #7101. Will not fit under stock Corvette hood.
Specifications
| WIDTH | 10 |
|---|---|
| HEIGHT | 5.25 |
| LENGTH | 20.75 |
| PROP65 | |
| WEIGHT | 17.15 |
| WARRANTY | 12 Months |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Gasket Or Seal Included:No;Single Or Dual Plane Type:Dual Plane;Front Maximum Height:4.200 IN;Center Maximum Height:4.720 IN;Rear Maximum Height:5.250 IN;EGR Port:No;CNC Ported:No;Basic Operating RPM Range:1500-6500 R3;Finish:Satin;Flange Type:4150;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Series:Performer RPM;Vehicle Model:Chevrolet |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Intake Manifold |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 7104.pdf |
