Edelbrock 75854 RPM Air-Gap Dual-Quad Small Block Ford Intake Manifold
$585
Made to order
Add your car with the “Your car” button in the header to check fitment.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part

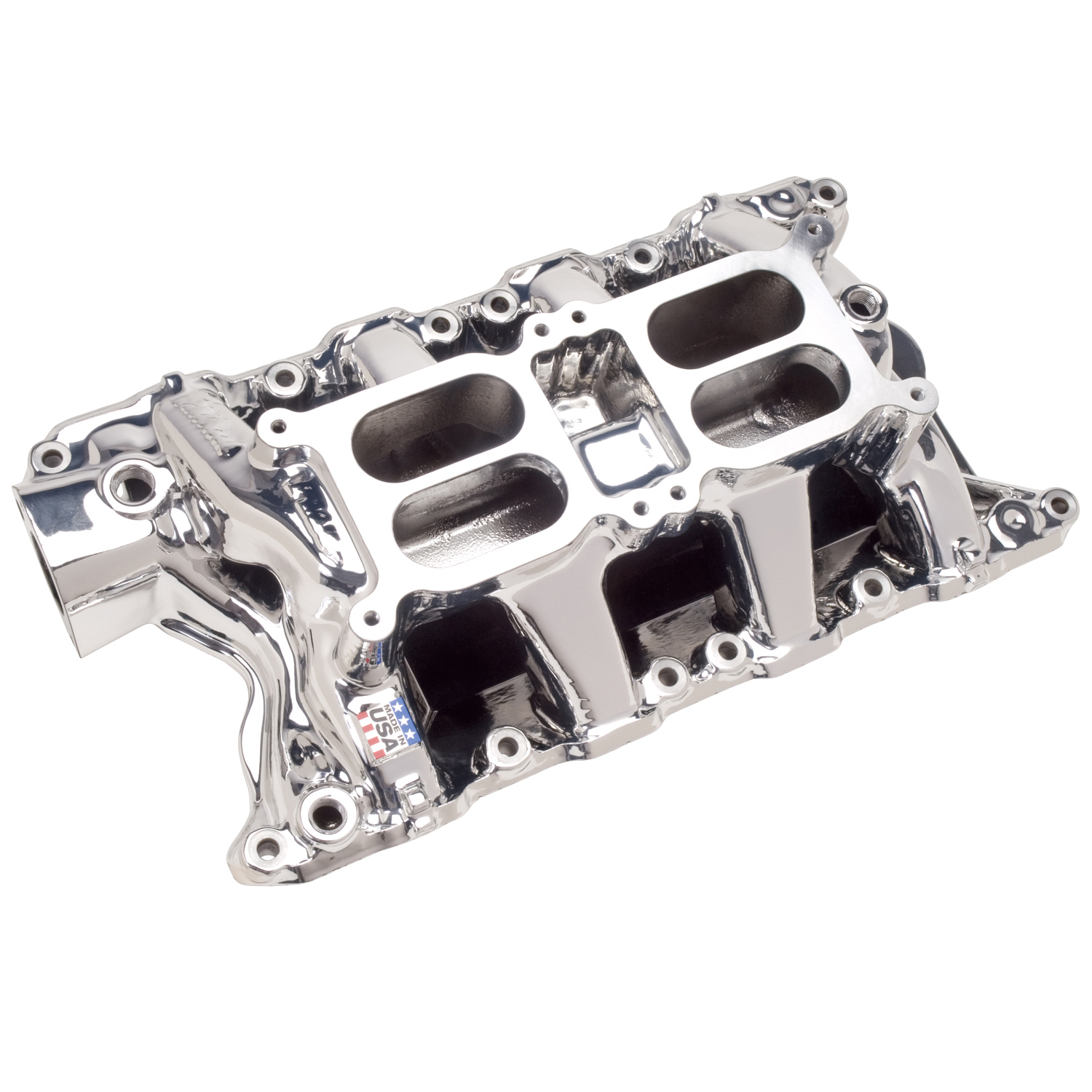

Edelbrock part #75854 RPM Air-Gap Dual-Quad 351W intake manifold is designed for 351W small-block Ford V8 applications. This intake offers performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler denser charge and more horsepower. Includes bosses for rear water crossover. Carb center to carb center is 6-7/16". This manifold offers our long lasting bright chrome like EnduraShine finish that matches chrome and polished accessories.
Specifications
| WIDTH | 14.75 |
|---|---|
| HEIGHT | 7.5 |
| LENGTH | 23.625 |
| PROP65 | |
| WEIGHT | 20 |
| WARRANTY | 12 Months |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Gasket Or Seal Included:No;Single Or Dual Plane Type:Dual Plane;Front Maximum Height:4.930 IN;Center Maximum Height:5.370 IN;Rear Maximum Height:5.560 IN;EGR Port:No;CNC Ported:No;Basic Operating RPM Range:1500-6500 R3;Finish:EnduraShine;Flange Type:4150 Dual-Quad (4-Barrel Square Bore);RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Series:Dual-Quad/Multi Carb;Vehicle Model:Ford |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Intake Manifold |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | 75854.pdf |
Datasheet — not yet published
