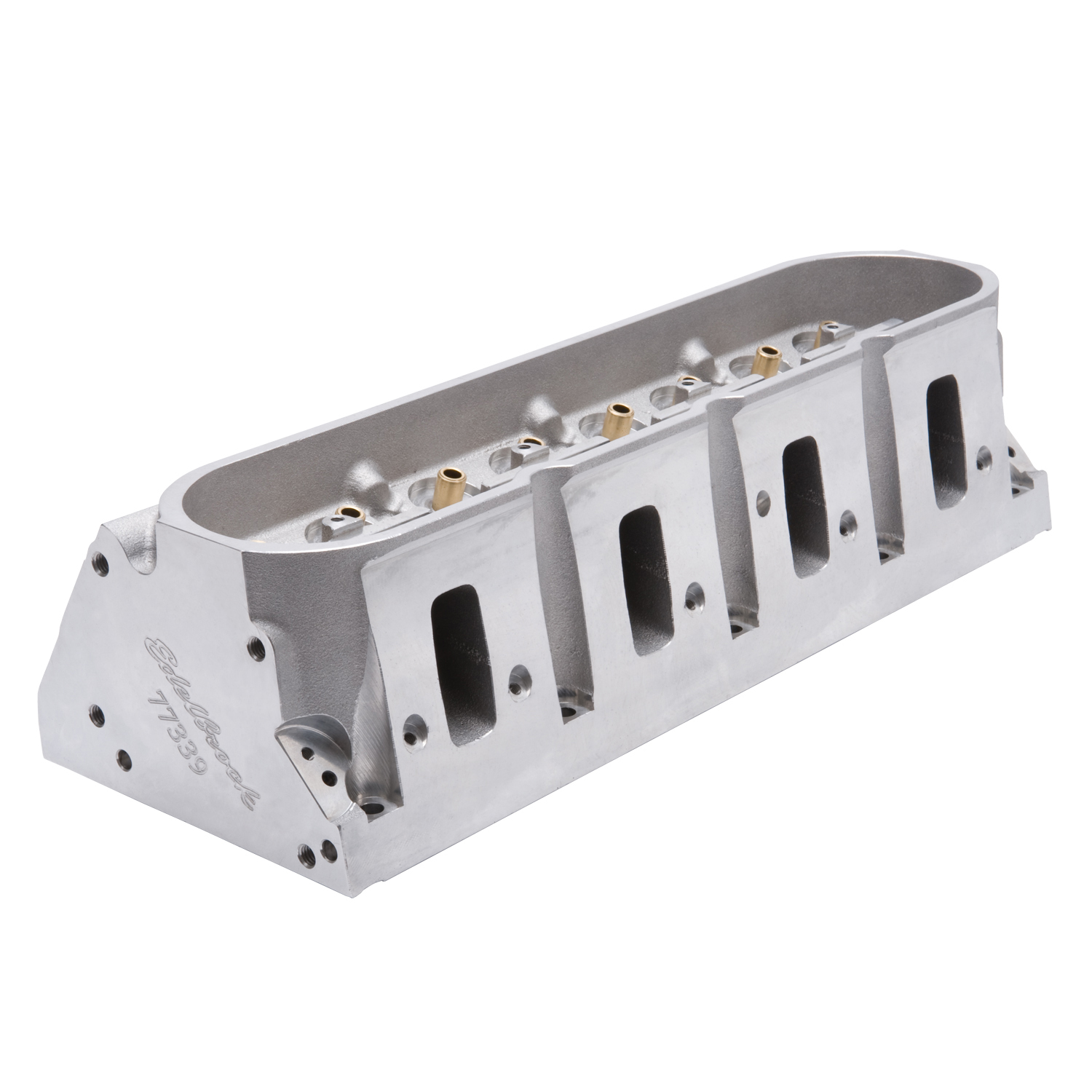

Edelbrock 77339 Pro Port GEN III/IV LS3 Chevy Cylinder Head Bare

$769
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
The Edelbrock 77319 Small Block Chevy LS3 Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like all other Edelbrock Cylinder heads Pro-Port cylinder heads are also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases seats and manganese-bronze valve guides are included but not installed. Please note: These heads can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC heads for the professional cylinder head porter and engine builder - Pro-Port cylinder heads are cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only heads designed specifically to accommodate almost any CNC port shape size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some Edelbrock Pro-Port Raw Heads Feature Our Special Hot Isostatic Pressing or HIP Process.
Specifications
| WIDTH | 10.875 |
|---|---|
| HEIGHT | 8.375 |
| LENGTH | 26 |
| PROP65 | |
| WEIGHT | 30.9 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Deck Height:9.240 IN;Guide Plates Included:No;Head Casting Number:31-77349;CNC Ported:No;Product Family:Pro-Series;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Valve Angle:15 DD |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Cylinder Head |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
