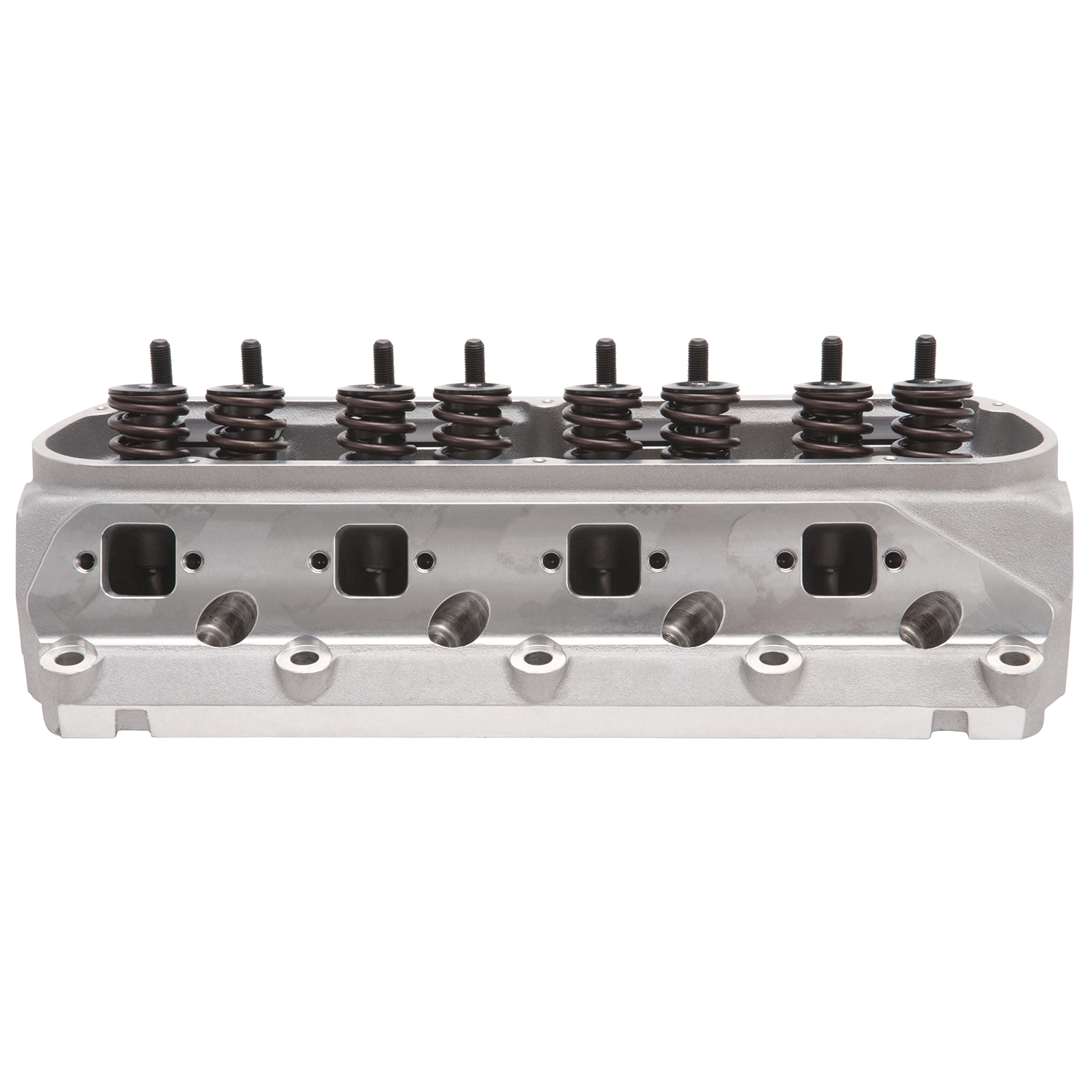

Edelbrock 77359 Victor Jr Small-Block Ford Cylinder Head 70cc Mechanical Roller Cam
$1,030
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
The Edelbrock 77359 Victor Jr. Small Block Ford cylinder heads offer high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 20 Deg - 210cc FEATURES: 500+ horsepower potential out-of-the-box using stock valve train geometry High-flowing 210cc intake ports and .130" raised 75cc exhaust ports Available with 60cc or 70cc combustion chambers 70cc combustion chambers are ideal for turbocharged and supercharged applications CNC gasket-matched port entries/exits with blended valve bowls Spark plug holes and valves are in the stock location Valve cover rail raised .150" A relief in the head allows most roller lifters to be changed without removing heads
Specifications
| WIDTH | 10.85 |
|---|---|
| HEIGHT | 8.55 |
| LENGTH | 26 |
| PROP65 | |
| WEIGHT | 25.75 |
| WARRANTY | 12 Months |
| EMISSIONS | EPA Eligible |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Push Rod Diameter:0.312 IN;Deck Height:9.5 IN;Deck Thickness:0.625 IN;Combustion Chamber Volume:70.0 CCM;Intake Runner Volume:210.0 CCM;Intake Valve Diameter:2.050 IN;Exhaust Valve Diameter:1.600 IN;Valve Spring Diameter:1.550 IN;Valve Spring Maximum Lift:0.670 IN;Guide Plates Included:Yes;Head Casting Number:7716F;CNC Ported:No;Guide Plate Material:Hardened Steel;Product Family:Victor;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Rocker Arm Stud Diameter:0.437 IN;Valve Angle:20 DD;Valve Stem Diameter:0.341 IN |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Cylinder Head |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS |
