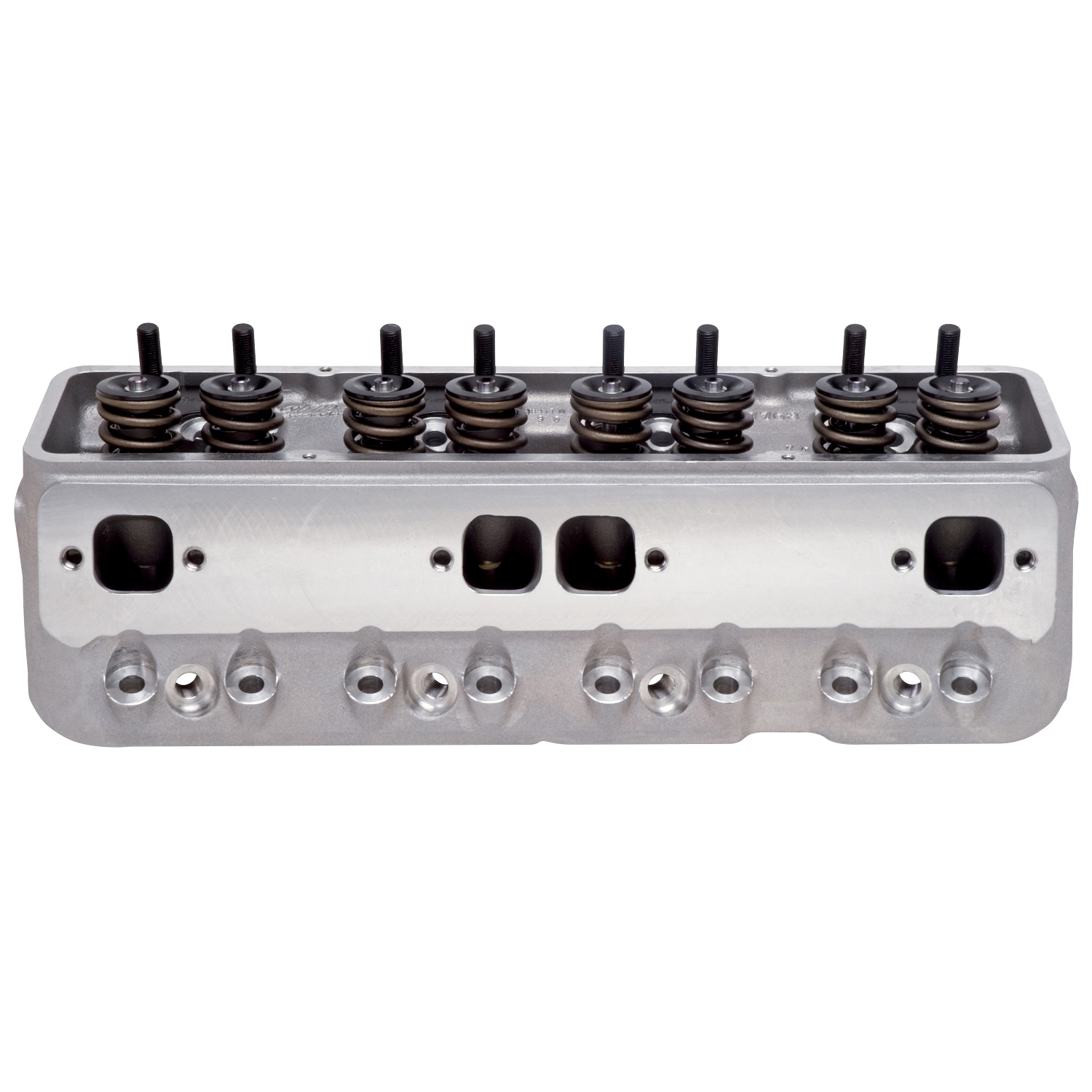

Edelbrock 77619 Victor Jr Small-Block Chevy Cylinder Head, 70cc, Hydraulic Roller Springs
$861
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part
The Edelbrock part #77619 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box for a cost effective race-winning set-up. These cylinder heads feature angled spark plug holes and accept standard 23 Deg valvetrain hardware. The 77619 cylinder heads have a 70cc combustion chamber and come with springs for hydraulic roller camshafts.
Specifications
| WIDTH | 10.125 |
|---|---|
| HEIGHT | 7.1875 |
| LENGTH | 22.1875 |
| PROP65 | |
| WEIGHT | 33.55 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | Material:Aluminum;Grade Type:Performance;Push Rod Diameter:0.312 IN;Deck Height:9.025 IN;Deck Thickness:0.562 IN;Combustion Chamber Volume:70.0 CCM;Intake Runner Volume:215.0 CCM;Intake Valve Diameter:2.080 IN;Exhaust Valve Diameter:1.600 IN;Valve Spring Diameter:1.550 IN;Valve Spring Maximum Lift:0.650 IN;Guide Plates Included:Yes;Head Casting Number:31-7763;CNC Ported:No;Guide Plate Material:Hardened Steel;Product Family:E-Series;RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.;Rocker Arm Stud Diameter:0.437 IN;Valve Angle:23 DD;Valve Stem Diameter:0.341 IN |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Cylinder Head |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 77619.pdf |
Datasheet — not yet published
