Edelbrock 77739 Valley Plate Unported Thick Flange Big Victor 3 Big Block Chevy
$464
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

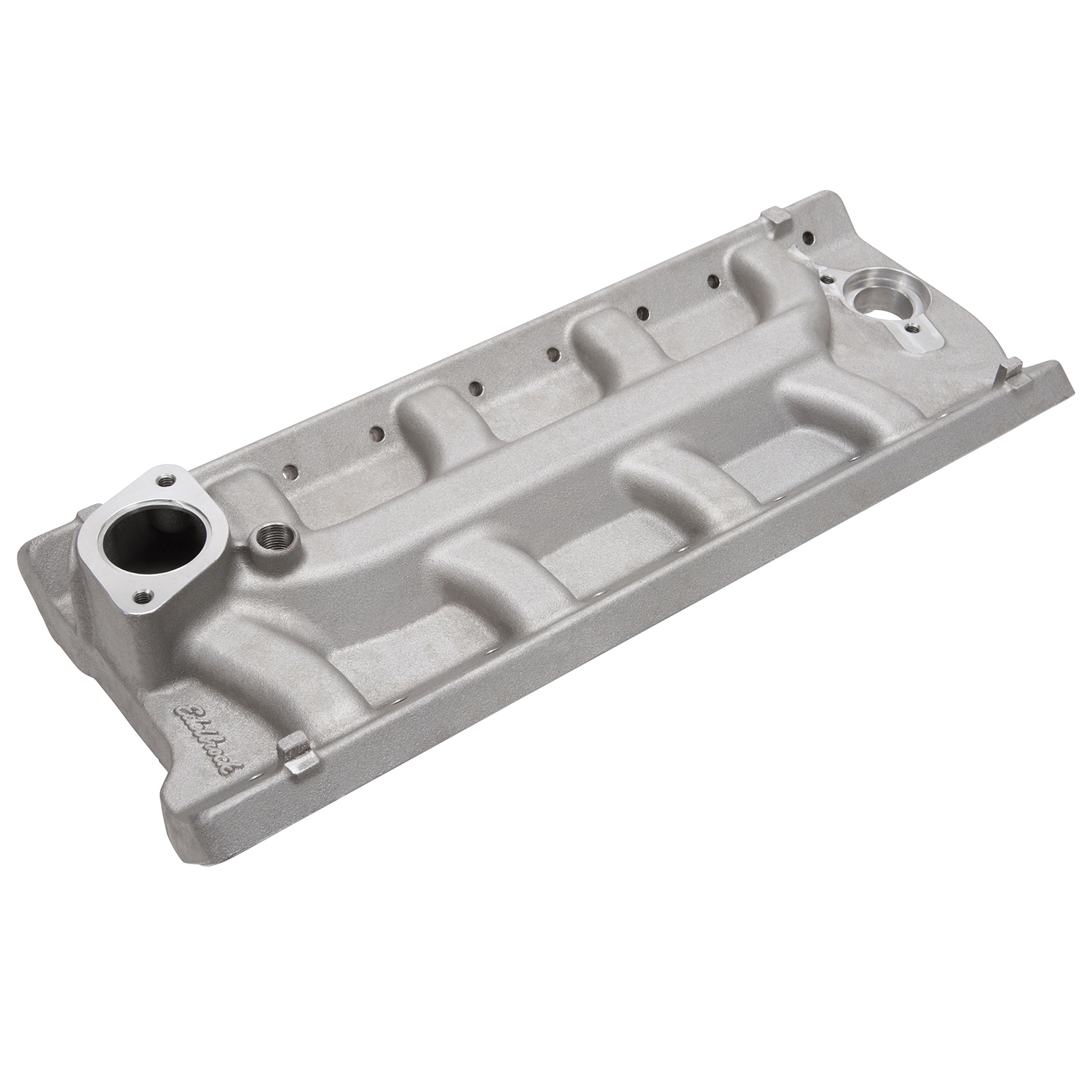

Edelbrock part #77739 Valley Cover is designed for use with Edelbrock BV3 cylinder heads and intake manifolds with 4.84" bore spacing. In addition to covering the lifter valley it also completes the cross flow coolant recovery system unique to the BV3 cylinder heads. This valley cover draws water from individual cylinders and combines them together at the thermostat housing for more uniform cooling of the cylinders. This design also delivers more consistent cylinder to cylinder cooling. A thermostat housing may be used for radiator return or if a fill neck is used a boss on the front can be drilled for a pipe thread fitting.
Specifications
| WIDTH | 12 |
|---|---|
| HEIGHT | 9 |
| LENGTH | 24 |
| PROP65 | |
| WEIGHT | 20 |
| WARRANTY | 12 Months |
| EMISSIONS | Racing or Pre-Emissions Use Only |
| ATTRIBUTES | RGL:WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov. |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Intake Manifold |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | 77739.pdf |
