Haltech Elite 550 ECU - HT-150400
$920
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part

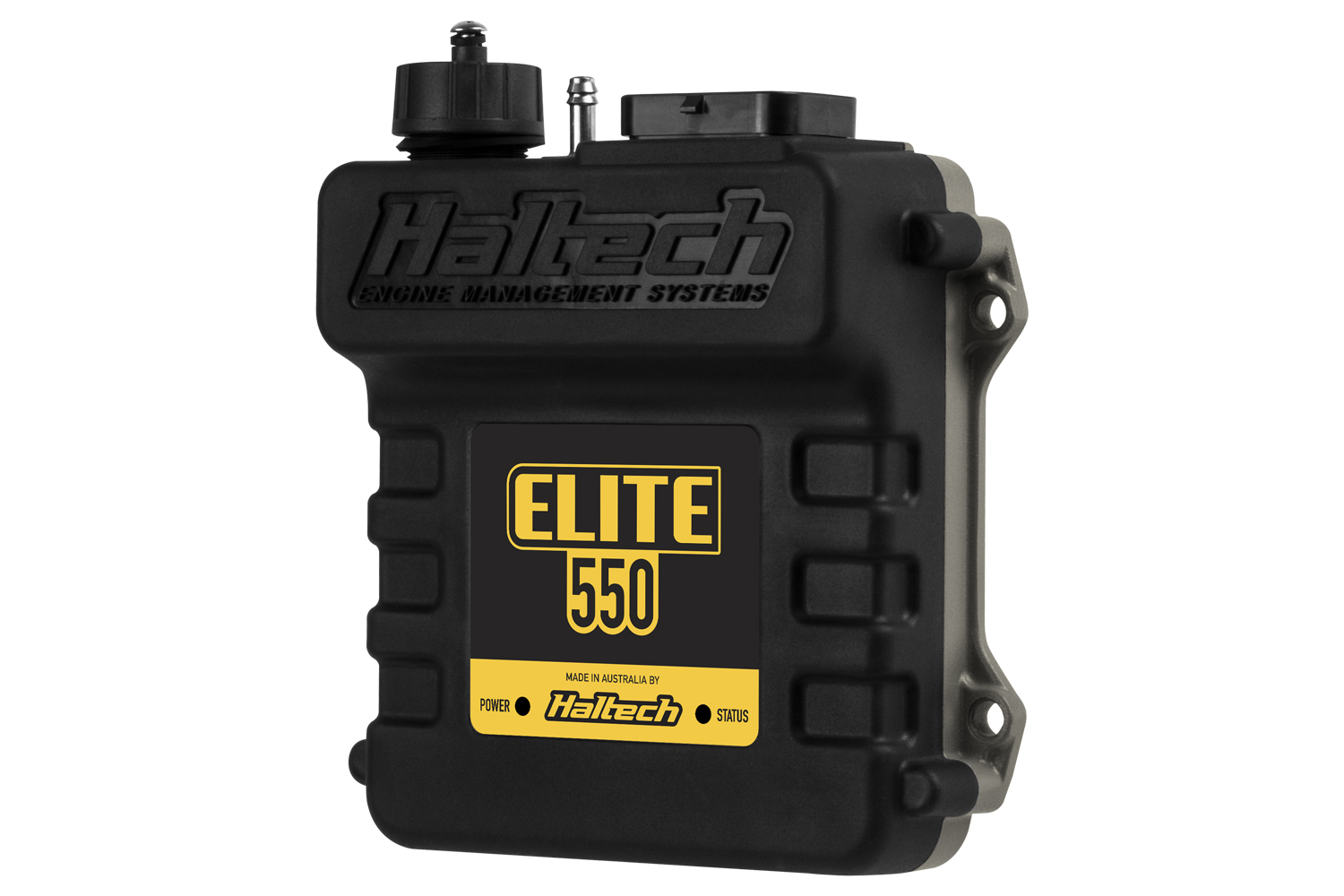

Elite 550 ECU
Specifications
| WIDTH | 8.75 |
|---|---|
| HEIGHT | 2.25 |
| LENGTH | 9.25 |
| PROP65 | Yes |
| WEIGHT | 1.821 |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | AU |
| PART TERMINOLOGY | Engine Control Module (ECM) |
| 25 A HIGH CURRENT OUTPUTS (HCO) | 0 |
| ANALOG VOLTAGE INPUTS (AVI) | 1 |
| ANTI LAG/ROTATIONAL IDLE | NO |
| BOOST CONTROL | 3D Closed Loop |
| CAN BUS NETWORKS | 1 |
| CLOSED LOOP O2 CONTROL | Dual |
| CO2 CONTROL | NO |
| COMPATIBLE WITH HALTECH CONNECT APP | NO |
| DIFFERENTIAL ENGINE POSITION INPUTS | 2 (Trigger and Home) |
| DIGITAL PULSED INPUTS (DPI) | 1 |
| DISPLAY NAME | Elite 550 ECU |
| DRIVE BY WIRE THROTTLE | NO |
| ENGINE CONTROL RELAY OUTPUT | 0 |
| ENGINE PROTECTION | Single Level |
| FLAT SHIFT SUPPORT | Basic |
| FLEX FUEL | YES |
| HALF BRIDGE OUTPUTS (HBO) | 0 |
| IGNITION | 4 |
| IGNITION SWITCH INPUT | 1 |
| INERTIA / G SENSOR | NO |
| INJECTION | 4 (peak and hold) |
| INTAKE AIR BLEED CONTROL | NO |
| KNOCK CONTROL | NO |
| KNOCK SENSOR INPUTS | 0 |
| LAUNCH CONTROL | YES |
| LONG TERM LEARNING | Up to 3D |
| LOW POWER UP VIA CABLE | NO |
| MAP SENSOR | Internal (4 BAR) |
| NITROUS CONTROL STAGES | 1 |
| ON BOARD PDM | NO |
| ON BOARD WIDEBAND CONTROLLER | NO |
| ONBOARD STORAGE | 2MB |
| PRODUCT TYPE | ECU |
| PROP 65 (C R OR CR) | CR |
| PROP 65 SHORT LABEL | Prop 65 Warning Label.JPG |
| PROP 65 YES/NO | Yes |
| RACE TIMER | NO |
| ROLLING ANTI LAG | NO |
| RIDE HEIGHT | NO |
| SYNCHRONIZED PULSED INPUTS (SPI) | 0 |
| TORQUE MANAGEMENT (DRIVESHAFT AND ENGINE RPM TARGETING) | NO |
| TOTAL DIGITAL PULSED OUTPUTS (DPO) | 5 |
| TRACTION CONTROL | NO |
| TRANS BRAKE | NO |
| TUNING TABLE RESOLUTION | 32×16 3D |
| USB 2.0 | USB-B |
| VARIABLE CAM CONTROL | Single |
| WI FI | NO |
