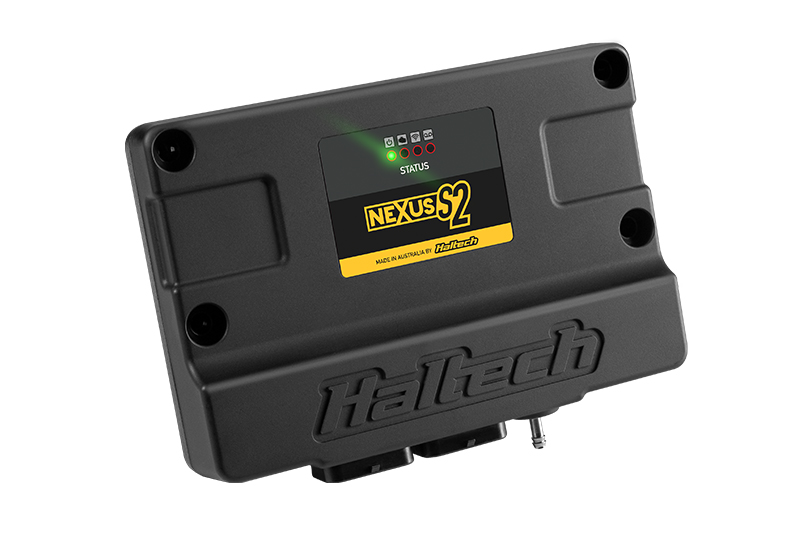

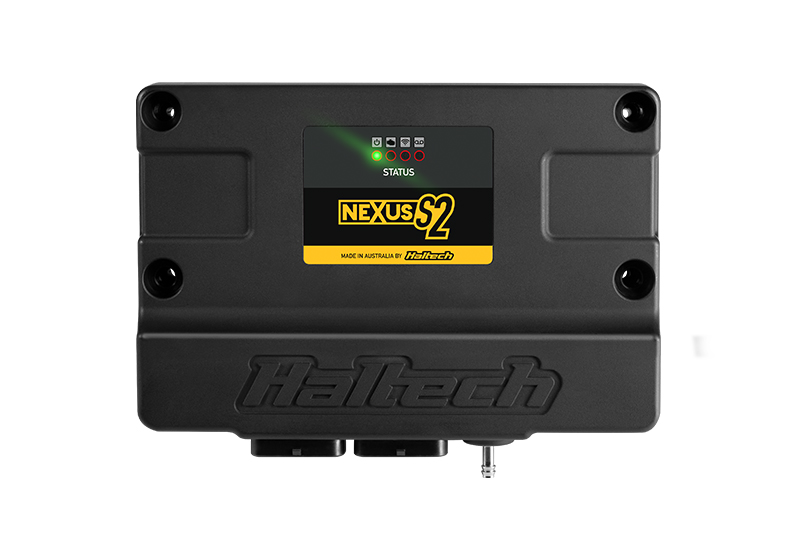

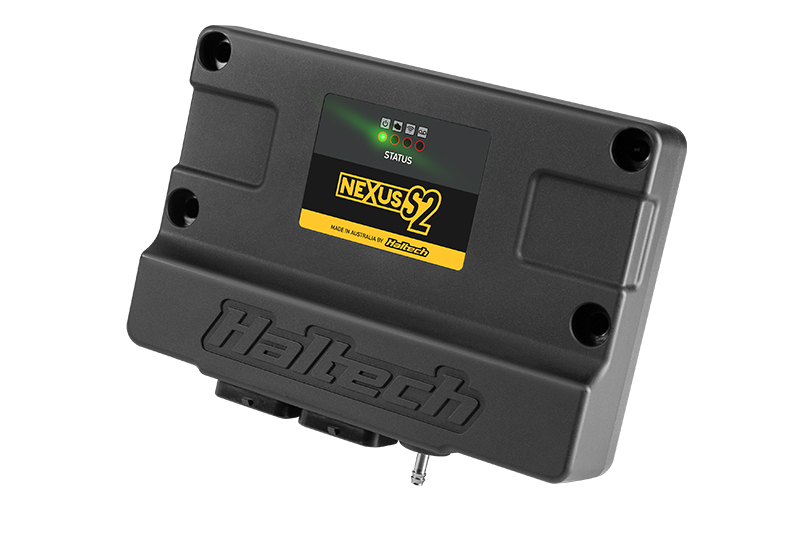

Haltech HT-212000 Nexus S2 ECU Only
$1,695
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part
Nexus S2 ECU Only
Specifications
| WIDTH | 8.75 |
|---|---|
| HEIGHT | 2.25 |
| LENGTH | 9.25 |
| PROP65 | Yes |
| WEIGHT | 2.899 |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | AU |
| PART TERMINOLOGY | Engine Control Module (ECM) |
| 25 A HIGH CURRENT OUTPUTS (HCO) | 0 |
| ANALOG VOLTAGE INPUTS (AVI) | 11 |
| ANTI LAG/ROTATIONAL IDLE | YES |
| BOOST CONTROL | 4D Closed Loop |
| CAN BUS NETWORKS | 2 |
| CLOSED LOOP O2 CONTROL | Dual |
| CO2 CONTROL | YES |
| COMPATIBLE WITH HALTECH CONNECT APP | YES |
| DIFFERENTIAL ENGINE POSITION INPUTS | 2 (Trigger and Home) |
| DIGITAL PULSED INPUTS (DPI) | 0 |
| DISPLAY NAME | Nexus S2 ECU Only |
| DRIVE BY WIRE THROTTLE | Dual |
| ENGINE CONTROL RELAY OUTPUT | 1 |
| ENGINE PROTECTION | Multi-Level |
| FLAT SHIFT SUPPORT | Advanced |
| FLEX FUEL | YES |
| HALF BRIDGE OUTPUTS (HBO) | 4 8A |
| IGNITION | 8 |
| IGNITION SWITCH INPUT | 1 |
| INERTIA / G SENSOR | NO |
| INJECTION | 8 (peak and hold) |
| INTAKE AIR BLEED CONTROL | YES |
| KNOCK CONTROL | Dual |
| KNOCK SENSOR INPUTS | 2 |
| LAUNCH CONTROL | YES |
| LONG TERM LEARNING | Up to 4D |
| LOW POWER UP VIA CABLE | YES |
| MAP SENSOR | Internal (4 BAR) |
| NITROUS CONTROL STAGES | Up to 6 |
| ON BOARD PDM | NO |
| ON BOARD WIDEBAND CONTROLLER | 1 x NTK/LSU 4.9 |
| ONBOARD STORAGE | 128MB |
| PRODUCT TYPE | ECU |
| PROP 65 (C R OR CR) | CR |
| PROP 65 SHORT LABEL | Prop 65 Warning Label.JPG |
| PROP 65 YES/NO | Yes |
| RACE TIMER | YES |
| ROLLING ANTI LAG | YES |
| RIDE HEIGHT | YES |
| SYNCHRONIZED PULSED INPUTS (SPI) | 6 |
| TORQUE MANAGEMENT (DRIVESHAFT AND ENGINE RPM TARGETING) | YES |
| TOTAL DIGITAL PULSED OUTPUTS (DPO) | 6 |
| TRACTION CONTROL | YES |
| TRANS BRAKE | YES |
| TUNING TABLE RESOLUTION | 32x32x8 4D |
| USB 2.0 | USB-C |
| VARIABLE CAM CONTROL | Up to 4 |
| WI FI | YES |
Datasheet — not yet published
