engine rotating assembly

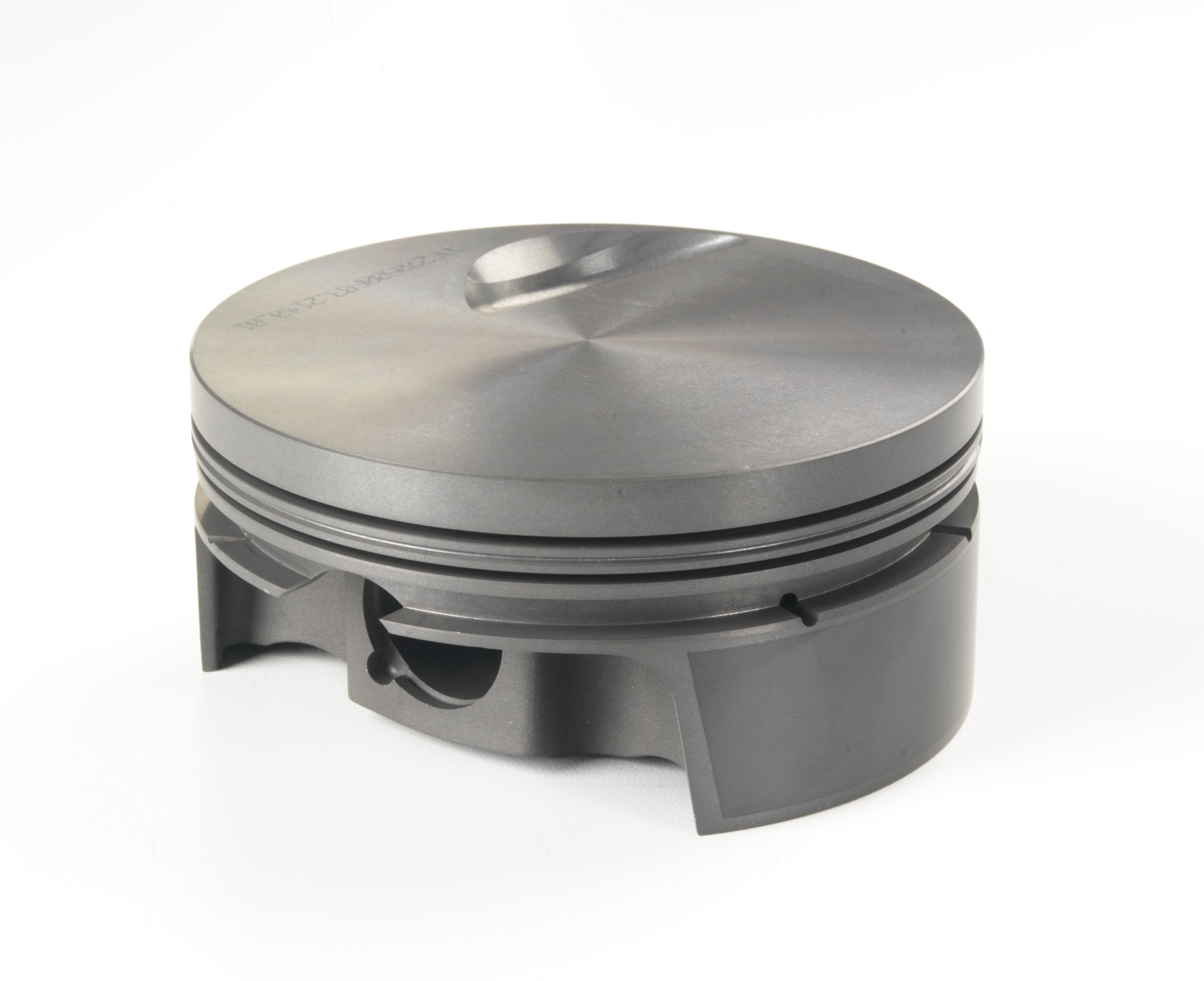

Mahle Motorsport 928957001T Piston (set) - BIG BLOCK CHEVY FLAT TOP (STD DECK 9.800)
$1,160
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part
565cid 4.600 x 1.270RCH 4.250stroke 6.385rod 0.990pin -3.4cc 562g 9.8CR 4032 TBC coated
Specifications
| WIDTH | 11.5 |
|---|---|
| HEIGHT | 6.5 |
| LENGTH | 13.75 |
| PROP65 | Yes |
| WEIGHT | 18 |
| WARRANTY | |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Clip Style:Round Wire;Clips Included:Y;Crown Volume:-3.4cc;File Fit:Y;LCR Coating:Phosphate;LCR Material:Cast iron;LCR Thickness:1.5mm;OCR Material:Chrome plated stainless steel;OCR Tension:Standard;OCR Thickness:3.0mm;Package Quantity:Sold as a set of 8;Pin Diameter:25.146mm;Pin Length:64.0mm;Pin Mass:148g;Pin Material:Steel;Pin Style:Floating;Pin Wall Thickness:0.18;Pins Included:Y;Piston Mass:562g;Piston Material:Forged 4032;Piston Ring Thickness:1.5mm 1.5mm 3.0mm;Piston Style:Flattop w/ INT valve relief;Prop 65 (C R or CR):CR;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Yes/No:Yes;Rings Included:Y;Title:Mahle Motorsport Piston (set) - 928957001T;UCR Coating:Plasma Moly;UCR Material:Ductile Iron;UCR Thickness:1.5mm |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Piston Set |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
