engine rotating assembly

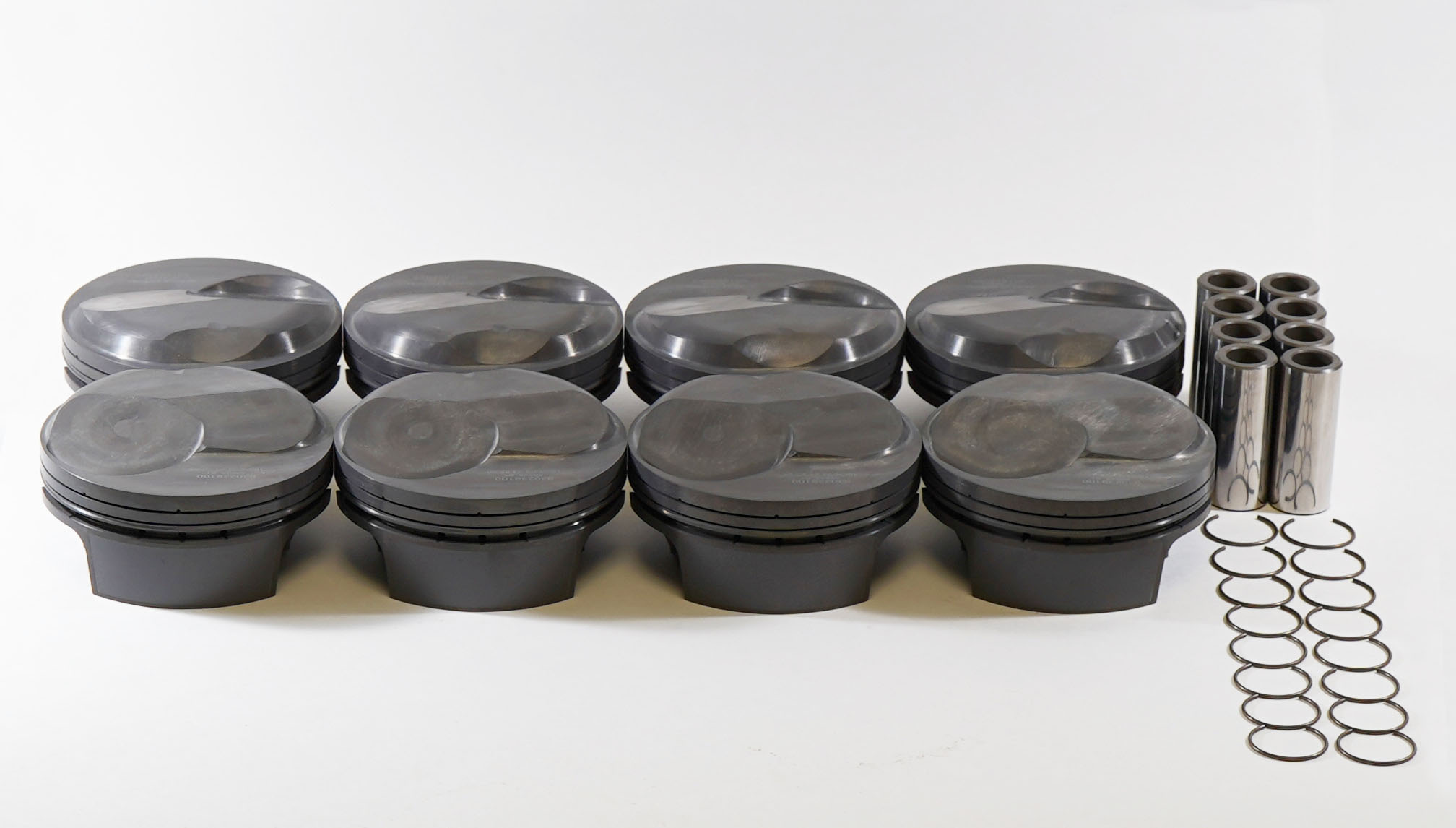

Mahle Motorsport 930239125T Piston (set) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 24 Deg/25 Deg
$1,385
Made to order
Universal fit — no vehicle-specific fitment required.
Qty
1
Free freight ≥ $999 · $40 flat below
About this part
571cid 4.625 x 1.120RCH 4.250stroke 6.535rod 0.990pin 42.0cc 629g 14.4CR 2618 TBC coated
Specifications
| WIDTH | 11.5 |
|---|---|
| HEIGHT | 6.5 |
| LENGTH | 13.75 |
| PROP65 | Yes |
| WEIGHT | 18 |
| WARRANTY | |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Clip Style:Round Wire;Clips Included:Y;Crown Volume:42.0cc;LCR Thickness:0.043;OCR Thickness:3.0mm;Package Quantity:Sold as a set of 8;Pin Diameter:25.146mm;Pin Length:74.42mm;Pin Mass:171g;Pin Material:Steel;Pin Style:Floating;Pin Wall Thickness:0.18;Pins Included:Y;Piston Mass:629g;Piston Material:Forged 2618;Piston Ring Thickness:.043 .043 3.0mm;Piston Style:Dome w/ INT valve relief;Prop 65 (C R or CR):CR;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Yes/No:Yes;Rings Included:N;Title:Mahle Motorsport Piston (set) - 930239125T;UCR Thickness:0.043 |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | US |
| PART TERMINOLOGY | Engine Piston Set |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS |
Datasheet — not yet published
