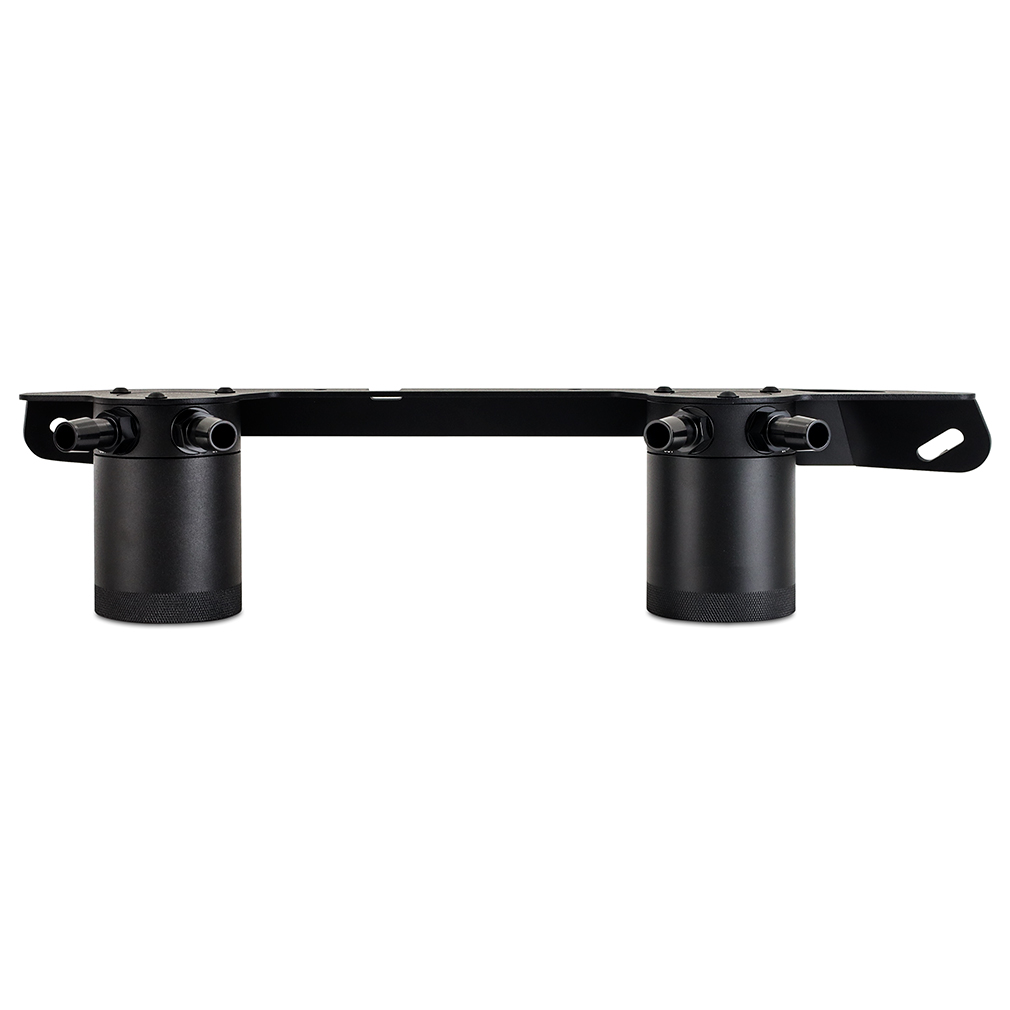

Baffled Oil Catch Can System, fits Ford Bronco 2.7L 2021-2022
$440
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part
The legendary Ford Bronco has returned and under the retro-styled hood lies a new legend: the 2.7L EcoBoost. The 2.7L EcoBoost has been powering Fords for nearly a decade and has become one of the most respected truck engines available. The second generation 2.7L features both port and direct injection for efficiency throughout the RPM range. While the added port injection helps clean the intake valves it doesn't protect the rest of your engine from the effects of blow-by. As blow-by flows through your intake it coats components like sensors and your intercooler in a sludge of oil carbon and fuel reducing their ability to function. Blow-by can also reduce the effectiveness of your engine oil. The factory air-oil-separator drains blow-by back into the oil pan which is great for the environment but the fuel and water in blow-by can thin your engine oil and reduce its viscosity. Finally any blow-by that does make its way back into the cylinder can reduce the octane of your fuel and for a high-strung turbocharged engine like the 2.7L EcoBoost lower octane means less power. The solution to all those issues is to capture the blow-by and keep it out of the engine with a Mishimoto catch can system. Our direct-fit baffled oil catch can system for the 2021+ Ford Bronco 2.7L EcoBoost intercepts blow-by before it enters the intake and captures it to be recycled at your next oil change. This dual catch can system provides efficient oil/water separation for both the PCV and CCV systems on your Bronco. Our catch cans feature an internal baffle and air turbulators that help condense oil fuel and water vapor from the blow-by as well as a 50-micron sintered silver filter that captures carbon particles. Our catch can system features a sturdy 2.5mm-thick steel bracket and molded hoses which include Ford-specific quick-disconnect fittings for an easy and clean install. This catch can system is backed by our Mishimoto Lifetime Warranty for a lifetime of clean running.
Specifications
| WIDTH | 6.7 |
|---|---|
| HEIGHT | 6.7 |
| LENGTH | 6.7 |
| PROP65 | Y |
| WEIGHT | 4.12 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Can Material:6061-T6 Billet Aluminum;Can Type:Twist Off;Can Outside Diameter:2.5 IN;Inlet Port Quantity per Can:1;Outlet Port Quantity per Can:1;Can Finish:Anodized;Hose Included:Yes;Color:Black;Outlet Port Inside Diameter:0.6 IN;Inlet Port Inside Diameter:0.6 IN;Drain Plug Included:Yes;Finish:Anodized;Height:3.7 IN;Maximum Can Capacity:3 FO;Interior Baffle:Yes;Mounting Bracket Included:Yes;Color:Black;Install Difficulty:3;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for 2021-2022 Ford Bronco with 2.7L EcoBoost;SellingPoint02:Dual can system captures blow-by from both the PCV and CCV system;SellingPoint03:Helps prevent fuel dilution and preserves octane rating;SellingPoint04:Direct-fit bracket mounts the catch cans away from engine vibration;SellingPoint05:Includes molded hoses specifically designed for the 2.7L EcoBoost;SellingPoint06:Pre-installed factory-style quick-disconnect fittings for clean installation;SellingPoint07:Sturdy 2.5mm-thick steel bracket withstands rough roads and off-road abuse;SellingPoint08:Catch cans capture blow-by preventing it from fouling the engine oil;SellingPoint09:Internal components can be easily cleaned and reused for a lifetime of service;SellingPoint10:Billet 6061 aluminum cans sealed with Viton O-rings;SellingPoint11:Patent No. US D884 760;SellingPoint12:Mishimoto Lifetime Warranty;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:N/A;TechSpec Catch Can Diameter (in):N/A;TechSpec Chassis Codes:N/A;TechSpec Drain Plug Thread Size:N/A;TechSpec Engine Codes:N/A;TechSpec Height (in):N/A;TechSpec Includes:N/A;TechSpec Inlet:N/A;TechSpec Installation Notes:N/A;TechSpec Material:N/A;TechSpec Note:N/A;TechSpec Outlet:N/A;Title:Baffled Oil Catch Can System fits Ford Bronco 2.7L 2021-2022 |
| PCDB CATEGORY | Engine |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Engine Oil Catch Can Kit |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | |
| VERIFIED FITMENT |
|
Datasheet — not yet published
