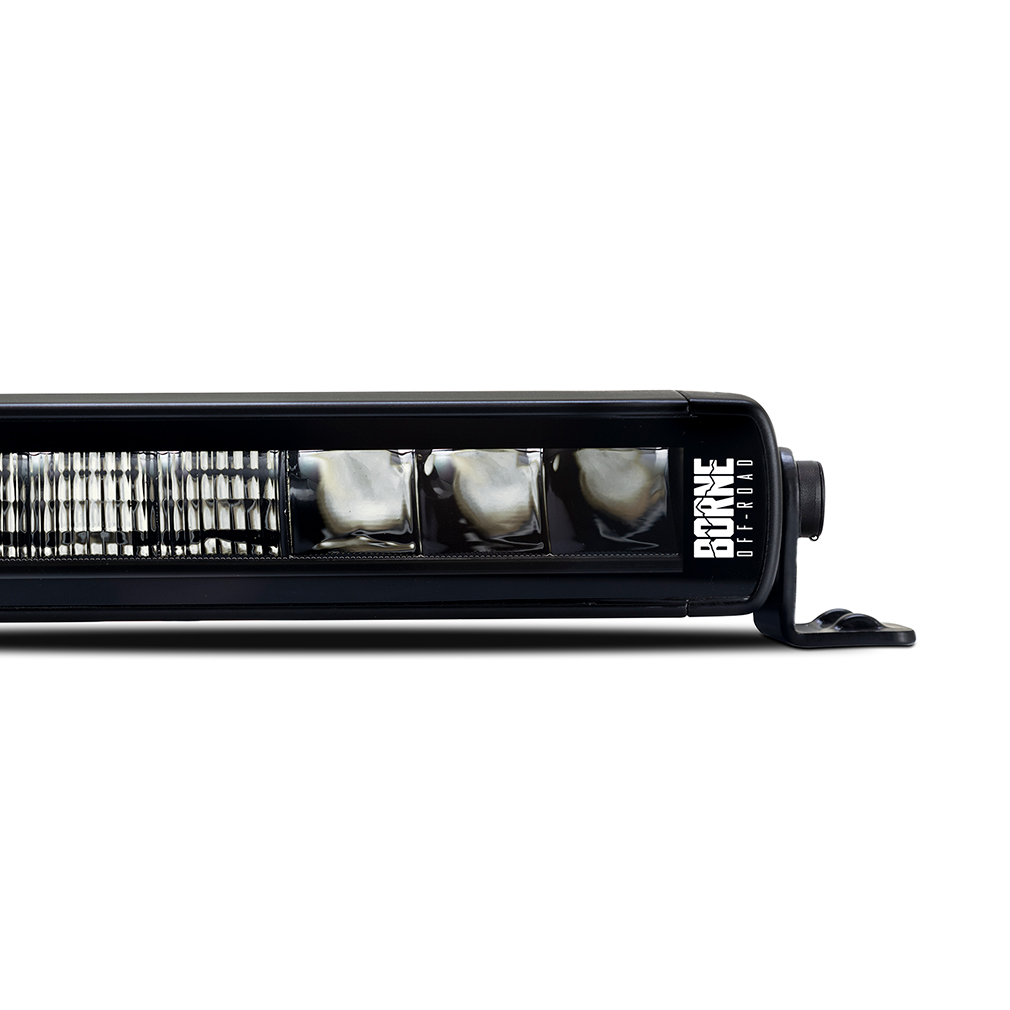

Borne Off-Road BNLT-LB-SS10 Light Bar, Single Row Straight, 10 in
$184
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part
When the trail gets dark or the weather takes a turn for the worse there's nothing more important than being able to see where you're driving. For the ultimate solution in off-road lighting look no further than the Borne Off-Road 10 Light Bar. Boasting a powerful 3 780 raw lumens and 1 320 LUX at 10 meters this light bar turns night into day with a vivid white 5700k color temperature ensuring optimal visibility in any condition while the combo spot and flood beam pattern provides effective lighting both far and near. During the day switch between white and amber daytime running lights for a distinctive look that will set your rig apart from the rest.--Rated for an IP68 level of protection against the elements and an impressive 50 000 hours of operation this light bar is dependable and built to last. The black powder-coated stainless steel mounting bracket offers sharp styling and superior resistance to corrosion for long-lasting durability. The universal design of the mounting bracket allows for numerous potential mounting points with all necessary hardware included for easy vehicle mounting. A sleek snap-on cover is also included to protect your light bar against rock chips and road debris on the highway. Backed by Borne Off-Road's Lifetime Warranty you can count on this light bar to illuminate your path when you need it most.
Specifications
| WIDTH | 4.5 |
|---|---|
| HEIGHT | 5 |
| LENGTH | 15.1 |
| PROP65 | Y |
| WEIGHT | 1.5 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Water Resistance:Water Proof Connector;Bulb Light Output Color:Natural White;Bulb Material Color:Clear;Bulbs Included:Yes;Lens Color:Clear;Housing Finish:Powder Coated;Lens Length:10 IN;Base Color:Black;Bracket Color:Black;Adjustable Brightness:Yes;Base Material:Stainless Steel;Mounting Hardware Included:Yes;Maximum Voltage:14.5 2H;Wiring Harness Included:No;Switch Included:No;Housing Color:Black;Minimum Voltage:12 2H;Bracket Material:Stainless Steel;Brightness:3780 LU;Bulb Technology:LED;Light Beam Pattern:Combination;Wattage:210 99;Beam pattern:Combo;DRL:White/Amber;High brightness mode:12v:3.0Amp 24v:1.5Amp Effective lumen:2703 LUX@10m:1320;Install Difficulty:5;LED type:OSRAM 5700K;Low brightness mode:12v:1.7Amp 24v:0.9Amp Effective lumen:1579 LUX@10m:778;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;Rated Power:45 Watts;Raw lumen:3780;SellingPoint01:Powerful 10” light bar outputs 3 780 raw lumens of light to illuminate the darkest of trails;SellingPoint02:Vivid white daylight 5700K color temperature for optimal visibility;SellingPoint03:DRL can alternate between off white or amber;SellingPoint04:Unique black reflectors give lights a sleek modern look;SellingPoint05:IP68 rating for extreme protection against the elements;SellingPoint06:Equipped with low and high brightness modes;SellingPoint07:Black end caps hide hardware for streamlined appearance;SellingPoint08:Black powder-coated stainless steel mounting bracket offers sharp styling and corrosion resistance;SellingPoint09:Includes universal bracket and all necessary hardware for vehicle mounting;SellingPoint10:Combo spot and flood beam pattern provides lighting both far and near;SellingPoint11:Adjustable brackets allow for superior versatility;SellingPoint12:Features efficient and long-lasting OSRAM™ LEDs;SellingPoint13:Light bar cover included to protect against road debris;SellingPoint14:Works seamlessly with Borne Off-Road Light Wiring Harness [Hyperlink to BNLT-HAR PDD];SellingPoint15:Borne Off-Road Lifetime Warranty;TechSpec Includes:(1) 10” Light Bar w/two brightness modes and two color options for DRL--(1) Universal Mounting Kit--(1) Wiring Harness Pig Tail--(1) BNLT-COV-SS10BK--Lifetime Warranty;TechSpec Material:Stainless Steel;TechSpec Note:N/A;TechSpec Overall Height (in):1.6;TechSpec Overall Length (in):9.7;TechSpec Overall Width (in):2.1;TechSpec Quantity Per Pack:1 |
| PCDB CATEGORY | Electrical Lighting and Body |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Light Bar |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/BNLT-Universal_Install-Guide.pdf |
Datasheet — not yet published
