lighting and electrical
Borne Off-Road BNLT-RL-4T Rock Light (4), Long Harness
$152
Made to order
Universal fit — no vehicle-specific fitment required.
Free freight ≥ $999 · $40 flat below
About this part

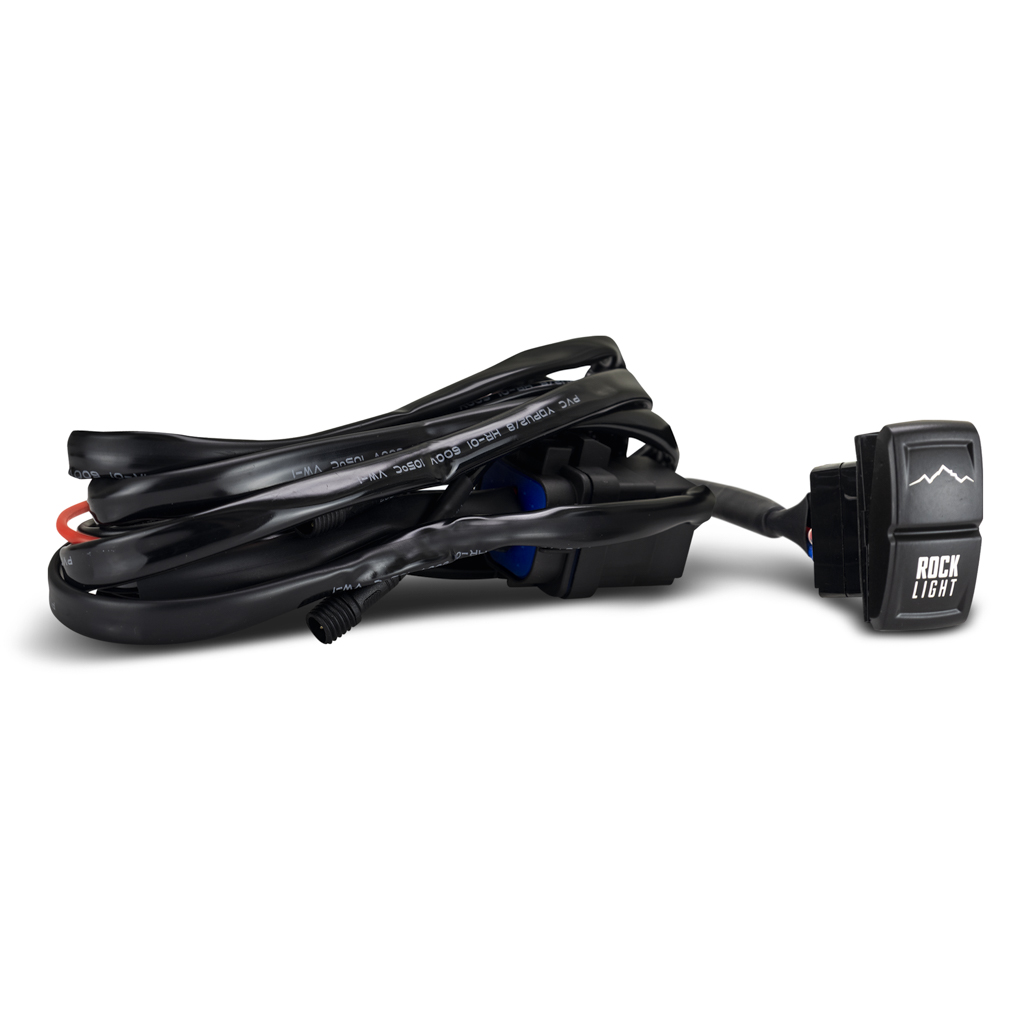

Whether you're rock crawling with a fully-built truck or an ATV the ability to see the terrain is crucial for planning your line of approach. Noticing a hidden obstacle or crevice can mean the difference between a successful outing or a busted control arm. Light up the trail and make your next move with confidence with Borne Off-Road Rock Light Kit.----Offered as a kit of four each OSRAM(TM) ss LED light outputs a powerful 945 raw lumens through a flood beam pattern. The vivid white daylight 5700k color temperature ensures optimal visibility while the IP68 weatherproof rating and 50 000 hour operation lifetime offers dependable performance you can count on. This kit comes with flat and curved universal mounting pad sets a backlit rocker switch and is available with either 16ft or 22ft wiring harness extensions to suit both OHV and automotive applications. Backed by Borne Off-Road's Lifetime Warranty you can count on these rock lights to illuminate your path when you need it most.
Specifications
| WIDTH | 7.3 |
|---|---|
| HEIGHT | 5.3 |
| LENGTH | 8.6 |
| PROP65 | Y |
| WEIGHT | 3.3 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Voltage:12 2H;Lens Color:Clear;Housing Finish:Powder Coated;Lens Width:1.5 IN;Base Length:2.8 IN;Base Width:1.5 IN;Base Color:Black;Bracket Color:Black;Adjustable Brightness:No;Mounting Hardware Included:Yes;Grade Type:Performance;Wiring Harness Included:Yes;Switch Included:Yes;Housing Color:Black;Relay Included:No;Bracket Material:Stainless Steel;Brightness:945 LU;Maximum Amperage Draw:0.52 68;Bulb Technology:LED;Light Beam Pattern:Flood;Wattage:9 99;Amp draw:12v:0.52Amp 24v:0.27Amp;Beam pattern:Flood;Effective lumen:724;Install Difficulty:1;LED type:OSRAM 6500K;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;Rated Power:9 Watts;Raw lumen:945;SellingPoint01:Powerful 945 raw lumens per light illuminates your path;SellingPoint02:Vivid white daylight 5700K color temperature for optimal visibility;SellingPoint03:IP68 rating for extreme protection against the elements;SellingPoint04:Features efficient and long-lasting OSRAM™ LEDs;SellingPoint05:Available with two different wiring harness extension lengths for OHV or automotive applications;SellingPoint06:Includes flat and curved universal mounting pads with multiple wiring path options;SellingPoint07:Includes backlit rocker switch;SellingPoint08:Borne Off-Road Lifetime Warranty;SellingPoint09:N/A;SellingPoint10:N/A;SellingPoint11:N/A;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Includes:(4) Rock Lights w/ flood beam pattern--(4) Universal Mounting Pad Sets--(1) Universal Wiring Harness--(2) 8ft Harness Extensions--(2) 22ft Harness Extensions--Lifetime Warranty;TechSpec Material:Stainless Steel;TechSpec Note:N/A;TechSpec Overall Height (in):1.54;TechSpec Overall Length (in):2.83;TechSpec Overall Width (in):1.54;TechSpec Quantity Per Pack:4;Universal mounting pad set:Flat mounting pad: Rubber Tube mounting pad: Rubber |
| PCDB CATEGORY | Electrical Lighting and Body |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Auxiliary Light |
| VEHICLE SPECIFIC FITMENT | N |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/BNLT-Universal_Install-Guide.pdf |
