Mishimoto BMW M3 Performance Aluminum Fan Shroud with Fan Controller Kit, 2001-2006
$461
Made to order
Add your car with the “Your car” button in the header to check fitment.
Free freight ≥ $999 · $40 flat below
About this part

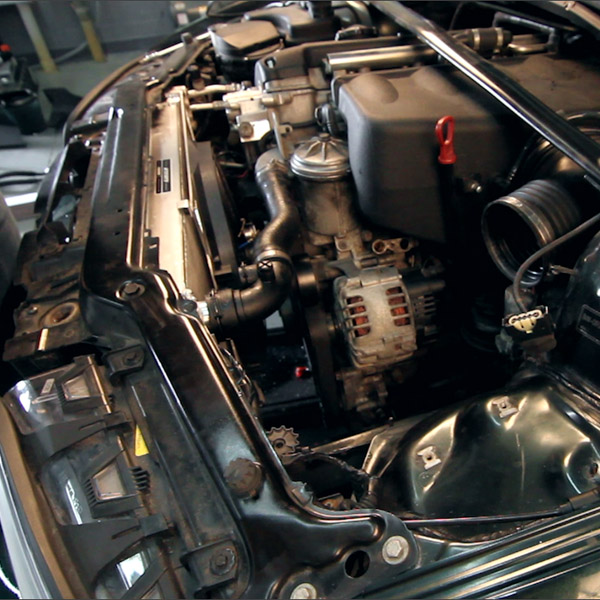

Keep your E46 M3 cool with the Mishimoto Performance Aluminum Fan Shroud Kit! This unique electric fan shroud setup completely eliminates the stock failure-prone mechanical fan. The fan shroud mounts directly to both stock and Mishimoto radiators and includes a 16in high-flow electric fan that produces over 1850 cfm of airflow. Our in-house Dynojet testing has shown a 5 whp gain from 6500-7500 rpm and 1-2 whp gains over a majority of the power band after removing the factory clutch fan. Optionally this kit can include an adjustable fan controller and wiring kit which will provide the user with total control over coolant temperatures. The Mishimoto BMW E46 Fan Shroud Kit includes a removal tool for the clutch fan as well as all hardware required for installation. This fan shroud has a brushed finish that provides a subtle accent for your engine bay. As with all our products this fan shroud kit includes the Mishimoto Lifetime Warranty ensuring superior product quality and craftsmanship.
Specifications
| WIDTH | 18.02 |
|---|---|
| HEIGHT | 18.02 |
| LENGTH | 18.02 |
| PROP65 | Y |
| WEIGHT | 10.73 |
| WARRANTY | Lifetime Warranty |
| EMISSIONS | Emissions Compliance Exempt |
| ATTRIBUTES | Blade Included:Yes;Control Module Included:No;Maximum CFM:1850 2L;Housing Finish:Aluminum;Blade Quantity:10;Blade Length:8 IN;Blade Color:Black;Fan Clutch Mounted:No;Fan Quantity:1;Shroud Included:Yes;Shroud Material:Aluminum;Shroud Color:Silver;Width:3 IN;Mounting Hardware Included:Yes;Height:16.7 IN;Grade Type:Performance;Motor Included:Yes;Hardwired Or Plug-In:Plug-In;Fan 1 Diameter:16 IN;Fan 2 Diameter:16 IN;Blade Material:Plastic;Blade Type:Straight;Control Unit Included:No;Depth:3 IN;Electrical Or Mechanical:Electrical;Fan 1 Blade Quantity:10;Fan 2 Blade Quantity:10;Airflow Rate:1850 2L;Color:Silver;Finish:Brushed Aluminum;Install Difficulty:4;Installation Difficulty:3;Material:Aluminum;OptionLabel:w/ Fan Controller;Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov;Prop 65 Y/N:Y;SellingPoint01:Direct fit for the 2001-2006 BMW E46 M3;SellingPoint02:Dyno-proven gains of up to 5 whp at 6500-7500 rpm;SellingPoint03:Includes high-flow 16-in electric fan that provides over 1850 cfm of airflow;SellingPoint04:Offset fan mounting provides clearance for popular supercharger kits;SellingPoint05:Optional fan controller provides complete control of coolant temperatures at idle;SellingPoint06:Includes fan tool for removal of stock mechanical fan;SellingPoint07:Fits with both stock and Mishimoto radiators;SellingPoint08:Replaces failure-prone stock mechanical fan;SellingPoint09:Brushed aluminum finish;SellingPoint10:Includes all mounting hardware for installation;SellingPoint11:Mishimoto Lifetime Warranty;SellingPoint12:N/A;SellingPoint13:N/A;SellingPoint14:N/A;SellingPoint15:N/A;TechSpec Applications:2001-2006 BMW E46 M3;TechSpec CFM (Each Fan):1850;TechSpec Chassis Codes:E46;TechSpec Engine Codes:S54;TechSpec Height (in):16.7;TechSpec Includes:(1) Aluminum Fan Shroud--(1) 16-inch Mishimoto Slim Electric Fan--Fan Removal Tool--(1) Adjustable Relay--(1) Push-In Radiator Temperature Probe--(1) 1/8-in NPT Temperature Sensor--(1) Wiring Harness--(16) Zip Ties--(4) Wire Straight Crimp Connectors--(1) Wire Butt Crimp Connector--(1) Wire Quick-Splice Connector--(4) Wire Ring Terminals--(2) Wire Spade Connectors--(1) In-line Mini Fuse Holder--(1) 40-in 10 AWG Wire--(1) 7-ft 12 AWG Wire--(1) 12-in Heat Shrink--Mishimoto Lifetime Warranty;TechSpec Length (in):25;TechSpec Note:This fan shroud is compatible with stock radiator. Electric fan comes attached to the shroud. Stock plastic fan shroud components must be removed for installation.----Fans may require additional wiring.----Optional Fan Controller is Mishimoto MMFAN-CNTL-U and includes both NPT and Probe type sensors.;TechSpec Weight (lbs):7;TechSpec Width (in):3;Title:Mishimoto BMW M3 Performance Aluminum Fan Shroud with Fan Controller Kit 2001-2006 |
| PCDB CATEGORY | Belts and Cooling |
| COUNTRY OF ORIGIN | CN |
| PART TERMINOLOGY | Engine Cooling Fan Assembly |
| VEHICLE SPECIFIC FITMENT | Y |
| INSTALLATION INSTRUCTIONS | https://sdda.semadata.org/Standard/Mishimoto Automotive/MMFS-E46-01_InstallGuide.pdf |
Datasheet — not yet published
